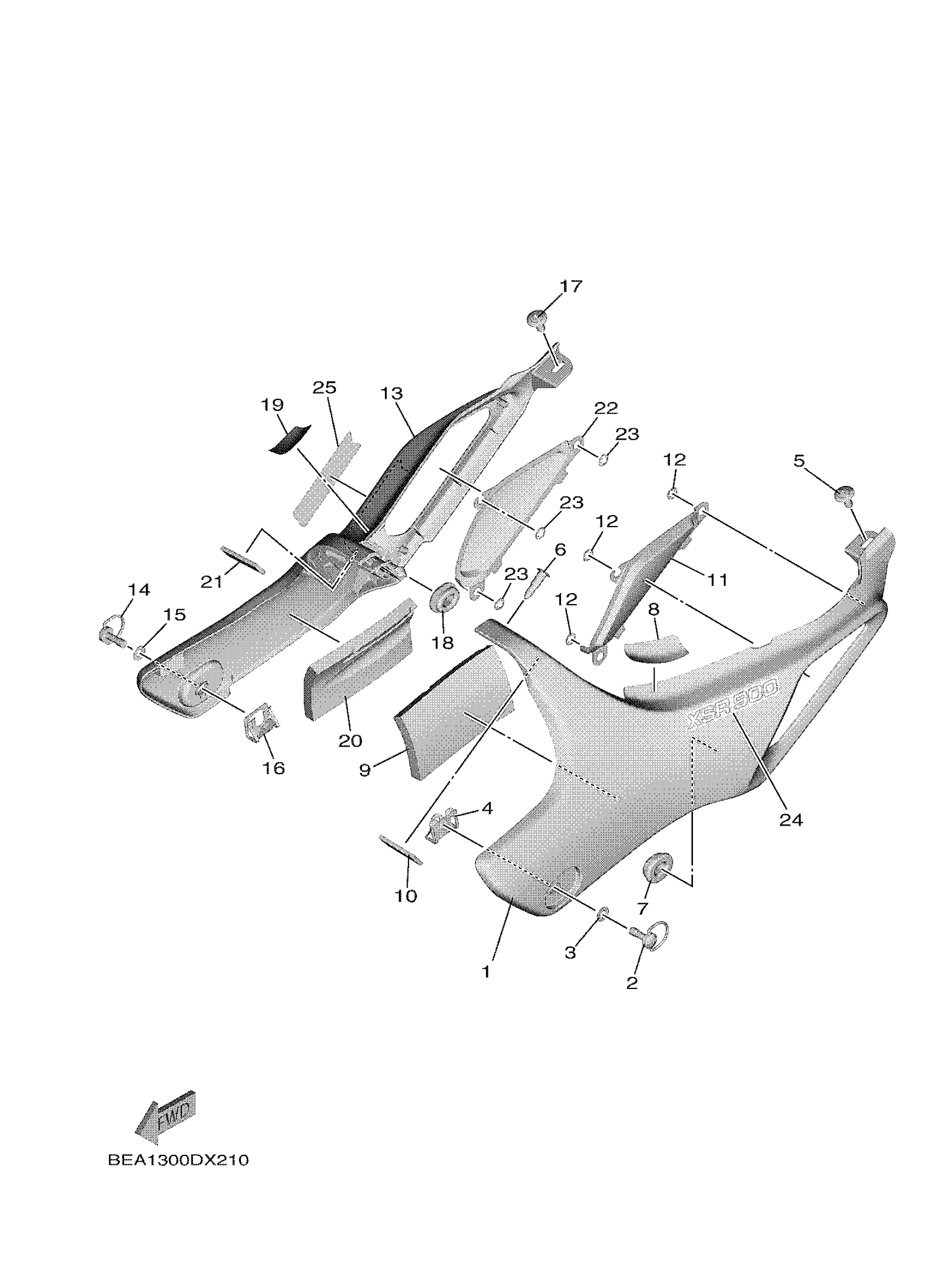

Yamaha XSR900SW (XSR900) D656 2025 SIDE COVER Diagram

#

Description
Price

1

COVER, SIDE 1

BEA-21711-00-P1

Unavailable

2

HEAD

8HG-28386-00-00

$31.99

3

WASHER, SPECIAL 1

8HG-21757-00-00

$1.07

4

PLATE, SPRING

2CR-2177L-00-00

$6.99

5

RIVET

90269-06001-00

$5.60

6

RIVET

90269-07001-00

Unavailable

7

GROMMET(4DN)

90480-01558-00

$4.19

8

SEAL 1

BEA-21732-00-00

$14.99

9

DAMPER, PLATE

90520-08010-00

$3.45

10

DAMPER, LOCATING 1

18A-21778-00-00

$6.99

11

GRILL, AIR OUTLET

BEA-2837V-00-00

Unavailable

12

NUT, SPRING (6E5)

90183-05M02-00

$0.33

13

COVER, SIDE 2

BEA-21721-00-P1

Unavailable

14

HEAD

8HG-28386-00-00

$31.99

15

WASHER, SPECIAL 1

8HG-21757-00-00

$1.07

16

PLATE, SPRING

2CR-2177L-00-00

$6.99

17

RIVET

90269-06001-00

$5.60

18

GROMMET(4DN)

90480-01558-00

$4.19

19

SEAL 1

BEA-21732-00-00

$14.99

20

DAMPER, PLATE

90520-08010-00

$3.45

21

DAMPER, LOCATING 1

18A-21778-00-00

$6.99

22

GRILL, AIR OUTLET

BEA-2837W-00-00

Unavailable

23

NUT, SPRING (6E5)

90183-05M02-00

$0.33

24

EMBLEM

BEA-21737-30-00

Unavailable

25

EMBLEM

BEA-21737-30-00

Unavailable
