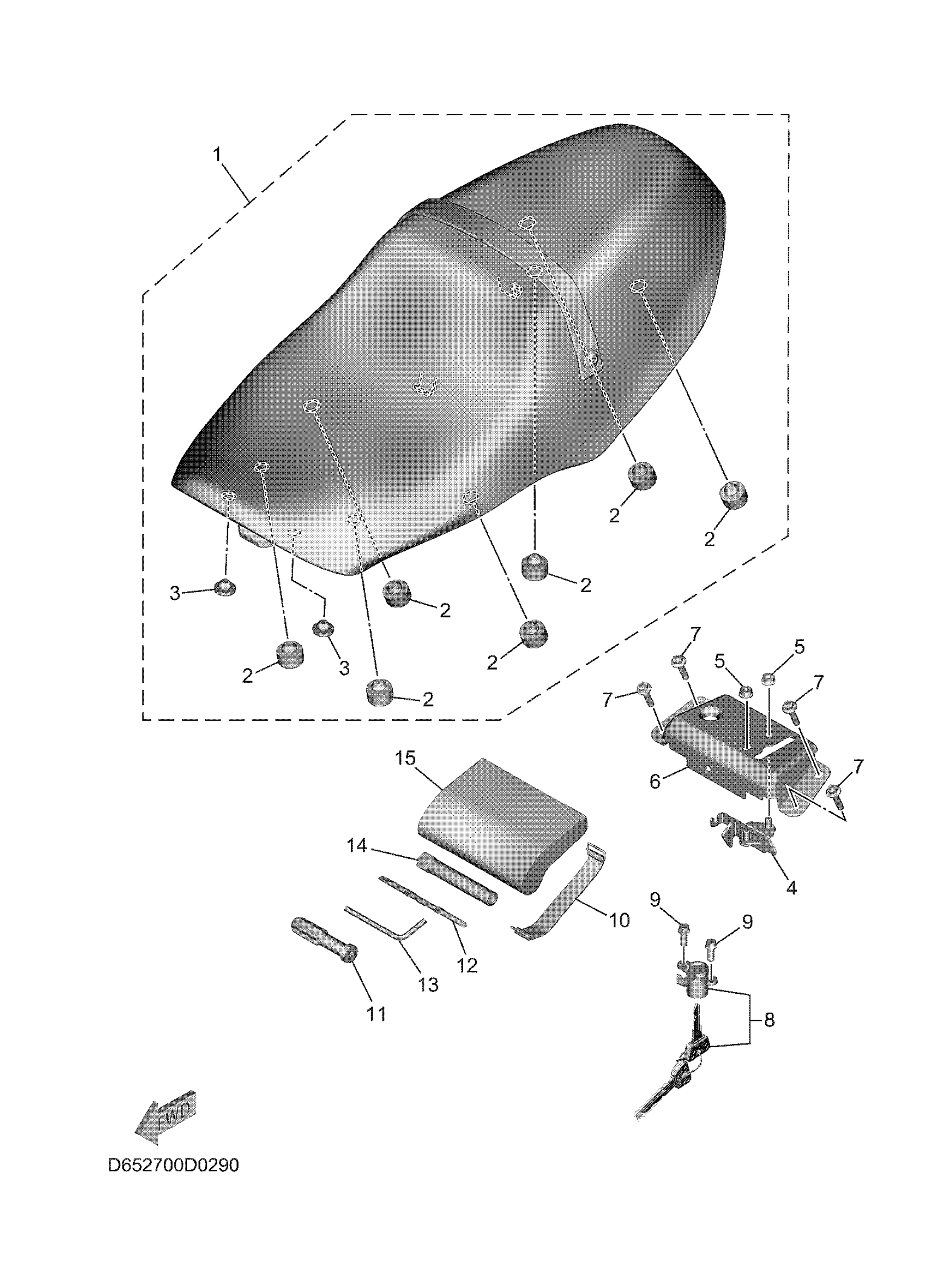

Yamaha XSR900SW (XSR900) D656 2025 SEAT Diagram

#

Description
Price

1

DOUBLE SEAT ASSY

D65-24730-10-00

Unavailable

2

PAD, SEAT

5JW-24741-00-00

$5.09

3

DAMPER, SEAT

3L7-24724-00-00

$2.23

4

SEAT LOCK ASSY

B90-24780-00-00

$24.91

5

NUT, FLANGE

95702-06500-00

$1.95

6

BRACKET, SEAT LOCK

BMG-2478X-00-00

Unavailable

7

BOLT, HEXAGON SOCKET HEAD

90110-06172-00

$7.60

8

ROTOR SET

1RC-W2470-00-00

$67.58

9

BOLT, FLANGE DEEP RECESS

95E32-06016-00

$0.56

10

BAND, BATTERY

2T4-82131-00-00

$7.40

11

GRIP, DRIVER

2H7-28151-00-00

$5.55

12

DRIVER

2GV-28152-00-00

$3.68

13

WRENCH, HEXAGON 8

14B-28164-00-00

$3.52

14

BOX, SPARK PLUG

3D8-2814F-00-00

Unavailable

15

POUCH

4KG-28186-11-00

$6.65
