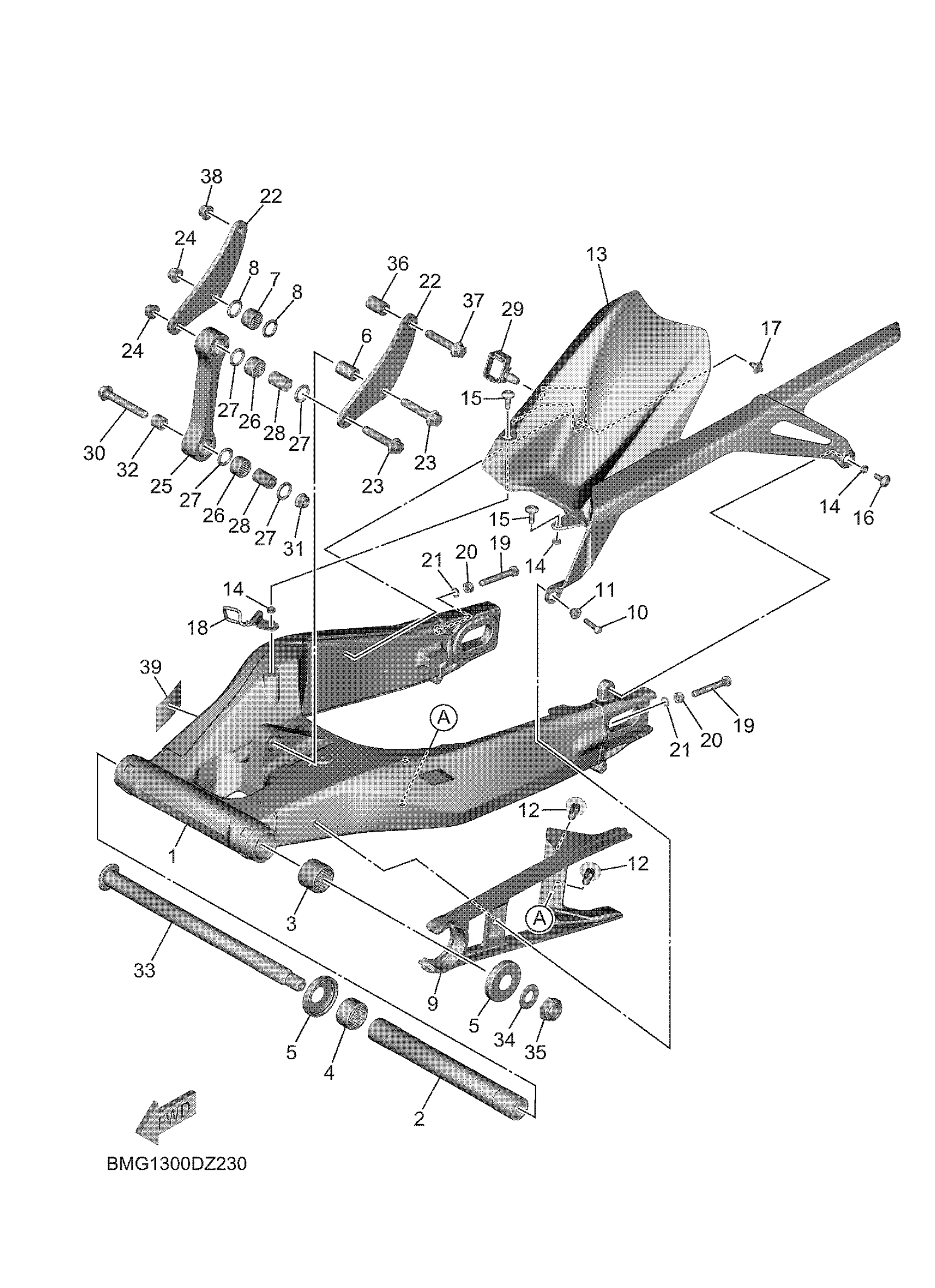

Yamaha XSR900SW (XSR900) D656 2025 REAR ARM Diagram

#

Description
Price

1

REAR ARM COMP.

B5U-22110-00-00

Unavailable

2

COLLAR

90387-22037-00

Unavailable

3

BEARING

93317-330A0-00

$28.89

4

BEARING

93317-330A1-00

$28.17

5

COVER, THRUST 1

5VY-22128-00-00

$12.64

6

COLLAR

90387-1012A-00

$16.59

7

BEARING

93315-31758-00

$32.40

8

OIL SEAL

93109-17071-00

$6.29

9

SEAL, GUARD

B5U-22151-00-00

$26.47

10

BOLT, BUTTON HEAD

92012-06025-00

$2.69

11

C0LLAR (3JB1)

90387-062X0-00

$16.06

12

RIVET

90269-07007-00

$3.14

13

REAR FENDER COMP.

B5U-21650-01-00

Unavailable

14

COLLAR

90387-06106-00

$5.05

15

SCREW

90149-06104-00

$3.57

16

BOLT,HEX. SOCKET BUTTON

90111-06151-00

Unavailable

17

RIVET

90269-07007-00

$3.14

18

STAY

BMG-22538-00-00

Unavailable

19

BOLT

90101-08013-00

Unavailable

20

NUT

95302-08600-00

Unavailable

21

WASHER, PLATE

90201-08052-00

Unavailable

22

ARM, RELAY

BME-2217A-00-00

Unavailable

23

BOLT, FLANGE

90105-10495-00

Unavailable

24

NUT, SELF-LOCKING(JN5)

95607-10200-00

Unavailable

25

ARM 1

BME-2217M-00-00

Unavailable

26

BEARING

93315-31758-00

$32.40

27

OIL SEAL

93109-17071-00

$6.29

28

COLLAR

90387-1012A-00

$16.59

29

CLAMP

90464-20023-00

Unavailable

30

BOLT, FLANGE

90105-10211-00

Unavailable

31

NUT, S/L FLANGE

95602-10200-00

Unavailable

32

COLLAR

90387-10043-00

Unavailable

33

SHAFT, PIVOT

B7N-22141-00-00

Unavailable

34

WASHER, PLATE

90201-18013-00

Unavailable

35

NUT, SELF-LOCKING

90185-18009-00

Unavailable

36

COLLAR

90387-10125-00

Unavailable

37

BOLT, FLANGE

90105-10495-00

Unavailable

38

NUT, SELF-LOCKING(JN5)

95607-10200-00

Unavailable

39

LABEL, TIRE

14B-21668-01-00

Unavailable
