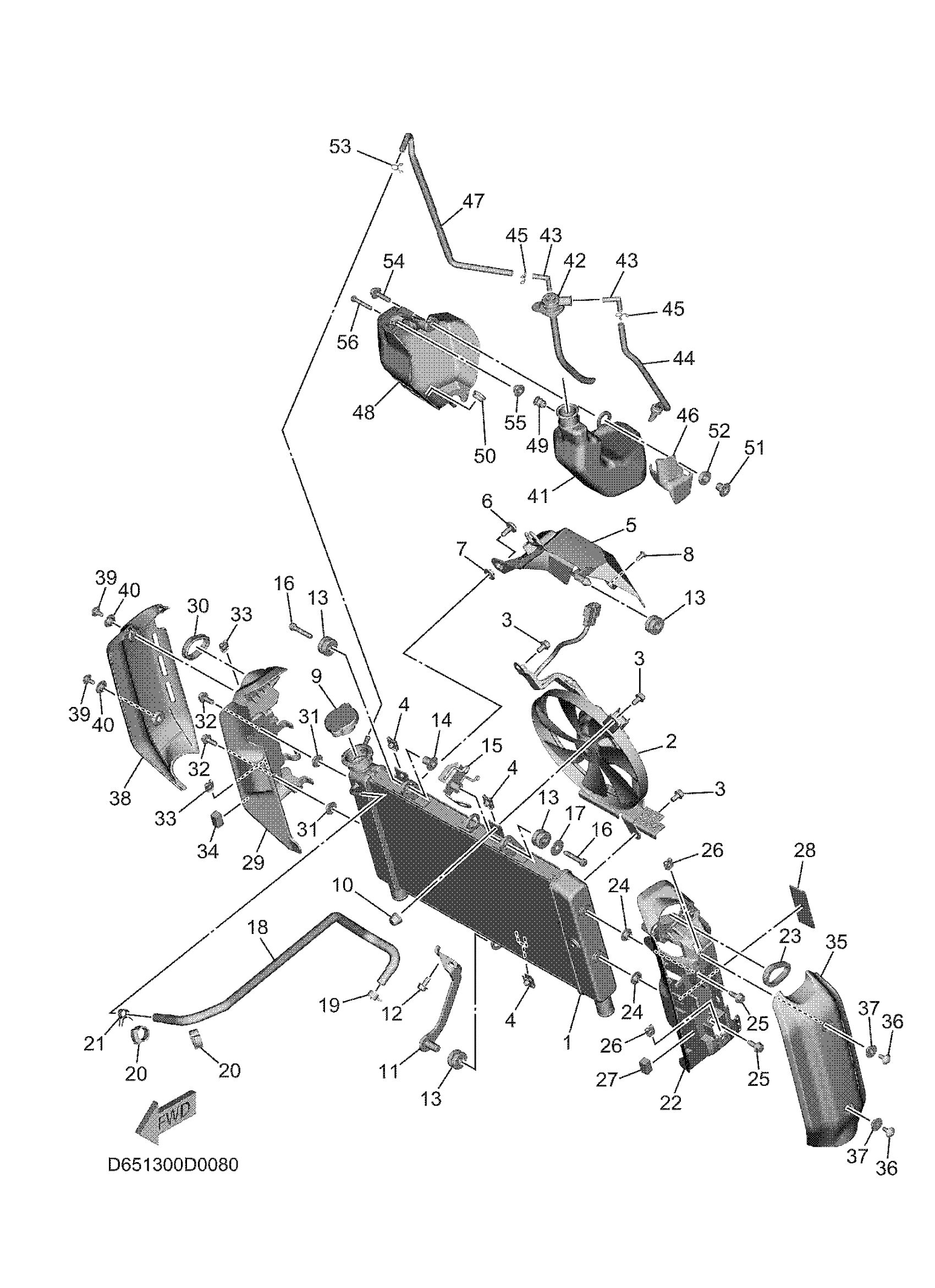

Yamaha XSR900SW (XSR900) D656 2025 RADIATOR & HOSE Diagram

#

Description
Price

1

RADIATOR COMP

BME-12461-00-00

$301.99

2

BLOWER ASSY

BME-12405-01-00

$344.99

3

BOLT, BLOWER HOLDING

5GJ-12675-00-00

$7.99

4

NUT 1

5YP-E2671-00-00

$4.21

5

COVER RADIATOR

B7N-12467-00-00

Unavailable

6

BOLT,HEX. SOCKET BUTTON

90111-06151-00

$3.18

7

COLLAR (3L1)

90387-07717-00

$8.49

8

RIVET

90269-05005-00

Unavailable

9

CAP, RADIATOR

5SL-12462-01-00

$29.99

10

CAP, GREASE NIPPLE

663-45119-01-00

$2.24

11

STAY 2

B7N-12638-01-00

$21.99

12

BLOT, FLANGE DEEP RECESS

95D32-06012-00

$8.49

13

GROMMET (29L)

90480-15363-00

$8.49

14

COLLAR

90387-06158-00

$8.49

15

GUIDE, CABLE 2

BME-26132-00-00

Unavailable

16

BOLT

91342-06030-00

Unavailable

17

WASHER, PLATE

90201-06033-00

Unavailable

18

HOSE 1

B7N-1243A-00-00

Unavailable

19

CLIP (3G0)

90467-10039-00

Unavailable

20

CLAMP

90464-16003-00

Unavailable

21

CLIP (3G0)

90467-10039-00

Unavailable

22

BRACKET 1

BEA-2175T-00-00

Unavailable

23

DAMPER, FLASHER 1

B7N-83321-00-00

Unavailable

24

COLLAR

90387-06170-00

Unavailable

25

BOLT, FLANGE

95817-06016-00

Unavailable

26

NUT, SPRING

90183-050A6-00

Unavailable

27

DAMPER 8

2C0-2847N-00-00

Unavailable

28

DAMPER, LOCATING 1

5P5-21778-00-00

Unavailable

29

BRACKET 2

D65-2175U-00-00

Unavailable

30

DAMPER, FLASHER 1

B7N-83321-00-00

Unavailable

31

COLLAR

90387-06170-00

Unavailable

32

BOLT, FLANGE

95817-06016-00

Unavailable

33

NUT, SPRING

90183-050A6-00

Unavailable

34

DAMPER 8

2C0-2847N-00-00

Unavailable

35

COVER, SIDE 5

BEA-2171E-00-00

Unavailable

36

BOLT,HEX. SOCKET BUTTON

90111-05051-00

Unavailable

37

COLLAR

90387-05035-00

Unavailable

38

COVER, SIDE 6

BEA-2171X-00-00

Unavailable

39

BOLT,HEX. SOCKET BUTTON

90111-05051-00

Unavailable

40

COLLAR

90387-05035-00

Unavailable

41

TANK, RECOVERY

1RC-21871-00-00

Unavailable

42

CAP

B7N-21875-00-00

Unavailable

43

ELBOW

1RC-21828-00-00

Unavailable

44

PIPE, BREATHER

B7N-21826-00-00

Unavailable

45

CLIP (16G)

90467-08021-00

Unavailable

46

PROTECTOR 1

B7N-22825-00-00

Unavailable

47

PIPE 1

B7N-21816-00-00

Unavailable

48

COVER

1RC-2172W-00-00

Unavailable

49

NUT(1KT)

90179-05523-00

Unavailable

50

GROMMET (420)

90480-14153-00

Unavailable

51

COLLAR

90387-06285-00

Unavailable

52

COLLAR

1RC-21749-00-00

Unavailable

53

CLIP (16G)

90467-08021-00

Unavailable

54

BOLT, HEXAGON SOCK

90110-06434-00

Unavailable

55

COLLAR

1RC-21748-00-00

Unavailable

56

BOLT, BUTTON HEAD

92012-05030-00

Unavailable
