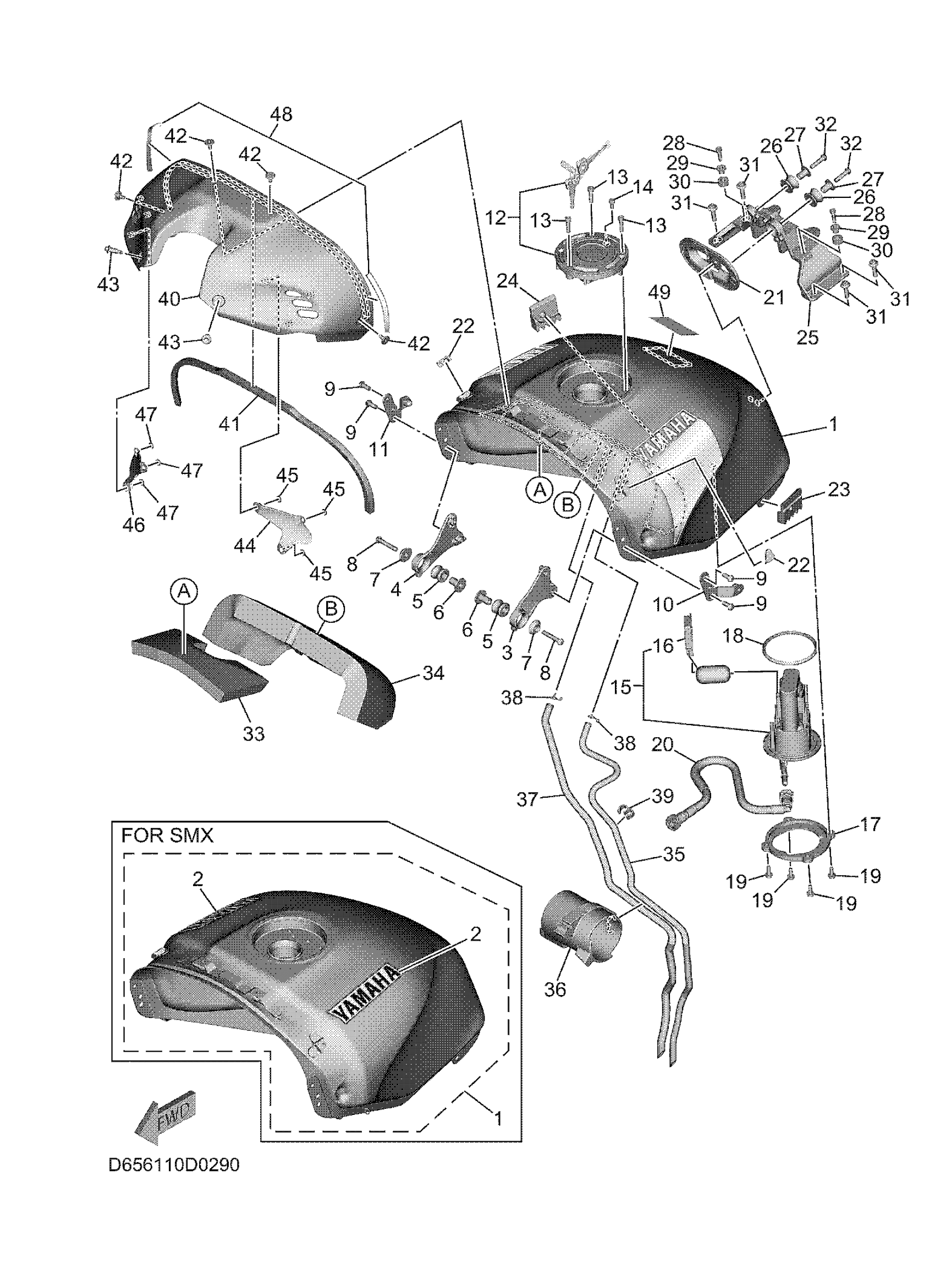

Yamaha XSR900SW (XSR900) D656 2025 FUEL TANK Diagram

#

Description
Price

1

FUEL TANK COMP.

BEA-Y2410-00-09

Unavailable

2

EMBLEM, YAMAHA

99245-00140-00

Unavailable

3

BRACKET, FUEL TANK

BEA-24191-00-00

Unavailable

4

BRACKET, FUEL TANK

BEA-24192-00-00

Unavailable

5

GROMMET

90480-18008-00

$3.71

6

COLLAR

90387-06266-00

$4.61

7

COLLAR

BEA-2412G-00-00

Unavailable

8

BOLT, BUTTON

92017-06035-00

$3.13

9

BOLT, BUTTON HEAD

92017-06014-00

$4.29

10

PLATE, FITTING

BEA-2411F-00-00

Unavailable

11

HOOK TANK FITTING

BEA-2411L-00-00

$13.49

12

CAP ASSY

2CR-24602-01-00

$226.99

13

BOLT, HEXAGON SOCKET HEAD(1FM)

90110-05112-00

$9.49

14

BOLT

91312-05010-00

$5.60

15

FUEL PUMP COMP.

BEA-13907-10-00

$256.99

16

SENDER UNIT ASSY,

BEA-85752-00-00

Unavailable

17

BRACKET, FUEL PUMP

1RC-24491-00-00

Unavailable

18

O-RING

1RC-24486-00-00

Unavailable

19

BOLT, HEXAGON SOCKET HEAD

90110-05028-00

Unavailable

20

PIPE, FUEL 1

B7N-13971-00-00

Unavailable

21

DAMPER, LOCATING 1

BEA-24181-00-00

Unavailable

22

DAMPER

BEA-24665-00-00

Unavailable

23

DAMPER, LOCATING 4

BMG-24184-00-00

Unavailable

24

DAMPER, LOCATING 5

BMG-24185-00-00

Unavailable

25

BRACKET, TANK FITT

BEA-2413Y-00-00

Unavailable

26

GROMMET

3D7-24339-00-00

Unavailable

27

COLLAR

90387-06136-00

Unavailable

28

BOLT(3JK)

97027-05020-00

Unavailable

29

COLLAR

90387-05065-00

Unavailable

30

GROMMET

90480-10258-00

Unavailable

31

BOLT, HEXAGON SOCKET HEAD

90110-06172-00

Unavailable

32

BOLT, BUTTON HEAD

92012-06025-00

Unavailable

33

DAMPER, PLATE 2

BMG-2414J-00-00

Unavailable

34

DAMPER, PLATE 1

BMG-2414H-00-00

Unavailable

35

PIPE 5

BME-24315-10-00

Unavailable

36

DAMPER, LOCATING 3

BME-24183-10-00

Unavailable

37

PIPE 3

D65-24313-00-00

Unavailable

38

CLIP

90467-090A2-00

Unavailable

39

CLAMP(6M7)

90464-09M31-00

Unavailable

40

COVER, TOP

BEA-2171A-00-P1

Unavailable

41

DAMPER, PLATE

90520-15021-00

Unavailable

42

BOLT

90109-05020-00

Unavailable

43

RIVET

90269-07001-00

Unavailable

44

GRILL, AIR INTAKE

BEA-2837N-00-00

Unavailable

45

NUT, SPRING (6E5)

90183-05M02-00

Unavailable

46

GRILL, AIR INTAKE

BEA-2837R-00-00

Unavailable

47

NUT, SPRING (6E5)

90183-05M02-00

Unavailable

49

LABEL, WARNING GENERAL INFO.

29P-2816R-01-00

Unavailable
