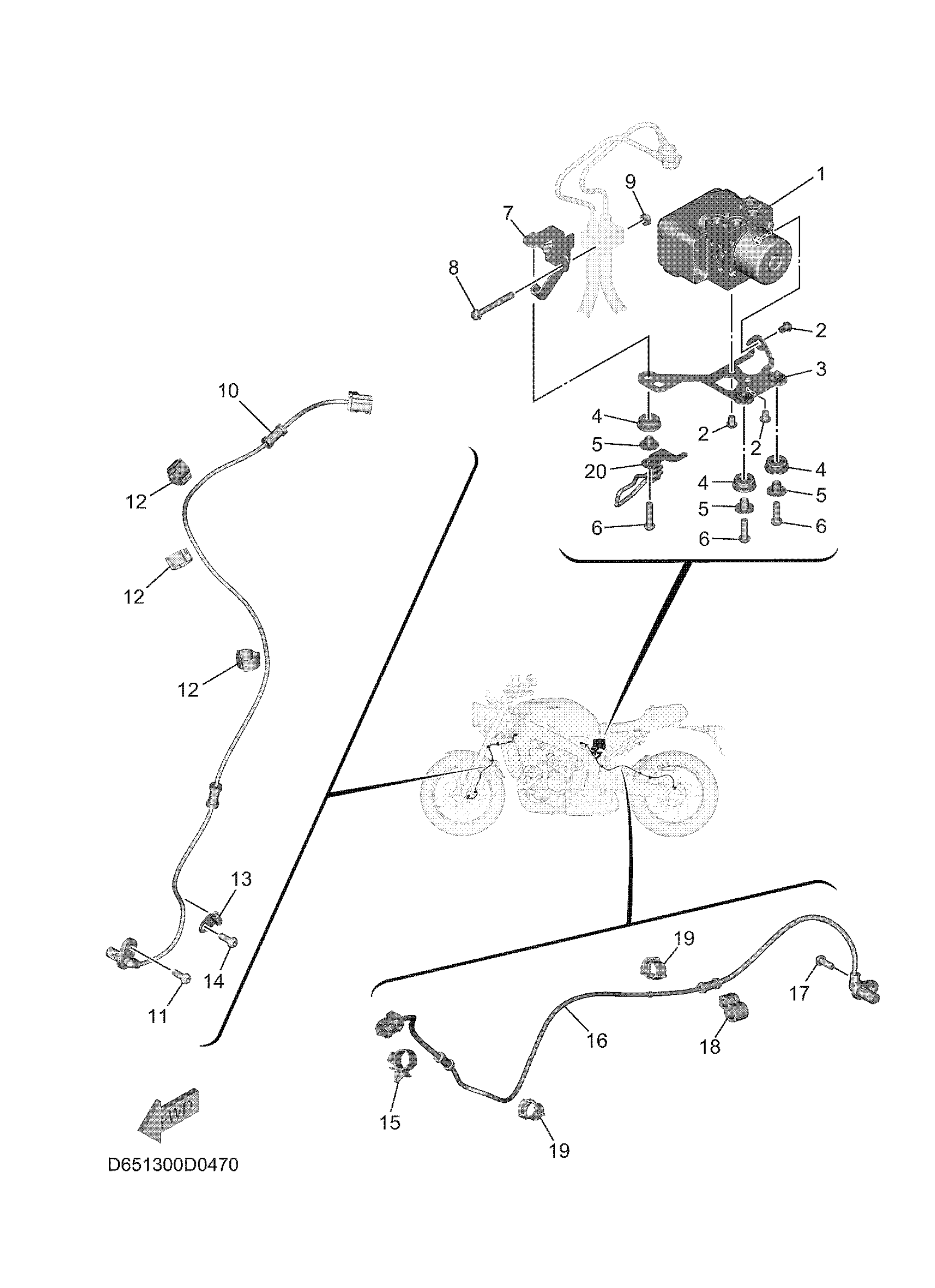

Yamaha XSR900SW (XSR900) D656 2025 ELECTRICAL 3 Diagram

#

Description
Price

1

HYDRAULIC UNIT ASS

BME-85930-08-00

Unavailable

2

BOLT, HEXAGON SOCK

90111-06204-00

Unavailable

3

BRACKET, UNIT

BMG-85991-00-00

Unavailable

4

GROMMET(4FU)

90480-13567-00

$4.99

5

COLLAR

90387-06160-00

Unavailable

6

BOLT, BUTTON HEAD

92012-06025-00

$3.13

7

BRACKET

BMG-85542-00-00

Unavailable

8

BOLT, SMALL FLANGE

95027-06045-00

$3.28

9

NUT, SELF-LOCKING

95617-06100-00

$8.49

10

WHEEL SENSOR ASSY,

BME-85970-00-00

$104.99

11

BOLT, BUTTON HEAD

92017-06014-00

$4.29

12

CLAMP

90464-14010-00

$3.40

13

HOLDER, CABLE

2CR-23317-00-00

Unavailable

14

BOLT, BUTTON HEAD

92017-06014-00

$4.29

15

CLAMP

90464-16006-00

$9.49

16

WHEEL SENSOR ASSY, REAR

BMG-85980-00-00

Unavailable

17

BOLT, BUTTON HEAD(4NK)

92014-06014-00

Unavailable

18

CLAMP(4GL)

90464-10233-00

Unavailable

19

CLAMP

90464-14010-00

$3.40

20

BRACKET, CABLE

BMG-85824-00-00

Unavailable
