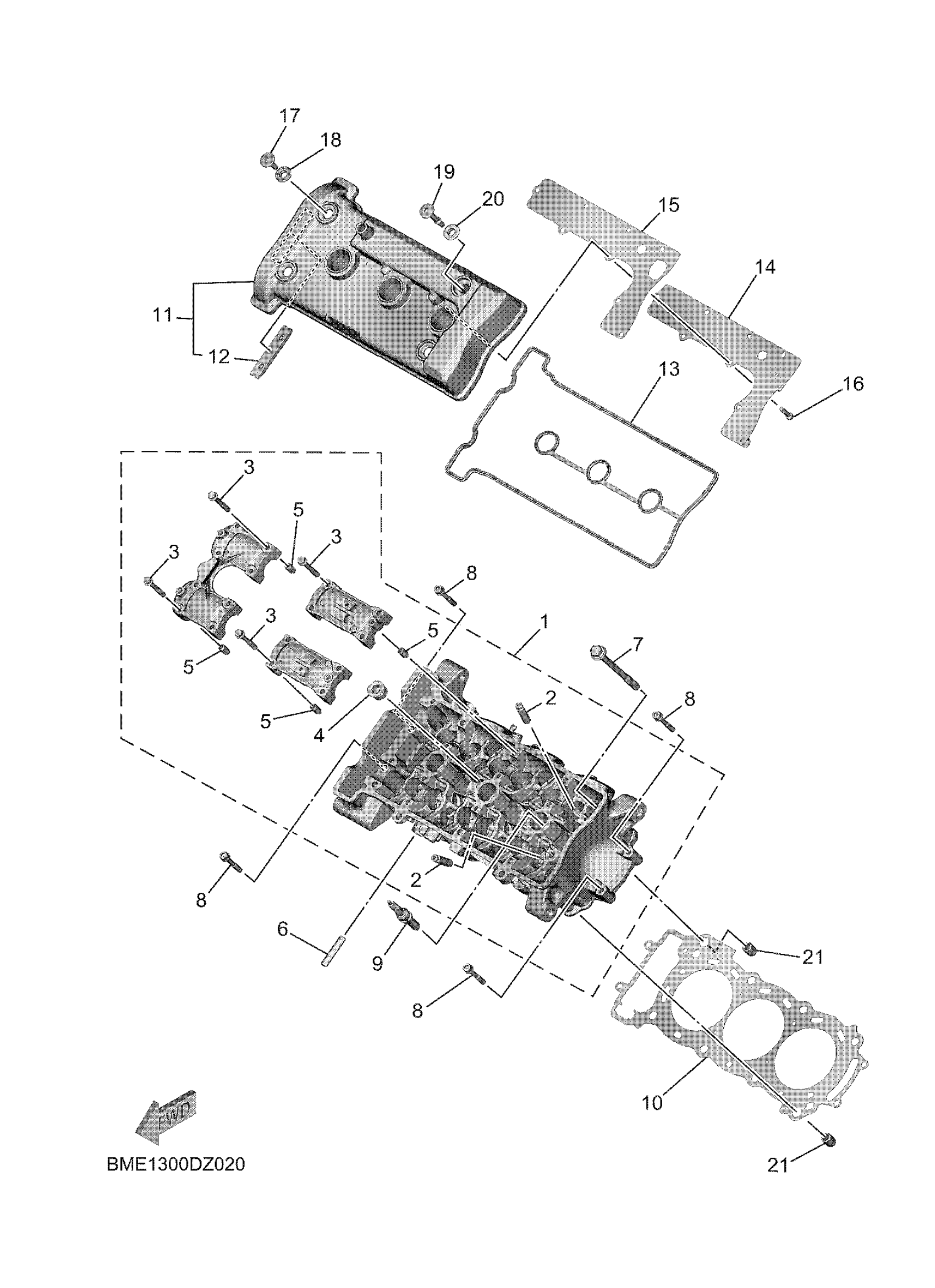

Yamaha XSR900SW (XSR900) D656 2025 CYLINDER HEAD Diagram

#

Description
Price

1

CYLINDER HEAD ASSY

BME-11101-19-00

Unavailable

2

GUIDE, VALVE 1

2C0-11133-11-00

$61.99

3

BOLT, WASHER BASED

90105-06027-00

$7.49

4

PLUG, STRAIGHT SCREW

90340-18002-00

$10.49

5

PIN, DOWEL(3XW)

91808-16023-00

$8.49

6

BOLT, STUD

95612-08625-00

$7.49

7

BOLT WITH WASHER

90119-09019-00

$12.49

8

BOLT

90109-061F7-00

$4.72

9

PLUG, SPARK (NGK LMAR9A-9)

94701-00446-00

Unavailable

10

GASKET CYLINDER HEAD 1

B7N-11181-00-00

$46.99

11

COVER, CYLINDER HE

B7N-11191-10-00

Unavailable

12

GUIDE, STOPPER 2

5BE-12241-01-00

$29.99

13

GASKET, HEAD COVER

B7N-11193-00-00

$18.99

14

PLATE, BREATHER

B7N-11165-00-00

Unavailable

15

GASKET, BREATHER C

B7N-11169-00-00

Unavailable

16

SCREW

90149-05038-00

Unavailable

17

BOLT(4BP)

90109-066F0-00

Unavailable

18

RUBBER, MOUNT 1

5VY-1111G-00-00

Unavailable

19

BOLT

90109-06271-00

Unavailable

20

RUBBER, MOUNT 1

5VY-1111G-00-00

Unavailable

21

PIN, DOWEL

99530-12016-00

Unavailable
