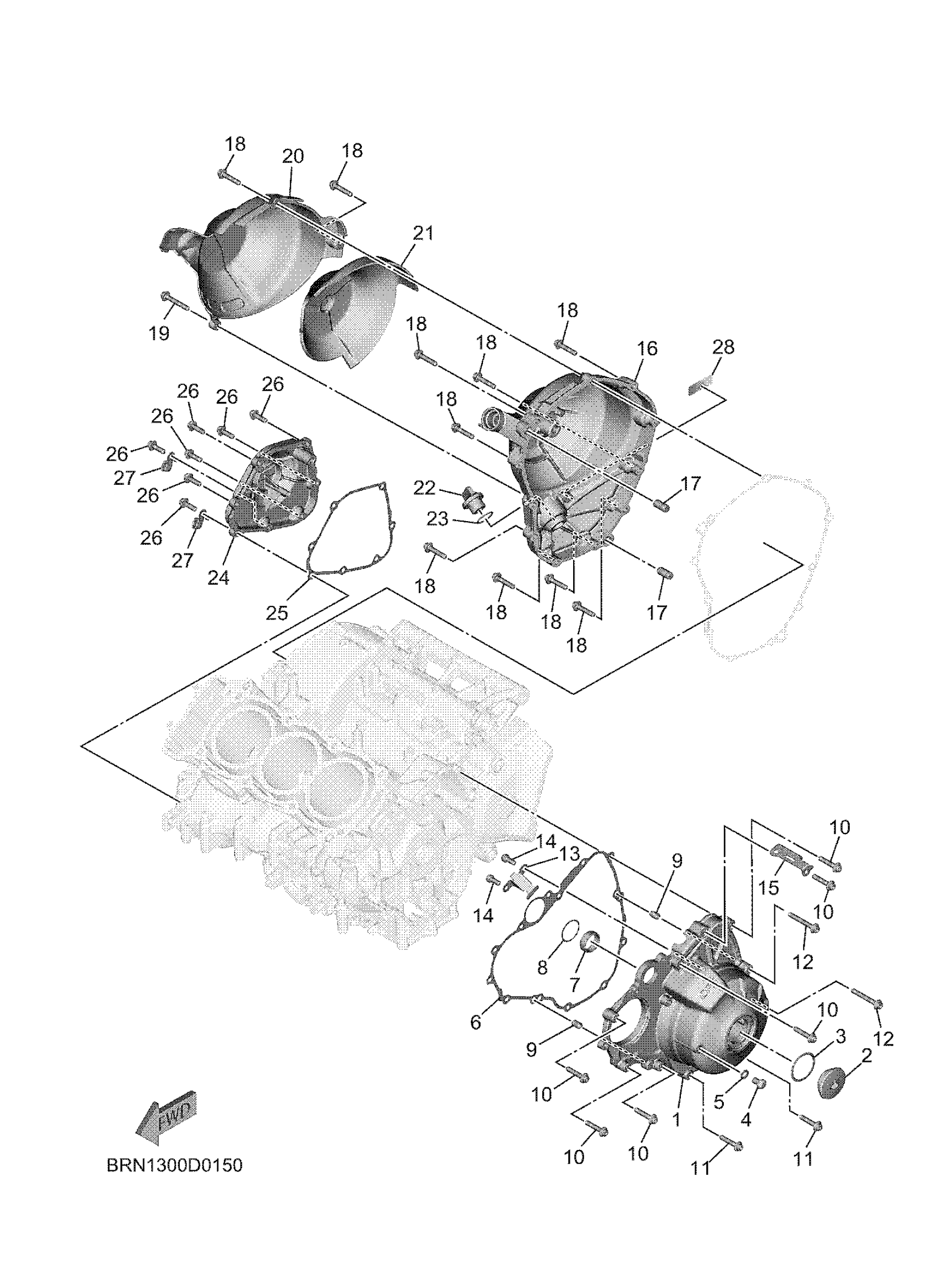

Yamaha XSR900SW (XSR900) D656 2025 CRANKCASE COVER Diagram

#

Description
Price

1

COVER, CRANKCASE 1

BME-15411-10-00

$131.99

2

PLUG, STRAIGHT SCREW

90340-36005-00

$31.99

3

O-RING

93210-35804-00

$0.48

4

BOLT, BUTTON HEAD

92017-08012-00

$8.49

5

. GASKET

90430-08143-00

Unavailable

6

GASKET, CRANKCASE COVER 1

BD5-15451-01-00

$17.99

7

PIPE, WATER

1RC-12564-00-00

$6.99

8

O-RING

93210-28543-00

Unavailable

9

PIN, DOWEL

99530-08012-00

Unavailable

10

BOLT, HEXAGON SOCKET HEAD

90110-06388-00

$5.60

11

BOLT, HEXAGON SOCKET HEAD

90110-06388-00

$5.60

12

BOLT, HEXAGON SOCKET HEAD

90110-06394-00

$2.17

13

CLAMP 2

1RC-15484-00-00

$5.49

14

BOLT (33M)

91312-06014-00

$5.60

15

BRACKET

B7N-14867-00-00

$4.51

16

COVER, CRANKCASE 2

B7N-15421-10-00

Unavailable

17

PIN, DOWEL(72M)

93610-20189-00

Unavailable

18

BOLT, HEXAGON SOCKET HEAD

90110-06388-00

$5.60

19

BOLT, HEXAGON SOCKET HEAD

90110-06321-00

Unavailable

20

PROTECTOR, COVER

BEA-15499-00-00

Unavailable

21

DAMPER

B7N-15789-00-00

Unavailable

22

PLUG, OIL

5GJ-15363-10-00

Unavailable

23

O-RING (646)

93210-19123-00

Unavailable

24

COVER, OIL PUMP

B7N-15416-10-00

Unavailable

25

GASKET, OIL PUMP COVER 1

B7N-15456-01-00

Unavailable

26

BOLT, HEXAGON SOCKET HEAD

90110-06396-00

Unavailable

27

CLAMP 2

BME-15484-00-00

Unavailable

28

OIL, LABEL

B5Y-1548B-00-00

Unavailable
