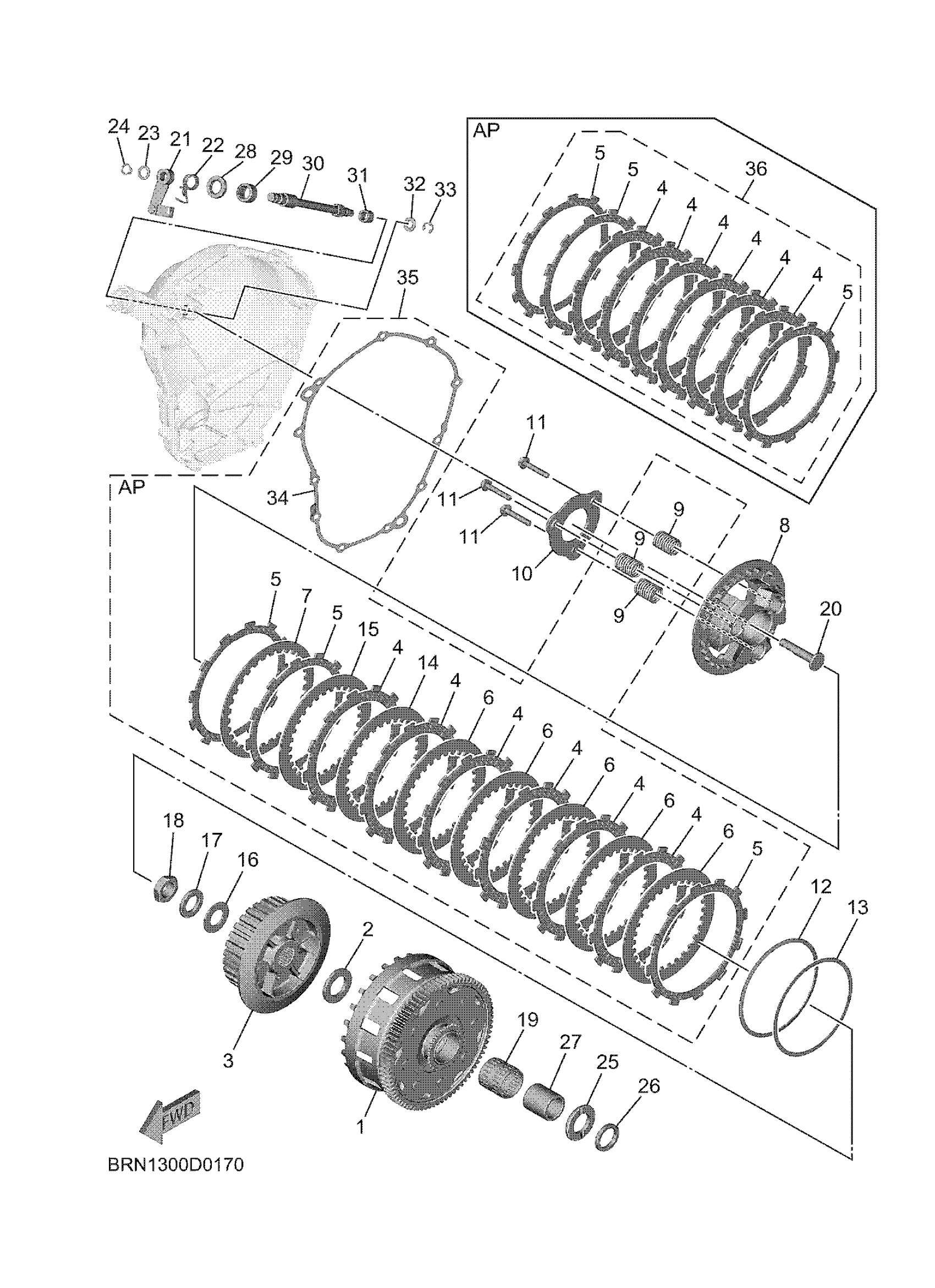

Yamaha XSR900SW (XSR900) D656 2025 CLUTCH Diagram
#
Description
Price
14
PLATE, CLUTCH 2
4B1-16325-00-00
Unavailable
14
PLATE, CLUTCH 1
BR9-16324-10-00
Unavailable
15
PLATE, CLUTCH 2
4B1-16325-00-00
Unavailable
15
PLATE, CLUTCH 1
BR9-16324-10-00
Unavailable
16
WASHER, PLATE
90201-20030-00
Unavailable
17
WASHER, CONICAL SPRING
90208-20001-00
Unavailable
18
NUT
90179-20020-00
Unavailable
19
BEARING
93310-33277-00
Unavailable
20
ROD, PUSH 1
B7N-16356-00-00
Unavailable
21
PUSH LEVER ASSY
1RC-16340-01-00
Unavailable
22
SPRING, TORSION
90508-18051-00
Unavailable
23
WASHER, PLATE
90201-10029-00
Unavailable
24
CIRCLIP(10W)
99009-10400-00
Unavailable
25
PLATE, THRUST 2
B7N-16164-00-00
Unavailable
26
PLATE, THRUST 2
2C0-16164-00-00
Unavailable
27
SPACER 1
1RC-16181-00-00
Unavailable
28
OIL SEAL (3X3)
93102-15212-00
Unavailable
29
BEARING
93315-21570-00
Unavailable
30
AXLE, PUSH LEVER
5VY-16382-10-00
Unavailable
31
BEARING
93317-11096-00
Unavailable
32
WASHER(6TA)
92907-08600-00
Unavailable
33
CIRCLIP
99080-07600-00
Unavailable
34
GASKET, CRANKCASE COVER 2
B7N-15461-01-00
Unavailable
35
CLUTCH PLATE KIT
B7N-W001G-10-00
Unavailable
36
FRICTION PLATE KIT
B7N-W001M-00-00
Unavailable
