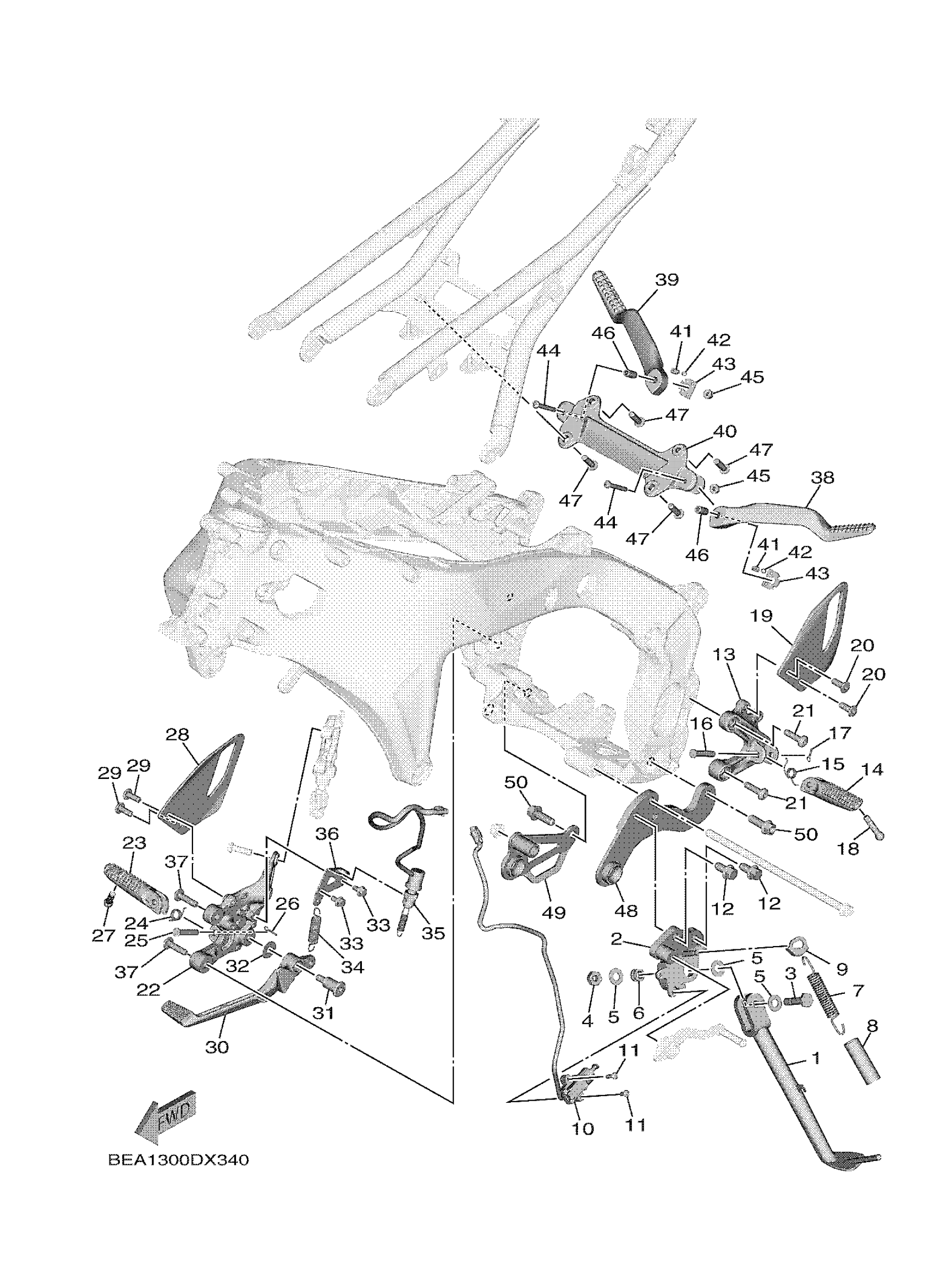

Yamaha XSR900RW (XSR900) BEAF 2024 STAND & FOOTREST Diagram

#

Description
Price

1

STAND, SIDE

B7N-27311-00-00

$55.99

2

BRACKET, SIDE STAN

B7N-27321-00-00

$111.99

3

BOLT

90101-10034-00

$8.49

4

NUT, SELF-LOCKING

90185-10012-00

$9.49

5

WASHER, PLATE

90201-10075-00

$3.28

6

COLLAR

90387-10020-00

$17.99

7

SPRING TENSION

90506-26014-00

$8.49

8

HOSE (L60)

90445-197J2-00

$4.61

9

LINK, SIDE STAND

B7N-27315-00-00

$2.22

10

SWITCH, SIDE STAND

B7N-82566-01-00

$42.99

11

SCREW

90149-05038-00

$2.17

12

BOLT, FLANGE

95817-10020-00

$8.49

13

BRACKET 2

BEA-27442-00-00

$95.99

14

FOOTREST 3

B7N-27451-00-00

Unavailable

15

SPRING, TORSION

90508-18134-00

$8.49

16

PIN, CLEVIS

91702-08040-00

Unavailable

17

PIN, COTTER

91490-25020-00

Unavailable

18

BOLT

90109-08202-00

Unavailable

19

PLATE 1

BEA-27445-00-00

Unavailable

20

BOLT,HEX. SOCKET BUTTON

90111-08093-00

Unavailable

21

BOLT (3XF1)

90110-08220-00

Unavailable

22

BRACKET 3

BEA-27443-00-00

Unavailable

23

FOOTREST 4

B7N-27461-00-00

Unavailable

24

SPRING, TORSION

90508-18135-00

Unavailable

25

PIN, CLEVIS

91702-08040-00

Unavailable

26

PIN, COTTER

91490-25020-00

Unavailable

27

BOLT

90109-08202-00

Unavailable

28

PLATE 2

BEA-27446-00-00

Unavailable

29

BOLT,HEX. SOCKET BUTTON

90111-08093-00

Unavailable

30

PEDAL, BRAKE

BEA-27211-00-00

Unavailable

31

BOLT

4C8-27434-10-00

Unavailable

32

WASHER 6154275100

90201-08103-00

Unavailable

33

BOLT, FLANGE DEEP

95D02-06012-00

Unavailable

34

SPRING, TENSION

90506-18022-00

Unavailable

35

STOP SWITCH ASSY

BAM-82530-01-00

Unavailable

36

STAY STOP SWITCH

B7N-2144G-00-00

Unavailable

37

BOLT (3XF1)

90110-08220-00

Unavailable

38

FOOTREST, REAR 1

BEA-27431-00-00

Unavailable

39

FOOTREST, REAR 2

BEA-27441-00-00

Unavailable

40

BRACKET 4

BEA-2741L-00-00

Unavailable

41

SPRING, COMPRESSION

90501-15001-00

Unavailable

42

BALL

93501-04011-00

Unavailable

43

WASHER, SPECIAL

5JJ-27437-01-00

Unavailable

44

BOLT, BUTTON HEAD

92017-06040-00

Unavailable

45

NUT,SELF-LOCKING

95607-06200-00

Unavailable

46

COLLAR (8H9)

90387-06697-00

Unavailable

47

SCREW

90149-08058-00

Unavailable

48

STAY, MUFFLER 1

B7N-21445-10-00

Unavailable

49

STAY, MUFFLER 2

B7N-21446-10-00

Unavailable

50

BOLT, FLANGE

90105-10189-00

Unavailable
