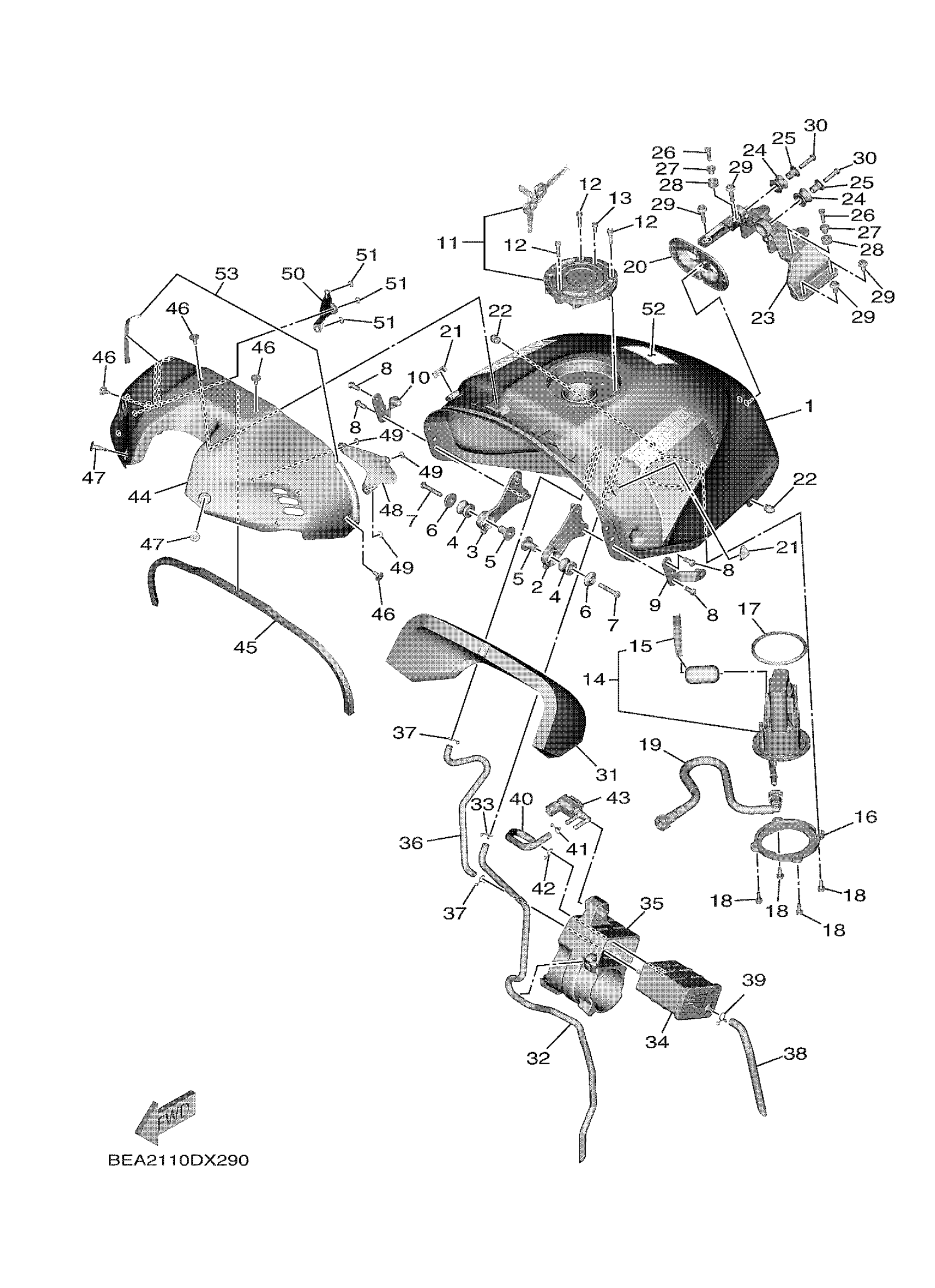

Yamaha XSR900RW (XSR900) BEAF 2024 FUEL TANK 2 (FOR CAL) Diagram

#

Description
Price

1

FUEL TANK COMP.

BEA-Y2410-00-06

$752.99

2

BRACKET, FUEL TANK

BEA-24191-00-00

Unavailable

3

BRACKET, FUEL TANK

BEA-24192-00-00

Unavailable

4

GROMMET

90480-18008-00

$3.71

5

COLLAR

90387-06266-00

$4.61

6

COLLAR

BEA-2412G-00-00

Unavailable

7

BOLT, BUTTON

92017-06035-00

$3.13

8

BOLT, BUTTON HEAD

92017-06014-00

$4.29

9

PLATE, FITTING

BEA-2411F-00-00

Unavailable

10

HOOK TANK FITTING

BEA-2411L-00-00

$13.49

11

CAP ASSY

2CR-24602-01-00

$226.99

12

BOLT, HEXAGON SOCKET HEAD(1FM)

90110-05112-00

$9.49

13

BOLT

91312-05010-00

$5.60

14

FUEL PUMP COMP.

BEA-13907-00-00

Unavailable

15

SENDER UNIT ASSY,

BEA-85752-00-00

Unavailable

16

BRACKET, FUEL PUMP

1RC-24491-00-00

Unavailable

17

O-RING

1RC-24486-00-00

Unavailable

18

BOLT, HEXAGON SOCKET HEAD

90110-05028-00

Unavailable

19

PIPE, FUEL 1

B7N-13971-00-00

Unavailable

20

DAMPER, LOCATING 1

BEA-24181-00-00

Unavailable

21

DAMPER

BEA-24665-00-00

Unavailable

22

PLUG

90338-07014-00

Unavailable

23

BRACKET, TANK FITT

BEA-2413Y-00-00

Unavailable

24

GROMMET

3D7-24339-00-00

Unavailable

25

COLLAR

90387-06136-00

Unavailable

26

BOLT(3JK)

97027-05020-00

Unavailable

27

COLLAR

90387-05065-00

Unavailable

28

GROMMET

90480-10258-00

Unavailable

29

BOLT, HEXAGON SOCKET HEAD

90110-06172-00

Unavailable

30

BOLT, BUTTON HEAD

92012-06025-00

Unavailable

31

DAMPER, PLATE 1

B7N-2414H-00-00

Unavailable

32

PIPE 5

B7N-24315-00-00

Unavailable

33

CLIP

90467-090A2-00

Unavailable

34

CANISTER ASSY

B7N-24170-00-00

Unavailable

35

DAMPER, LOCATING 3

B7N-24183-00-00

Unavailable

36

PIPE 3

B7N-24313-10-00

Unavailable

37

CLIP

90467-090A2-00

Unavailable

38

PIPE 6

B7N-24316-00-00

Unavailable

39

CLIP

90467-100A1-00

Unavailable

40

PIPE 7

B7N-24317-10-00

Unavailable

41

CLIP

90467-090A2-00

Unavailable

42

CLIP

90467-090A2-00

Unavailable

43

SOLENOID VALVE ASS

B7N-86120-00-00

Unavailable

44

COVER, TOP

BEA-2171A-00-GE

Unavailable

45

DAMPER, PLATE

90520-15021-00

Unavailable

46

BOLT

90109-05020-00

Unavailable

47

RIVET

90269-07001-00

Unavailable

48

GRILL, AIR INTAKE

BEA-2837N-00-00

Unavailable

49

NUT, SPRING (6E5)

90183-05M02-00

Unavailable

50

GRILL, AIR INTAKE

BEA-2837R-00-00

Unavailable

51

NUT, SPRING (6E5)

90183-05M02-00

Unavailable

52

LABEL, WARNING GENERAL INFO.

29P-2816R-01-00

Unavailable

53

GRAPHIC SET 1

BEA-24230-20-00

Unavailable
