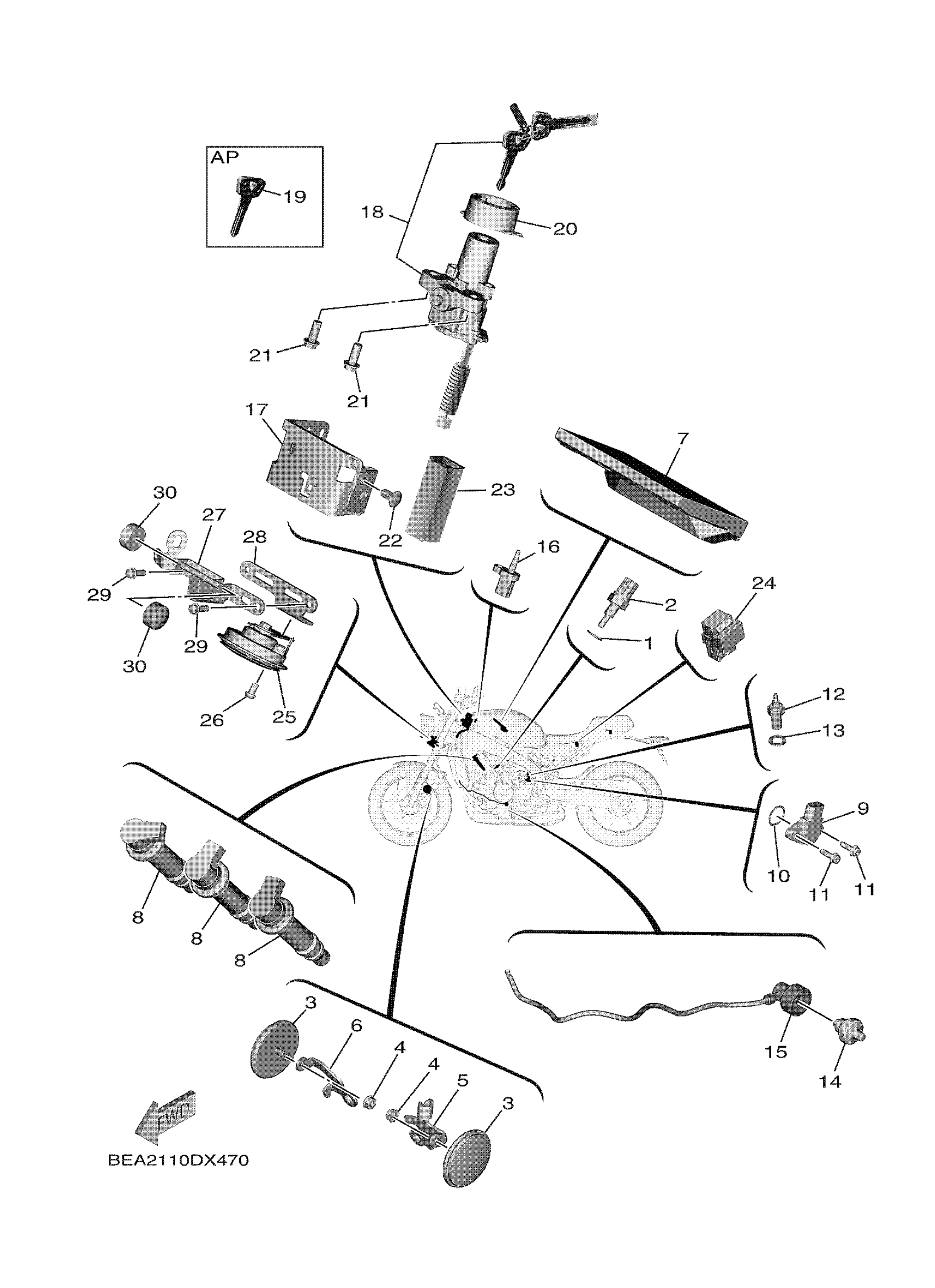

Yamaha XSR900RW (XSR900) BEAF 2024 ELECTRICAL 2 Diagram

#

Description
Price

1

GASKET

90430-10004-00

$7.49

2

THERMO UNIT

52B-H3591-00-00

$34.99

3

REFLECTOR, FRONT 1

4AG-85111-00-00

$15.49

4

NUT, FLANGE

95702-06500-00

$2.39

5

BRACKET, REFLECTOR

B7N-85112-00-00

Unavailable

6

BRACKET, REFLECTOR

B7N-85122-00-00

$9.49

7

ENGINE CONTROL UNIT ASSY

BEA-8591A-61-00

Unavailable

8

IGNITION COIL ASSY

1WS-82310-00-00

$110.99

9

SENSOR, GEAR POSITION

2CR-85899-10-00

$113.99

10

O-RING

93210-17008-00

Unavailable

11

BOLT, HEXAGON SOCKET HEAD

90110-05038-00

$7.49

12

NEUTRAL SWITCH ASSY

3GB-82540-01-00

$58.99

13

GASKET (1KH,1.0T)

90430-10148-00

$5.60

14

OIL PRESSURE SWITCH ASSY

1WS-82504-01-00

$70.99

15

WIRE, SUB LEAD

B3L-82509-11-00

Unavailable

16

SENSOR, AIR TEMPERATURE

5YU-85886-00-00

Unavailable

17

COVER, CONNECTOR

B7N-82599-01-00

Unavailable

18

MAIN SWITCH STEERI

BEA-82501-11-00

Unavailable

19

BLANK KEY

4BH-82511-09-00

Unavailable

20

COVER, MAIN SWITCH

3P6-82568-00-00

Unavailable

21

BOLT, WASHER BASED(3JP)

90105-081A1-00

Unavailable

22

RIVET

90269-07015-00

Unavailable

23

PROTECTER, WIRE HARNESS

B7N-82589-01-00

Unavailable

24

RELAY ASSY

5DM-81950-01-00

Unavailable

25

HORN

BEA-83371-00-00

Unavailable

26

BOLT, BUTTON HEAD

92017-06010-00

Unavailable

27

STAY, SETTING

B7N-8431R-00-00

Unavailable

28

BRACKET, HORN

BEA-23377-00-00

Unavailable

29

BOLT, FLANGE DEEP RECESS

95E32-06020-00

Unavailable

30

DAMPER

B7N-84527-00-00

Unavailable
