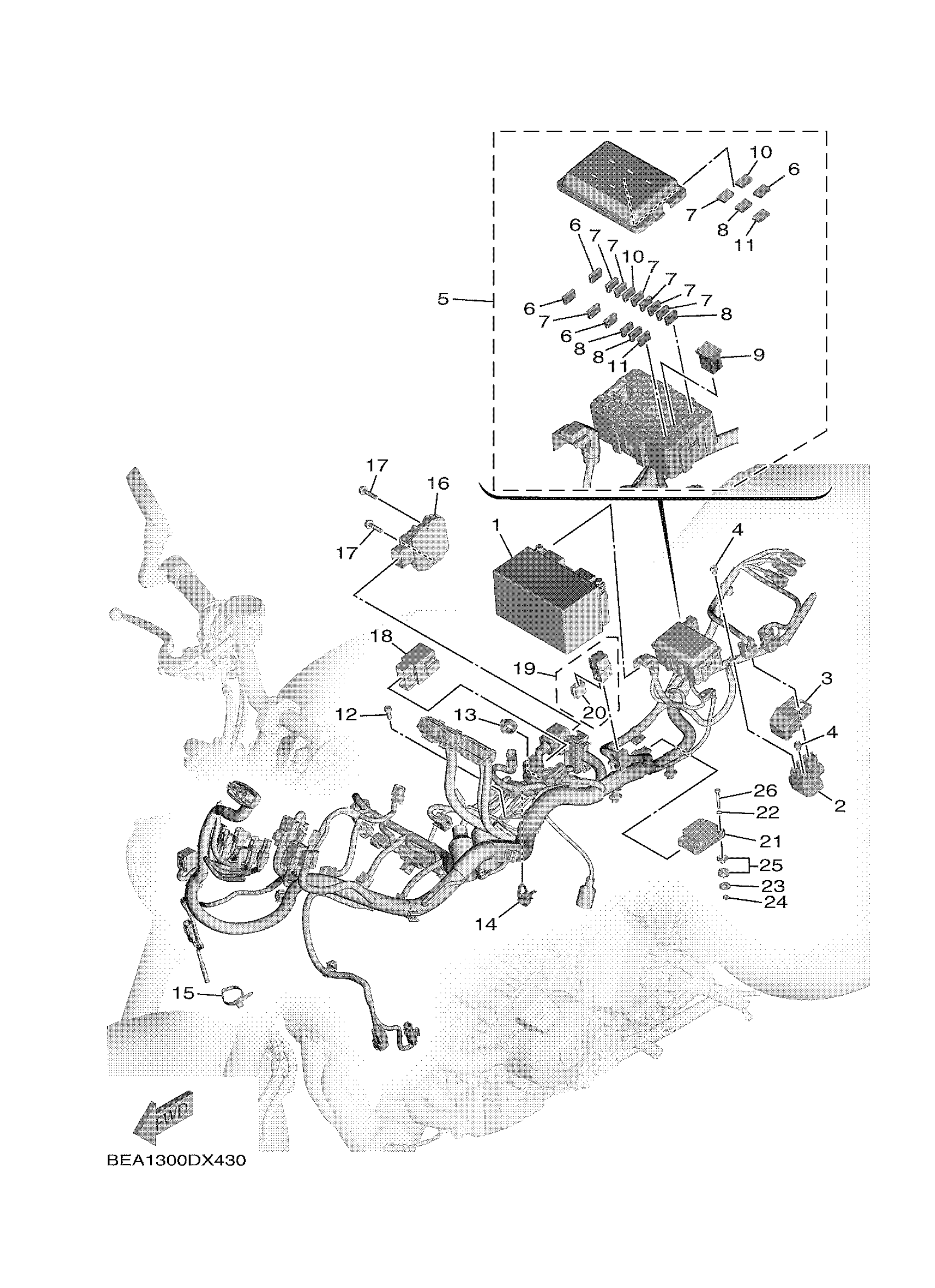

Yamaha XSR900RW (XSR900) BEAF 2024 ELECTRICAL 1 Diagram

#

Description
Price

1

BATTERY ASSY

5VY-82100-02-00

Unavailable

2

STARTER RELAY ASSY

B7N-81940-00-00

Unavailable

3

COVER, LEAD WIRE

5SL-82119-30-00

$3.74

4

BOLT FLANGE

90105-06230-00

Unavailable

5

WIRE HARNESS ASSY

BEA-82590-61-00

Unavailable

6

FUSE (2A)

B7N-82151-80-00

$12.49

7

FUSE (7.5A)

B7N-82151-00-00

$13.99

8

FUSE (15A)

B7N-82151-10-00

$12.49

9

FUSE

B7N-82151-B1-00

$15.99

10

FUSE (10A)

B7N-82151-30-00

Unavailable

11

FUSE (30A)

B7N-82151-60-00

$12.49

12

BOLT(3MA)

91312-06016-00

$5.60

13

CLAMP

90464-16003-00

$7.49

14

CLAMP

90464-25009-00

$8.49

15

CLAMP(4FM)

90464-15195-00

$4.41

16

RECTIFIER & REGULATOR ASSY

2CR-81960-01-00

Unavailable

17

BOLT, FLANGE DEEP RECESS

95D37-06025-00

Unavailable

18

RELAY ASSY

5VK-81950-43-00

Unavailable

19

RELAY ASSY

1TP-81950-00-00

Unavailable

20

HOLDER,RELAY

5EA-81952-00-00

Unavailable

21

INERTIAL MEASURE, UNIT ASSY

BEA-8593A-01-00

Unavailable

22

WASHER, PLAIN (646)

92990-04600-00

Unavailable

23

WASHER PLATE

90201-04034-00

Unavailable

24

NUT, U (7LY)

95617-04100-00

Unavailable

25

GROMMET AND COLLAR

B7N-W8A8D-00-00

Unavailable

26

BOLT, HEXAGON SOCKET HEAD

91317-04030-00

Unavailable
