2023 Yamaha XSR900 (XSR900PL) Headlight Diagram

← All diagrams

Find the part on the Headlight diagram for your 2023 Yamaha XSR900 (XSR900PL), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

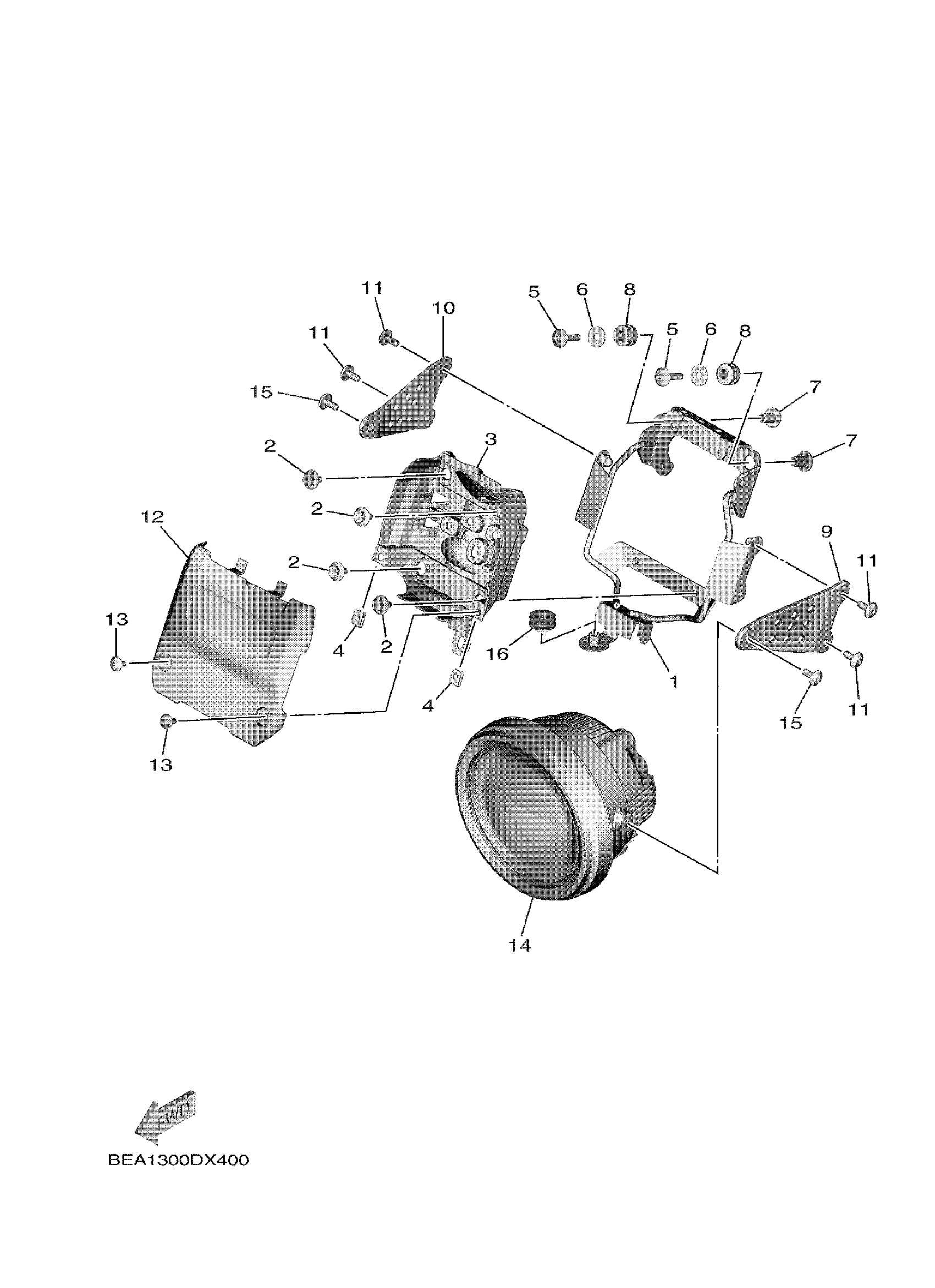

2023 Yamaha XSR900 (XSR900PL) Headlight Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

STAY, HEADLIGHT

BEA-23174-00-00

—

$155.48

In stock

2

BOLT

90109-06202-00

1

$2.46

In stock

3

HOLDER

BEA-8431U-00-00

1

$10.46

In stock

4

NUT, SPRING

90183-050A6-00

1

$2.37

In stock

5

BOLTHEX. SOCKET BUTTON

90111-06189-00

1

$2.29

In stock

6

WASHER, PLATE

90201-06095-00

1

$6.31

In stock

7

COLLAR

90387-06365-00

1

$4.31

In stock

8

GROMMET

90480-14036-00

—

$3.68

In stock

9

COVER, UPPER 1

BEA-23121-01-00

—

$36.08

In stock

10

COVER, UPPER 2

BEA-23131-01-00

—

$36.08

In stock

11

BOLT,HEX. SOCKET BUTTON

90111-06095-00

1

$6.28

In stock

12

PANEL, INNER 1

BEA-2836K-00-00

—

$16.06

In stock

13

BOLT

90111-05002-00

1

$5.18

In stock

14

HEADLIGHT ASSY

BEA-84300-00-00

1

$600.99

In stock

15

BOLT,HEX. SOCKET BUTTON

90111-06095-00

1

$6.28

In stock

16

GROMMET

90480-16014-00

—

$1.58

In stock
