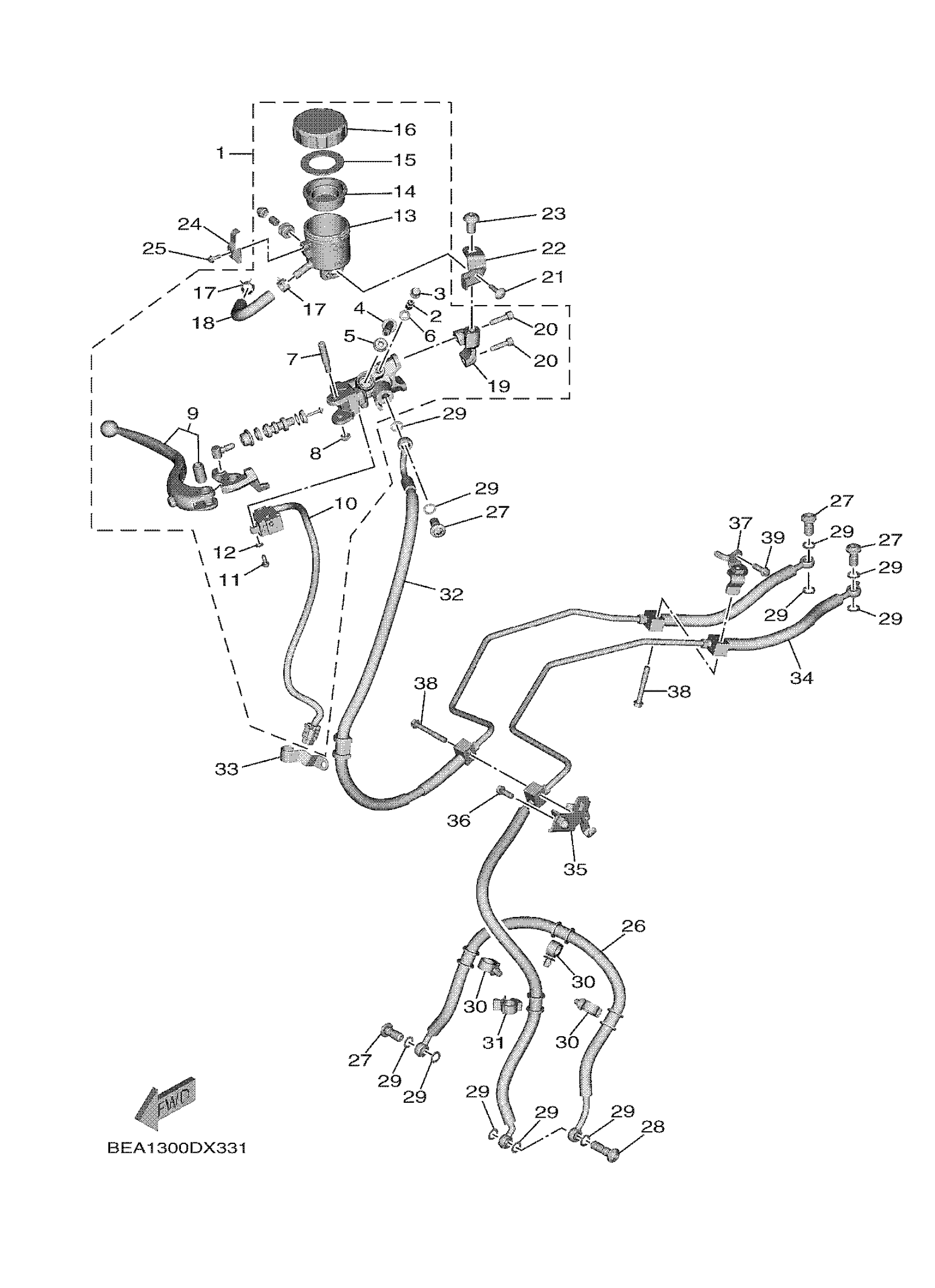

Yamaha XSR900PL (XSR900) BEAA 2023 FRONT MASTER CYLINDER Diagram

#

Description
Price

1

MASTER CYLINDER AS

BEA-2583T-00-00

Unavailable

2

SCREW, BLEED

3YK-25824-00-00

$8.99

3

CAP

3YK-25825-00-00

Unavailable

4

JOINT

B5Y-2582A-00-00

$4.72

5

O-RING

4BP-2585F-01-00

Unavailable

6

SEAL 1

5VY-25975-00-00

$2.29

7

BOLT, LEVER

B5Y-2589F-00-00

Unavailable

8

NUT, SELF-LOCKING

95617-06100-00

$8.49

9

LEVER SET

BEB-W2616-10-00

$53.99

10

FRONT STOP SWITCH

BAM-83980-00-00

$119.99

11

SCREW, PAN HEAD(GA5)

98580-04014-00

$4.51

12

WASHER, PLAIN (646)

92990-04600-00

$5.99

13

TANK, RESERVOIR

BAM-25894-00-00

$63.99

14

DIAPHRAGM, RESERVOIR

5VY-25854-00-00

$32.99

15

BUSH,DIAPHRAGM

5VY-25855-00-00

$5.49

16

CAP, RESERVOIR

5VY-25852-00-00

Unavailable

17

CLIP

90467-120A3-00

Unavailable

18

HOSE, RESERVOIR

BEA-25895-00-00

Unavailable

19

BRACKET, MASTER CYLINDER

B5Y-25867-10-00

Unavailable

20

BOLT,SOCKET HEAD

91314-06020-00

Unavailable

21

BOLT,HEX. SOCKET BUTTON

90111-05026-00

Unavailable

22

STAY

BEA-2629K-00-00

Unavailable

23

BOLT,HEX. SOCKET BUTTON

90111-10063-00

Unavailable

24

HOLDER

5VY-2589G-00-00

Unavailable

25

SCREW

5VY-2589H-00-00

Unavailable

26

HOSE, BRAKE 1

B7N-25872-00-00

Unavailable

27

BOLT, UNION

90401-10172-00

Unavailable

28

BOLT, UNION

90401-10042-00

Unavailable

29

GASKET

90430-10005-00

Unavailable

30

CLAMP

90464-18002-00

Unavailable

31

CLAMP

90464-14013-00

Unavailable

32

BRAKE HOSE ASSY

BEA-2584A-00-00

Unavailable

33

HOLDER, BRAKE HOSE

B7N-25875-00-00

Unavailable

34

HOSE, BRAKE

B7N-2584B-01-00

Unavailable

35

BRACKET, REFLECTOR

B7N-85132-00-00

Unavailable

36

BOLT, FLANGE

95022-06016-00

Unavailable

37

BRACKET

B7N-2612E-00-00

Unavailable

38

BOLT, FLANGE

95022-06045-00

Unavailable

39

BOLT, FLANGE

95022-06016-00

Unavailable
