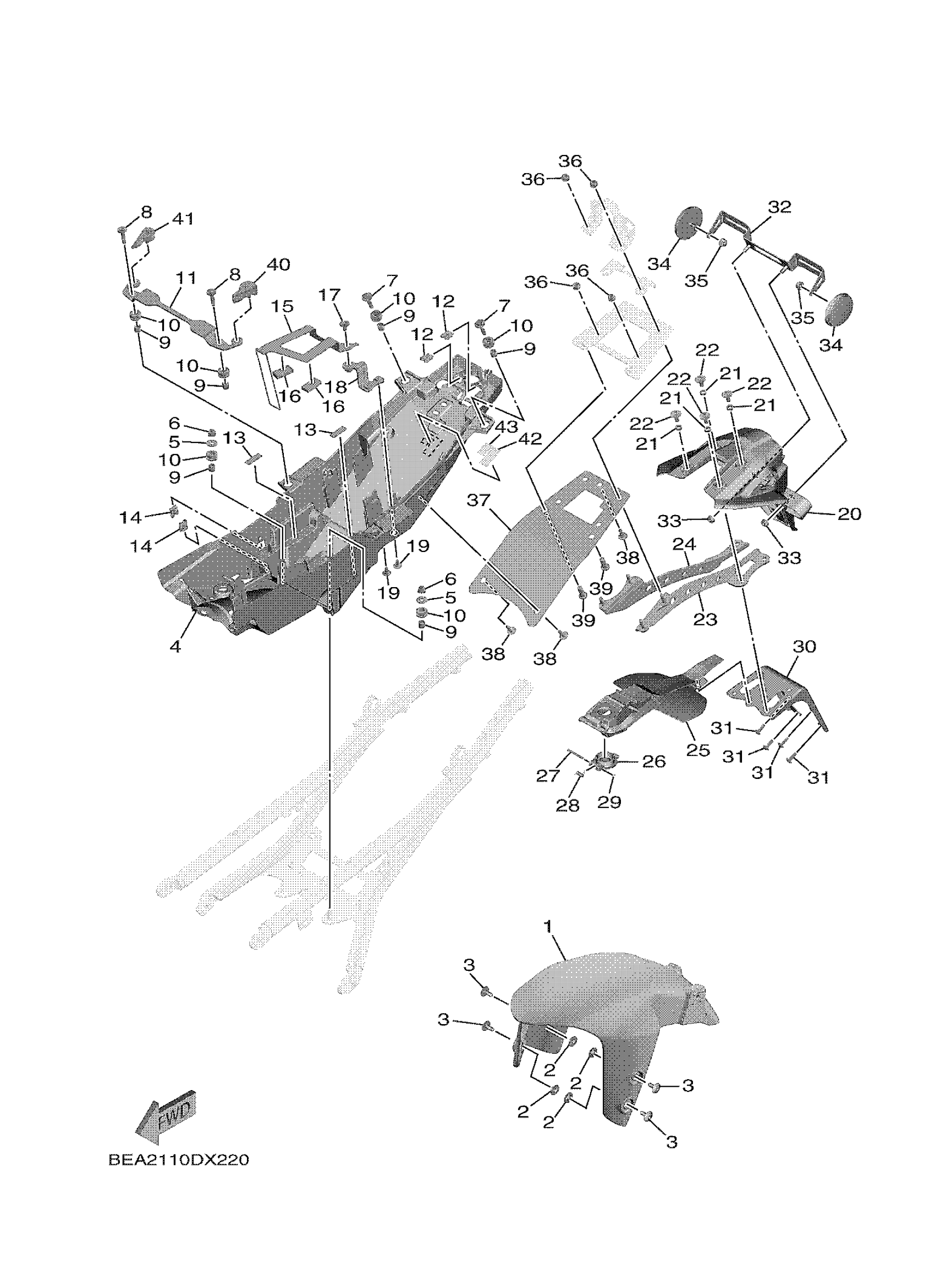

Yamaha XSR900PL (XSR900) BEAA 2023 FENDER Diagram
#
6
. NUT, CAP
90176-06007-00
Unavailable
8
BOLT,HEX. SOCKET BUTTON
90111-06053-00
Unavailable
11
STAY, 4
BEA-21843-00-00
Unavailable
12
NUT, SPRING(4ES)
90183-06069-00
Unavailable
14
NUT, SPRING(4ES)
90183-06069-00
Unavailable
15
BAND, BATTERY
B7N-82137-00-00
Unavailable
16
DAMPER PLATE
90520-06009-00
Unavailable
17
BOLT,HEX. SOCKET BUTTON
90111-06119-00
Unavailable
18
BRACKET, REAR STAY
B7N-21688-00-00
Unavailable
19
BOLT,HEX. SOCKET BUTTON
90111-05049-00
Unavailable
20
GUARD, MUD
B7N-21629-00-00
Unavailable
21
COLLAR
90387-06106-00
Unavailable
22
BOLT,HEX. SOCKET BUTTON
90111-06190-00
Unavailable
23
STAY 1
BEA-2164F-00-00
Unavailable
24
STAY 2
BEA-2164G-00-00
Unavailable
25
COVER, REAR FENDER
BEA-2163E-00-00
Unavailable
26
CAP, ROTOR
B7N-2465B-01-00
Unavailable
27
PIN
90249-03002-00
Unavailable
28
SPRING, TORSION
90508-09007-00
Unavailable
29
CIRCLIP (604)
93430-02001-00
Unavailable
30
STAY, PLATE
B7N-21682-00-00
Unavailable
31
SCREW, ROUND TAPPING
90160-05012-00
Unavailable
32
BRACKET, LICENSE
1RC-84751-00-00
Unavailable
33
NUT, SELF-LOCKING
95617-06100-00
Unavailable
34
REFLECTOR, REAR 1
449-85131-02-00
Unavailable
35
NUT, FLANGE(3GM)
95707-05500-00
Unavailable
36
NUT, U FLANGE
95604-06200-00
Unavailable
37
COVER, REAR FENDER
BEA-21651-00-00
Unavailable
38
RIVET
90269-07007-00
Unavailable
39
BOLT, BUTTON
92014-08020-00
Unavailable
40
DAMPER 2
BEA-21639-00-00
Unavailable
41
DAMPER
BEA-21649-00-00
Unavailable
42
LABEL, CAUTION
3JJ-28446-A2-00
Unavailable
43
LABEL, CAUTION
3TB-24877-A1-00
Unavailable
