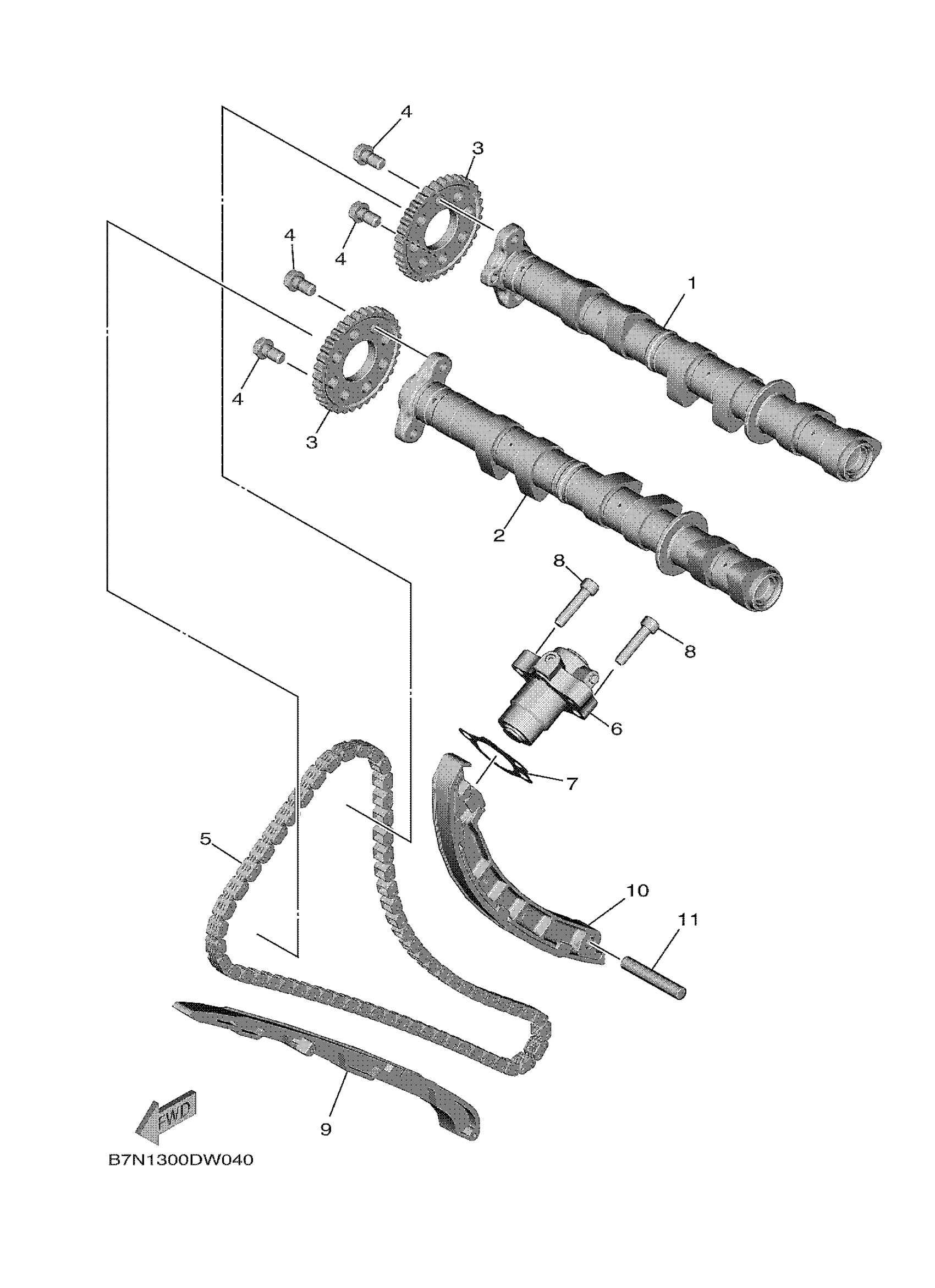

Yamaha XSR900PL (XSR900) BEAA 2023 CAMSHAFT & CHAIN Diagram

#

Description
Price

1

CAMSHAFT ASSY 1

B7N-12170-00-00

$297.99

2

CAMSHAFT ASSY 2

B7N-12180-00-00

$298.99

3

SPROCKET, CAM CHAI

B7N-12176-00-00

$55.99

4

BOLT, FLANGE

90105-07006-00

$8.49

5

CHAIN

94591-78128-00

$62.99

6

TENSIONER ASSY, CAM CHAIN

B7N-12210-01-00

$208.99

7

GASKET, TENSIONER CASE

14B-12213-00-00

$7.99

8

BOLT,SOCKET

91317-06025-00

$5.60

9

DAMPER, CHAIN 1

1RC-12251-00-00

Unavailable

10

CHAIN DAMPER ASSY

B7N-12250-00-00

$46.99

11

PIN, DOWEL

93607-44002-00

$4.67
