2022 Yamaha XSR900 (XSR900NL) Meter Diagram

← All diagrams

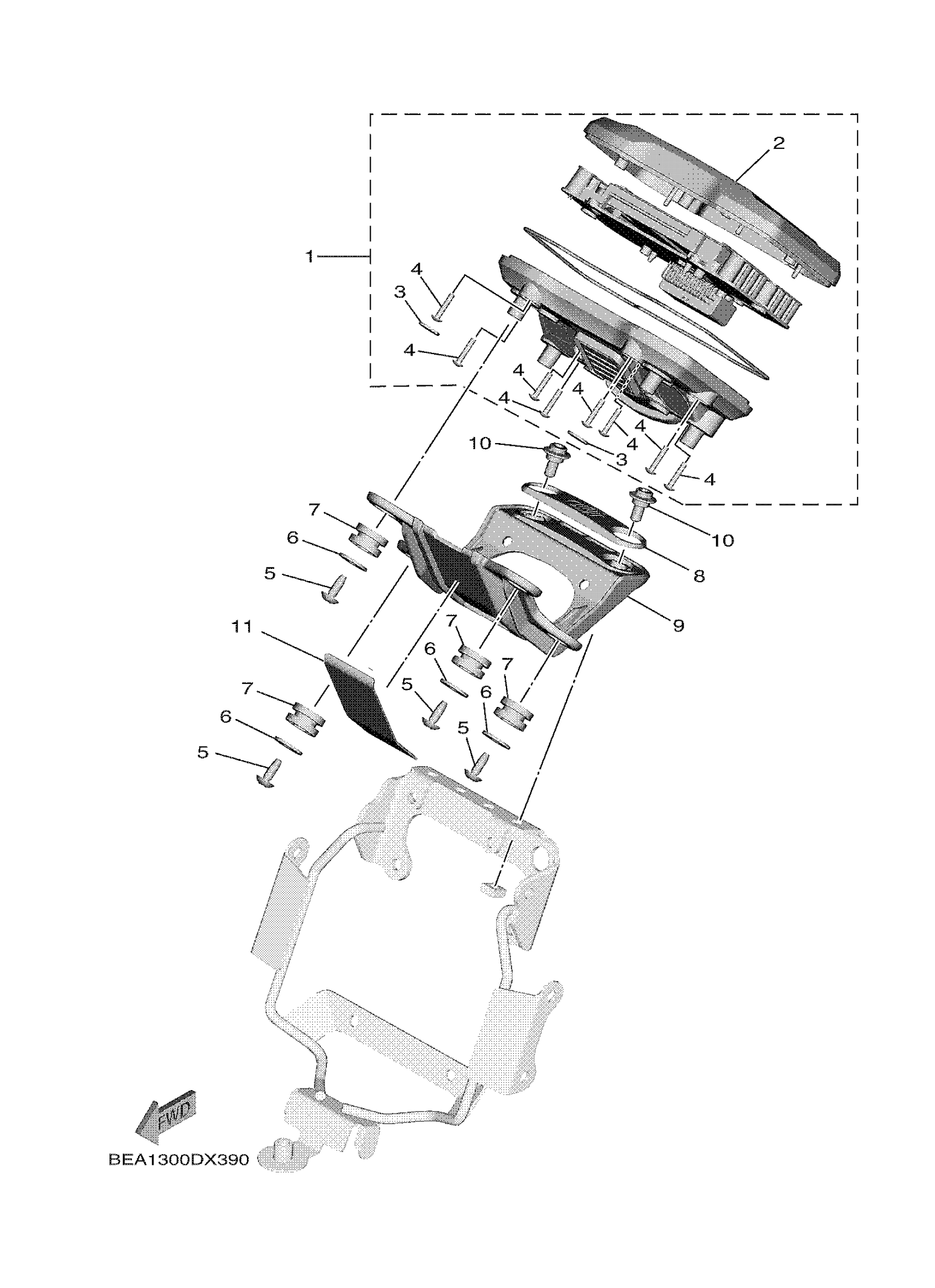

Find the part on the Meter diagram for your 2022 Yamaha XSR900 (XSR900NL), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2022 Yamaha XSR900 (XSR900NL) Meter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

METER ASSY

BEA-83500-20-00

1

$1,335.14

In stock

2

CASE, METER UPPER

BAM-8353E-20-00

—

$119.82

In stock

3

SEAL 1

8GC-21732-00-00

1

$1.57

In stock

4

SCREW, PANEL FITTING

5PW-8352S-00-00

1
Out of stock

5

SCREW, ROUND TAPPING

90160-05017-00

1

$1.32

In stock

6

WASHER, PLATE (4H7)

90201-061A5-00

1

$5.86

In stock

7

DAMPER

4XV-83513-00-00

1

$6.42

In stock

8

PLATE,BRIDGE

BEA-8354H-00-00

1

$83.62

In stock

9

BRACKET, METER 1

BEA-8355X-00-00

1

$31.06

In stock

10

BOLT

90109-06340-00

1

$3.66

In stock

11

PLATE

BEA-83618-00-00

1

$45.74

In stock
