2022 Yamaha XSR900 (XSR900NL) Electrical 2 Diagram

← All diagrams

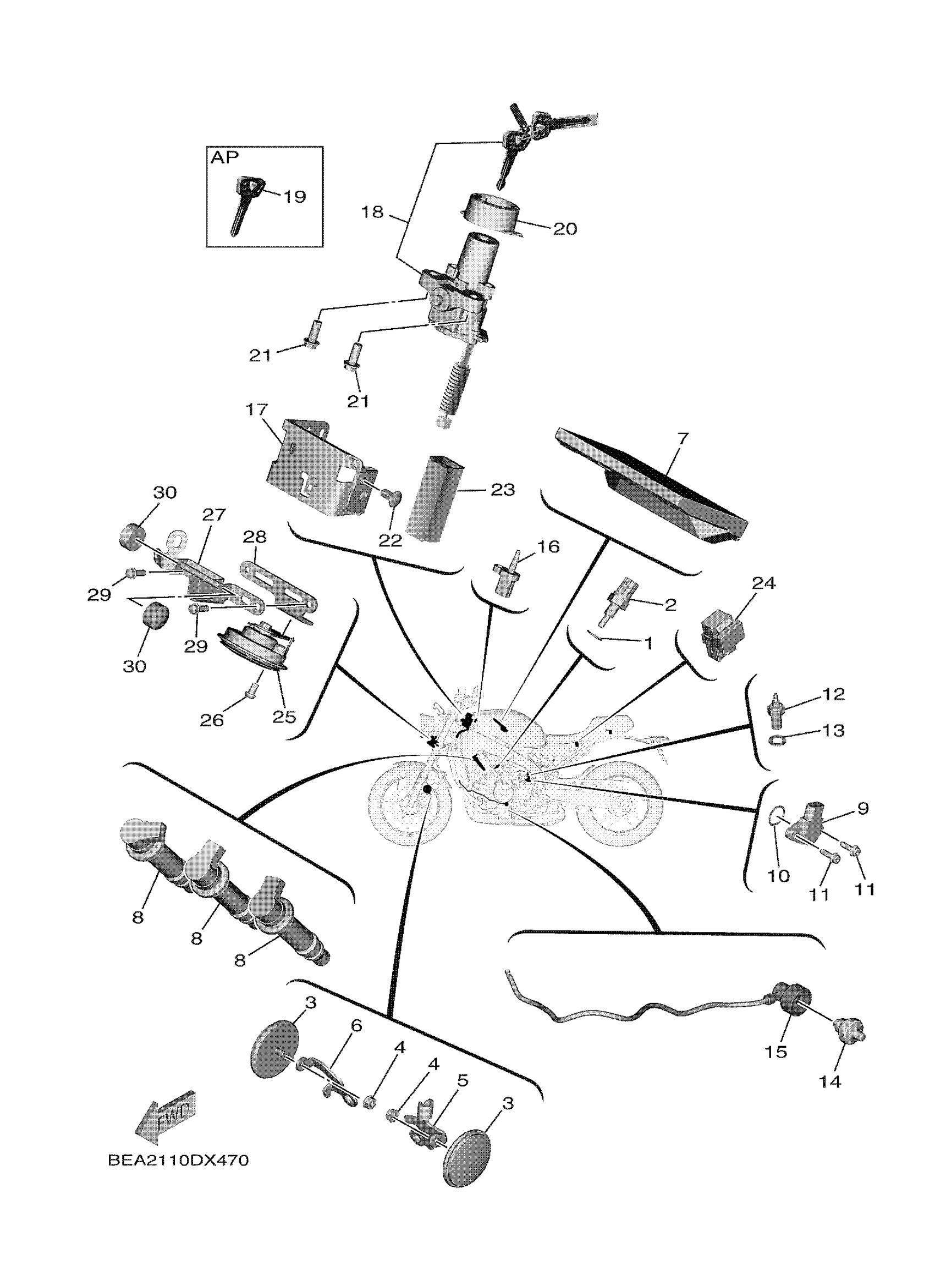

Find the part on the Electrical 2 diagram for your 2022 Yamaha XSR900 (XSR900NL), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2022 Yamaha XSR900 (XSR900NL) Electrical 2 Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

GASKET

90430-10004-00

1
Out of stock

2

THERMO UNIT

52B-H3591-00-00

1
Out of stock

3

REFLECTOR, FRONT 1

4AG-85111-00-00

1
Out of stock

4

NUT, FLANGE

95702-06500-00

1
Out of stock

5

BRACKET, REFLECTOR

B7N-85112-00-00

—
Out of stock

6

BRACKET, REFLECTOR

B7N-85122-00-00

1
Out of stock

7

ENGINE CONTROL UNI

BEA-8591A-10-00

—
Out of stock

8

IGNITION COIL ASSY

1WS-82310-00-00

1
Out of stock

9

SENSOR, GEAR POSITION

2CR-85899-10-00

1
Out of stock

10

O-RING

93210-17008-00

—
Out of stock

11

BOLT, HEXAGON SOCKET HEAD

90110-05038-00

1
Out of stock

12

NEUTRAL SWITCH ASSY

3GB-82540-01-00

1
Out of stock

13

GASKET (1KH,1.0T)

90430-10148-00

1
Out of stock

14

OIL PRESSURE SWITCH ASSY

1WS-82504-01-00

1
Out of stock

15

WIRE, SUB LEAD

B3L-82509-11-00

—
Out of stock

16

SENSOR, AIR TEMPERATURE

5YU-85886-00-00

—
Out of stock

17

COVER, CONNECTOR

B7N-82599-01-00

—
Out of stock

18

MAIN SWITCH STEERI

BEA-82501-11-00

—
Out of stock

19

BLANK KEY

4BH-82511-09-00

—
Out of stock

20

COVER, MAIN SWITCH

3P6-82568-00-00

—
Out of stock

21

BOLT, WASHER BASED(3JP)

90105-081A1-00

—
Out of stock

22

RIVET

90269-07015-00

—
Out of stock

23

PROTECTER, WIRE HARNESS

B7N-82589-01-00

—
Out of stock

24

RELAY ASSY

5DM-81950-01-00

—
Out of stock

25

HORN

BEA-83371-00-00

—
Out of stock

26

BOLT, BUTTON HEAD

92017-06010-00

—
Out of stock

27

STAY, SETTING

B7N-8431R-00-00

—
Out of stock

28

BRACKET, HORN

BEA-23377-00-00

—
Out of stock

29

BOLT, FLANGE DEEP RECESS

95E32-06020-00

—
Out of stock

30

DAMPER

B7N-84527-00-00

—
Out of stock
