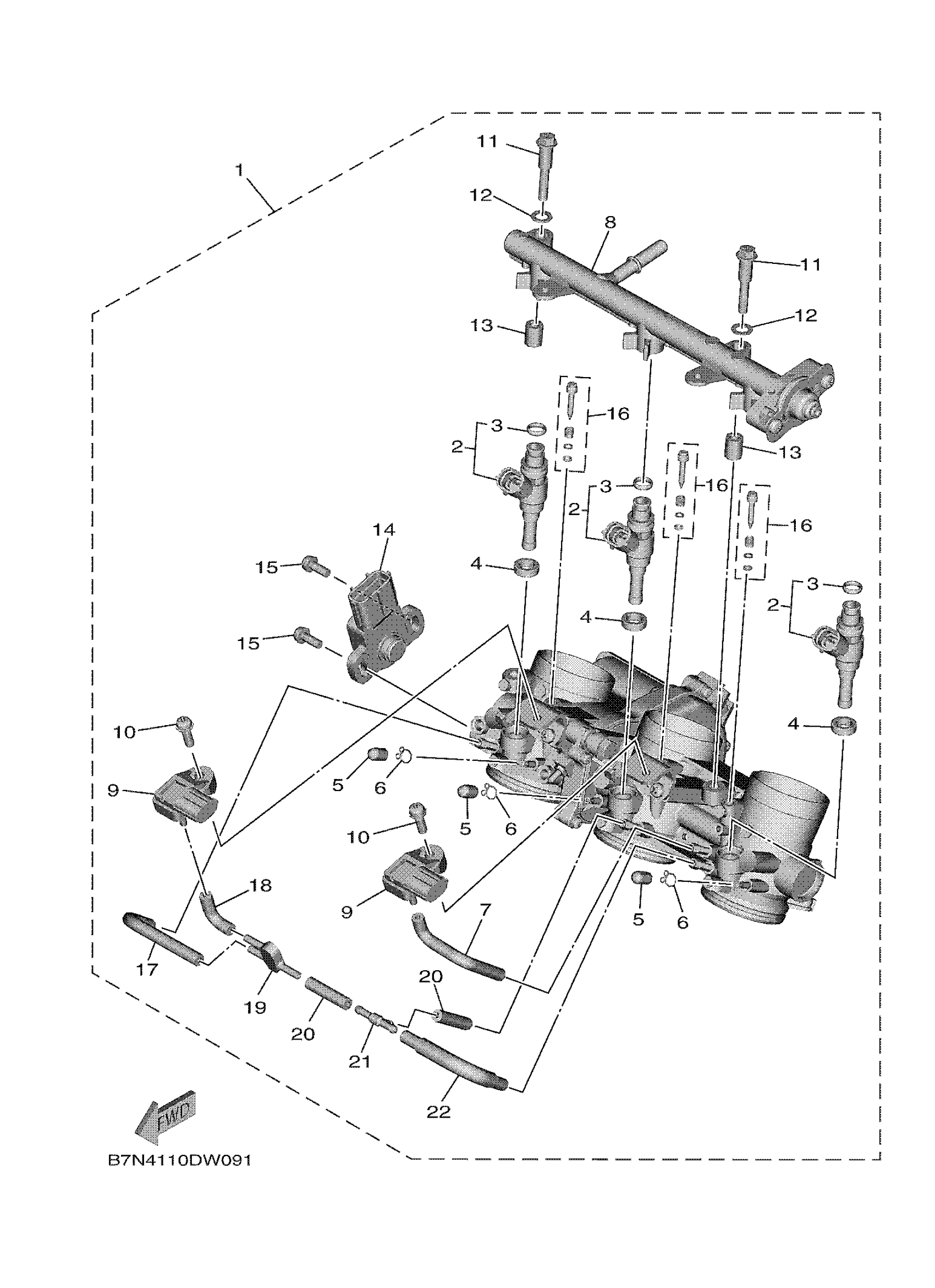

Yamaha XSR900NL (XSR900) BEA2 2022 INTAKE 1 (FOR U49) Diagram

#

Description
Price

1

THROTTLE BODY ASSY

B7N-13750-12-00

$1,174.99

2

INJECTOR

B7N-13761-00-00

Unavailable

3

O-RING

5PS-14147-00-00

$13.49

4

GASKET, MANIFOLD

8FP-13556-00-00

$13.99

5

CAP

895-14169-00-00

$5.49

6

CLIP, PIPE

8A7-14139-00-00

$8.99

7

. HOSE, VACUUM SENSING 4

68V-13533-00-00

Unavailable

8

PIPE INLET ASSEMBL

B7N-13930-00-00

$231.99

9

SENSOR, PRESSURE

1WS-82380-00-00

$193.99

10

SCREW

2C0-14216-00-00

$3.28

11

BOLT 1

8HG-13573-00-00

Unavailable

12

WASHER

8GL-13571-00-00

$3.50

13

COLLAR

8HG-14534-00-00

$31.99

14

THROTTLE SENSOR AS

B3L-85885-01-00

$109.99

15

SCREW

8CC-14216-10-00

$7.99

16

PILOT SCREW SET

2C0-14105-00-00

Unavailable

17

. PIPE 1

5FL-14348-00-00

Unavailable

18

PIPE

8FP-14349-00-00

Unavailable

19

NIPPLE

3XV-14251-00-00

Unavailable

20

PIPE 1

5FL-14348-10-00

Unavailable

21

. PIPE, JOINT 1

68V-24376-00-00

Unavailable

22

HOSE, VACUUM SENSI

B7N-13542-00-00

Unavailable
