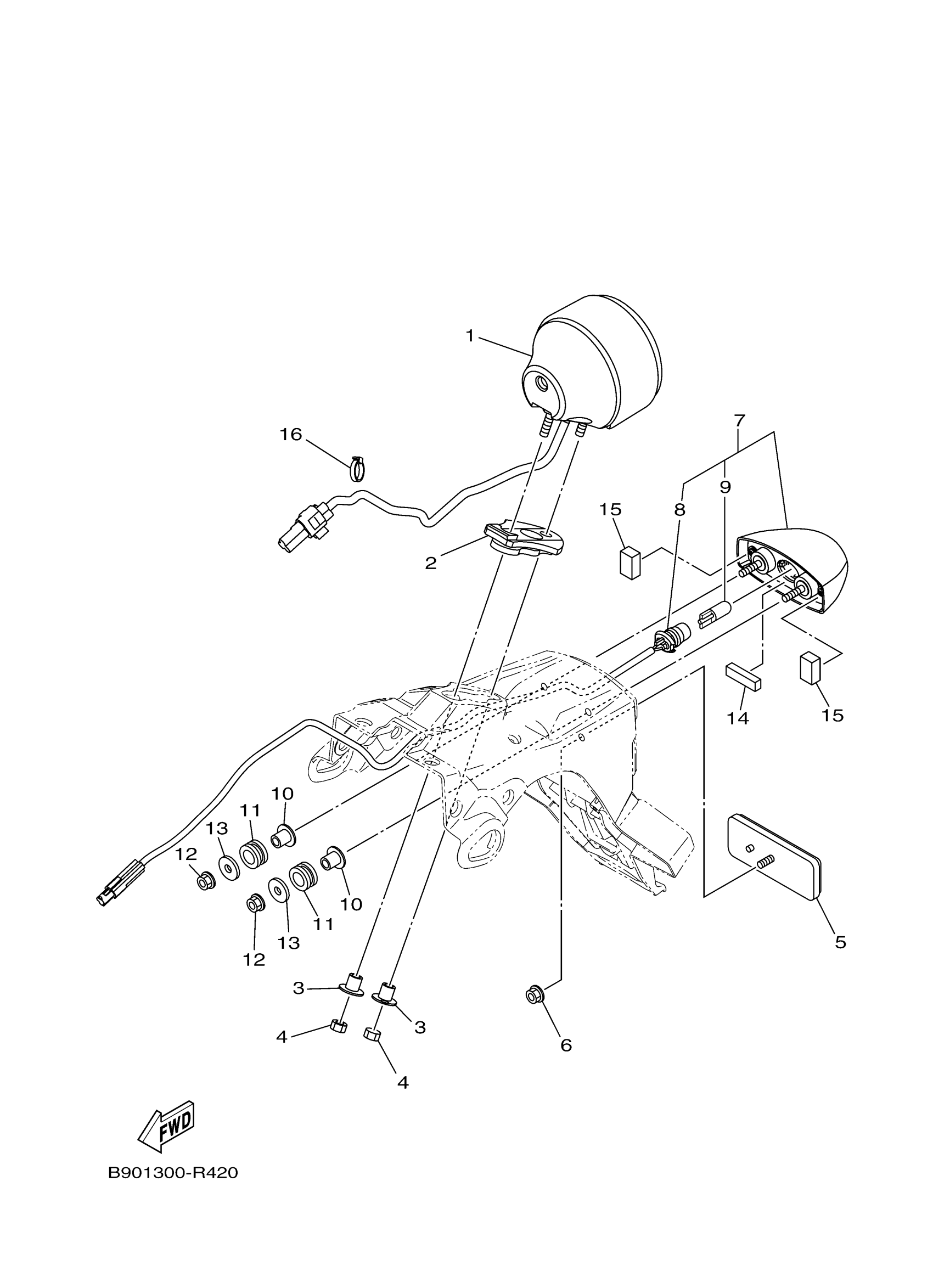

Yamaha XSR900MW (XSR900) BAEG 2021 TAILLIGHT Diagram

#

Description
Price

1

TAILLIGHT ASSY

B90-84700-00-00

$208.91

2

DAMPER, TAIL 1

B90-84736-00-00

$4.81

3

COLLAR

90387-06161-00

$5.81

4

NUT, HEXAGON

95380-06600-00

$4.11

5

REAR REFLECTOR ASSY

3Y6-85130-02-00

$21.21

6

NUT, S/L FLANGE

95607-05200-00

$6.39

7

LICENCE LIGHT ASSY

1WS-84740-00-00

Unavailable

8

CORD, LICENCE LIGH

1WS-84547-00-00

Unavailable

9

BULB

1TP-84347-00-00

$5.55

10

COLLAR

90387-05042-00

$4.46

11

GROMMET

90480-11009-00

$0.77

12

NUT, S/L FLANGE

95607-05200-00

$6.39

13

WASHER PLATE (664)

90201-05556-00

Unavailable

14

DAMPER 2

1HX-28227-00-00

$9.27

15

DAMPER 1

4D9-28415-00-00

$4.44

16

BAND

1UA-82591-00-00

Unavailable
