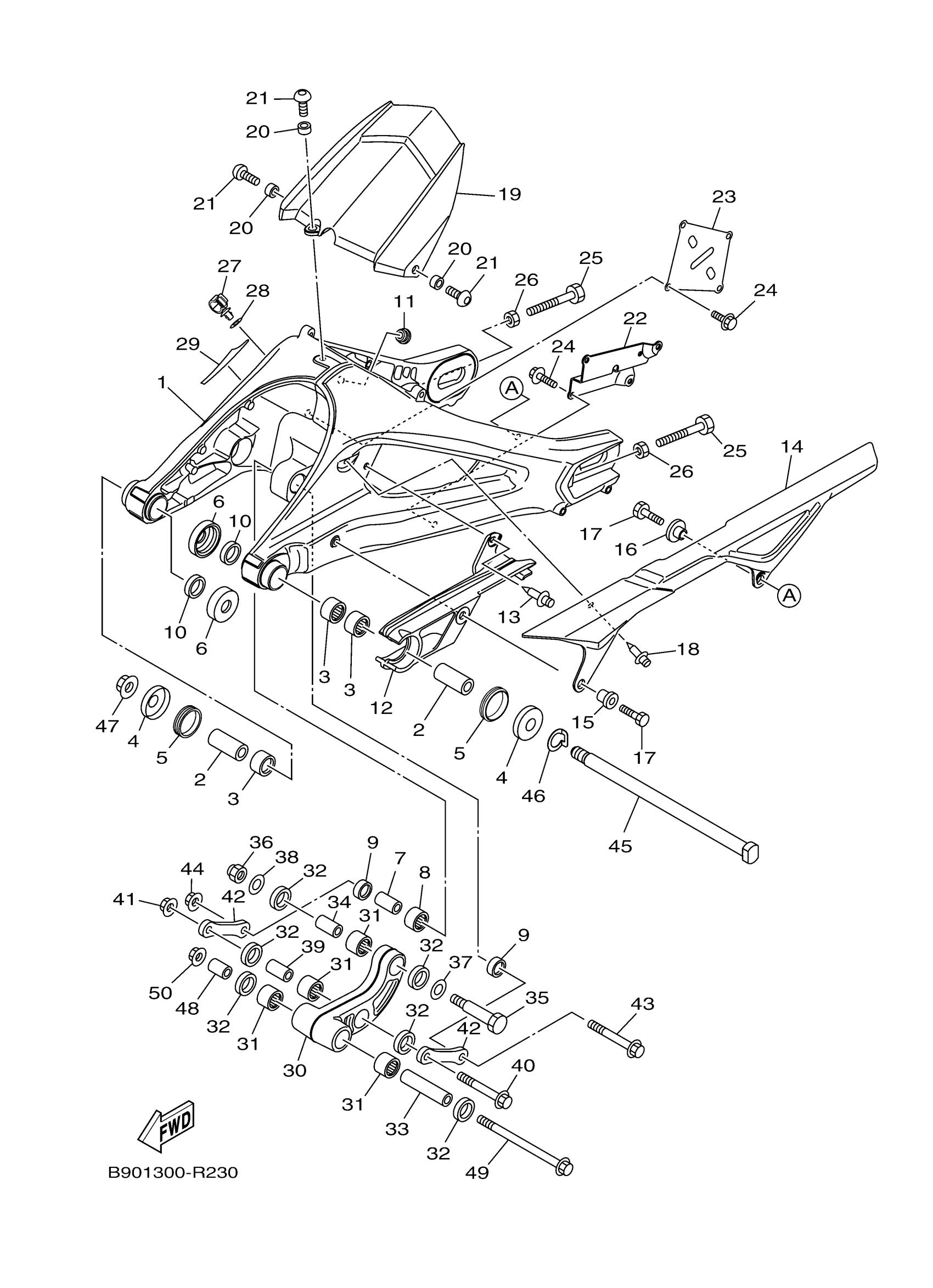

Yamaha XSR900MW (XSR900) BAEG 2021 REAR ARM Diagram
#
2
BUSH, SOLID(38V)
90380-16134-00
Unavailable
16
COLLAR
90387-06066-00
Unavailable
17
BOLT, HEXAGON DEEP RECESS
97D95-06016-00
Unavailable
19
REAR FENDER COMP.
1RC-21650-01-00
Unavailable
20
COLLAR
90387-06106-00
Unavailable
21
BOLT,HEX. SOCKET BUTTON
90111-06151-00
Unavailable
22
BRACKET 1
1RC-2221A-00-00
Unavailable
23
BRACKET 2
1RC-2221B-00-00
Unavailable
24
BOLT, FLANGE
95022-06010-00
Unavailable
25
BOLT
90101-08013-00
Unavailable
26
NUT
95302-08600-00
Unavailable
27
CLAMP
90464-18002-00
Unavailable
28
WASHER, PLATE(J42)
90202-07164-00
Unavailable
29
SEAL 1
1RC-22358-00-00
Unavailable
30
ARM, RELAY
1RC-2217A-00-00
Unavailable
33
SPACER
3GB-23448-00-00
Unavailable
34
COLLAR(3TJ)
90387-127W0-00
Unavailable
35
BOLT
90109-10027-00
Unavailable
36
NUT, U
95617-10100-00
Unavailable
37
WASHER, PLATE
90201-13015-00
Unavailable
38
WASHER, PLATE
90201-10035-00
Unavailable
40
BOLT, FLANGE
90105-10210-00
Unavailable
41
NUT, S/L FLANGE
95602-10200-00
Unavailable
42
ARM 1
1RC-2217M-01-00
Unavailable
43
BOLT, FLANGE
90105-10210-00
Unavailable
44
NUT, S/L FLANGE
95602-10200-00
Unavailable
45
SHAFT, PIVOT
46X-22141-00-00
Unavailable
46
WASHER, SPRING LOWER
1RC-22159-00-00
Unavailable
47
NUT, U FLANGE
95602-14200-00
Unavailable
48
COLLAR
90387-10106-00
Unavailable
49
BOLT, FLANGE
90105-10174-00
Unavailable
50
NUT, S/L FLANGE
95602-10200-00
Unavailable
