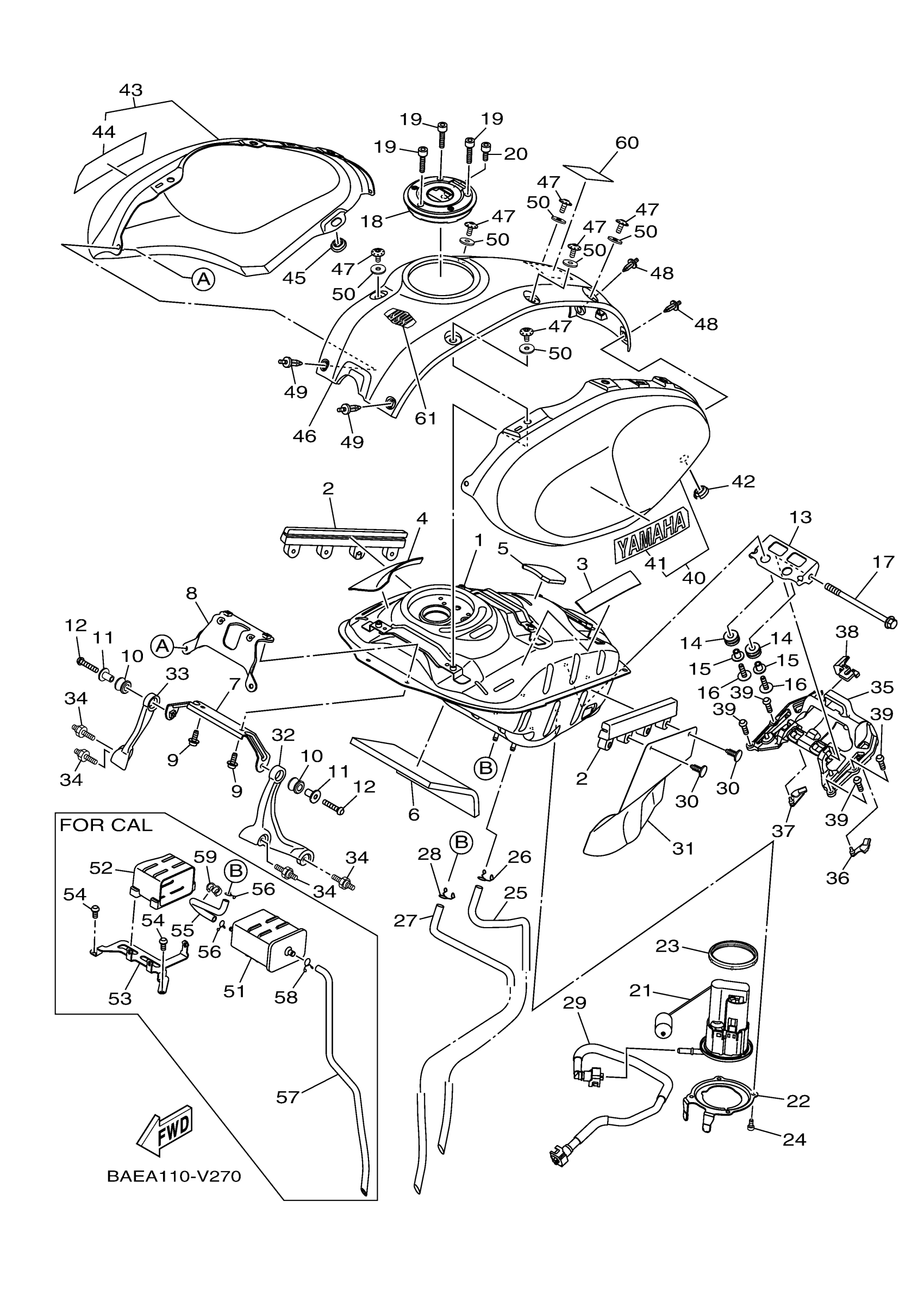

Yamaha XSR900MW (XSR900) BAEG 2021 FUEL TANK Diagram
#
1
FUEL TANK COMP.
B90-24110-01-00
Unavailable
2
SEAT, KNEE GRIP 1
B90-24121-00-00
Unavailable
6
DAMPER, PLATE
90520-10029-00
Unavailable
8
DAMPER, SIDE COVER
B90-24145-00-00
Unavailable
14
GROMMET
90480-16003-00
Unavailable
15
COLLAR
90387-06287-00
Unavailable
16
BOLT,HEX. SOCKET BUTTON
90111-06084-00
Unavailable
17
BOLT, FLANGE(4EM)
95817-08120-00
Unavailable
18
CAP ASSY
1WS-24602-00-00
Unavailable
19
BOLT, HEXAGON SOCKET HEAD(1FM)
90110-05112-00
Unavailable
20
BOLT
91312-05010-00
Unavailable
21
FUEL PUMP COMP
1RC-13907-10-00
Unavailable
22
BRACKET, FUEL PUMP
B90-24491-01-00
Unavailable
23
O-RING
1RC-24486-00-00
Unavailable
24
BOLT
91312-05010-00
Unavailable
25
PIPE 5
1RC-24315-00-00
Unavailable
26
CLIP
90467-090A2-00
Unavailable
29
PIPE, FUEL 1
B90-13971-01-00
Unavailable
30
RIVET(81E)
90269-05055-00
Unavailable
31
COVER
B90-24217-00-00
Unavailable
32
PLATE, FITTING
B90-2411F-00-00
Unavailable
33
HOOK TANK FITTING
B90-2411L-00-00
Unavailable
34
BOLT
90109-06309-00
Unavailable
35
BRACKET, TANK FITTING
B90-2413Y-00-00
Unavailable
36
DAMPER
B90-24665-00-00
Unavailable
37
DAMPER
B90-2466M-00-00
Unavailable
38
GROMMET
B90-24742-00-00
Unavailable
39
BOLT, BUTTON
92017-06020-00
Unavailable
40
COVER, TANK SIDE 1 ASSY
B90-Y24HA-10-03
Unavailable
41
EMBLEM, YAMAHA
99244-00140-00
Unavailable
42
GROMMET(4DN)
90480-01558-00
Unavailable
43
COVER, TANK SIDE 2 ASSY
B90-Y24JA-10-03
Unavailable
44
EMBLEM, YAMAHA
99244-00140-00
Unavailable
45
GROMMET(4DN)
90480-01558-00
Unavailable
46
COVER, TANK
B90-241B1-00-P3
Unavailable
47
BOLT
90109-06311-00
Unavailable
48
RIVET
90269-06008-00
Unavailable
49
RIVET
90269-07001-00
Unavailable
50
WASHER, PLATE
90201-06M94-00
Unavailable
51
CANISTER ASSY
2CR-24170-00-00
Unavailable
52
DAMPER, LOCATING 3
B90-24183-00-00
Unavailable
53
BRACKET, CANISTOR
B90-2419F-00-00
Unavailable
54
BOLT, BUTTON HEAD
92012-06012-00
Unavailable
55
PIPE 3
B90-24313-10-00
Unavailable
56
CLIP
90467-090A2-00
Unavailable
57
PIPE 10
B90-24321-00-00
Unavailable
58
CLIP
90467-100A1-00
Unavailable
59
CLAMP(6M7)
90464-09M31-00
Unavailable
60
LABEL, WARNING GENERAL INFO.
29P-2816R-01-00
Unavailable
61
EMBLEM
B90-2416B-02-00
Unavailable
