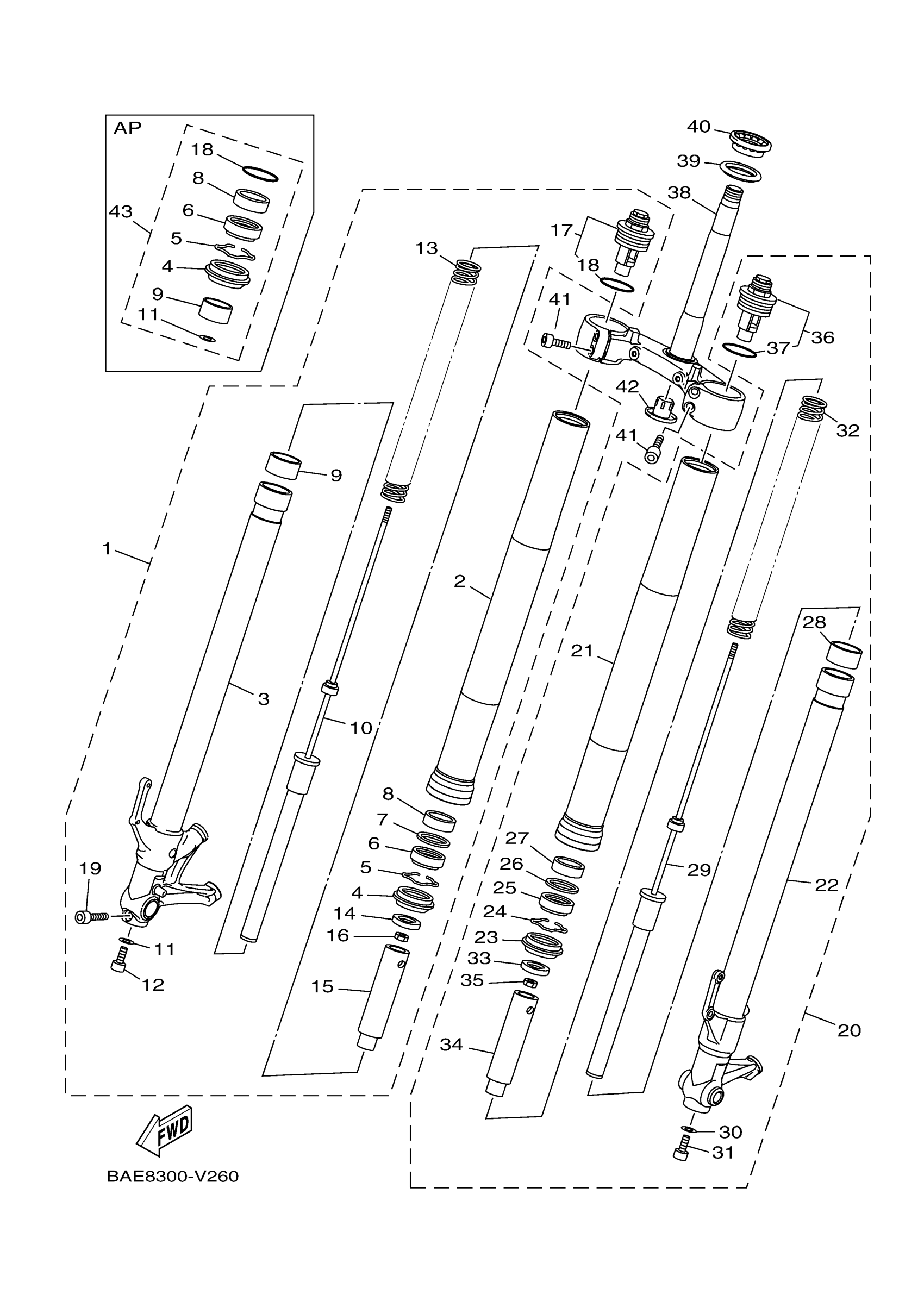

Yamaha XSR900MW (XSR900) BAEG 2021 FRONT FORK Diagram

#

Description
Price

1

FRONT FORK ASSY (R.H)

B90-23103-00-00

$813.99

2

TUBE, OUTER (L.H)

1RC-23126-40-00

Unavailable

3

INNER TUBE COMP.2

1RC-23120-01-00

Unavailable

4

SEAL, DUST

4EB-23144-00-00

$22.99

5

CLIP, OIL SEAL

26H-23156-00-00

$7.99

6

OIL SEAL

4EB-23145-01-00

$28.99

7

WASHER, OIL SEAL

36Y-23146-10-00

$27.99

8

METAL, SLIDE 1

1RC-23125-00-00

$15.49

9

METAL, SLIDE

4FM-23171-40-00

$23.99

10

CYLINDER COMP., FR

2PP-23170-10-00

Unavailable

11

GASKET

509-23158-L0-00

$16.49

12

BOLT, HEXAGON SOCKET HEAD

3D8-23181-00-00

$8.99

13

SPRING, FRONT FORK

2PP-23141-00-00

Unavailable

14

WASHER

5VY-12277-00-00

$12.99

15

SPACER

1RC-23118-00-00

$14.49

16

NUT

3LC-23357-00-00

Unavailable

17

BOLT, CAP

B90-23111-10-00

Unavailable

18

O-RING

3XJ-23147-L0-00

Unavailable

19

BOLT, SOCKET

91314-08035-00

Unavailable

20

FRONT FORK ASSY (L.H)

B90-23102-00-00

Unavailable

21

TUBE, OUTER (L.H)

1RC-23126-40-00

Unavailable

22

INNER TUBE COMP.1

1RC-23110-01-00

Unavailable

23

SEAL, DUST

4EB-23144-00-00

$22.99

24

CLIP, OIL SEAL

26H-23156-00-00

$7.99

25

OIL SEAL

4EB-23145-01-00

$28.99

26

WASHER, OIL SEAL

36Y-23146-10-00

$27.99

27

METAL, SLIDE 1

1RC-23125-00-00

$15.49

28

METAL, SLIDE

4FM-23171-40-00

$23.99

29

CYLINDER COMP., FR

2PP-23170-00-00

Unavailable

30

GASKET

509-23158-L0-00

$16.49

31

BOLT, HEXAGON SOCKET HEAD

3D8-23181-00-00

$8.99

32

SPRING, FRONT FORK

2PP-23141-00-00

Unavailable

33

WASHER

5VY-12277-00-00

$12.99

34

SPACER

1RC-23118-00-00

$14.49

35

NUT

3LC-23357-00-00

Unavailable

36

BOLT, CAP

B90-23111-00-00

Unavailable

37

O-RING

3XJ-23147-L0-00

Unavailable

38

UNDER BRACKET COMP.

1RC-23340-11-00

Unavailable

39

SEAL, STEERING

3FV-23462-00-00

Unavailable

40

BEARING(3FV)

93399-99932-00

Unavailable

41

BOLT,SOCKET

91314-08030-00

Unavailable

42

COVER, LOWER 1

4KM-23123-01-00

Unavailable

43

FORK SEAL KIT (ONE FORK)

B5C-W003B-00-00

Unavailable
