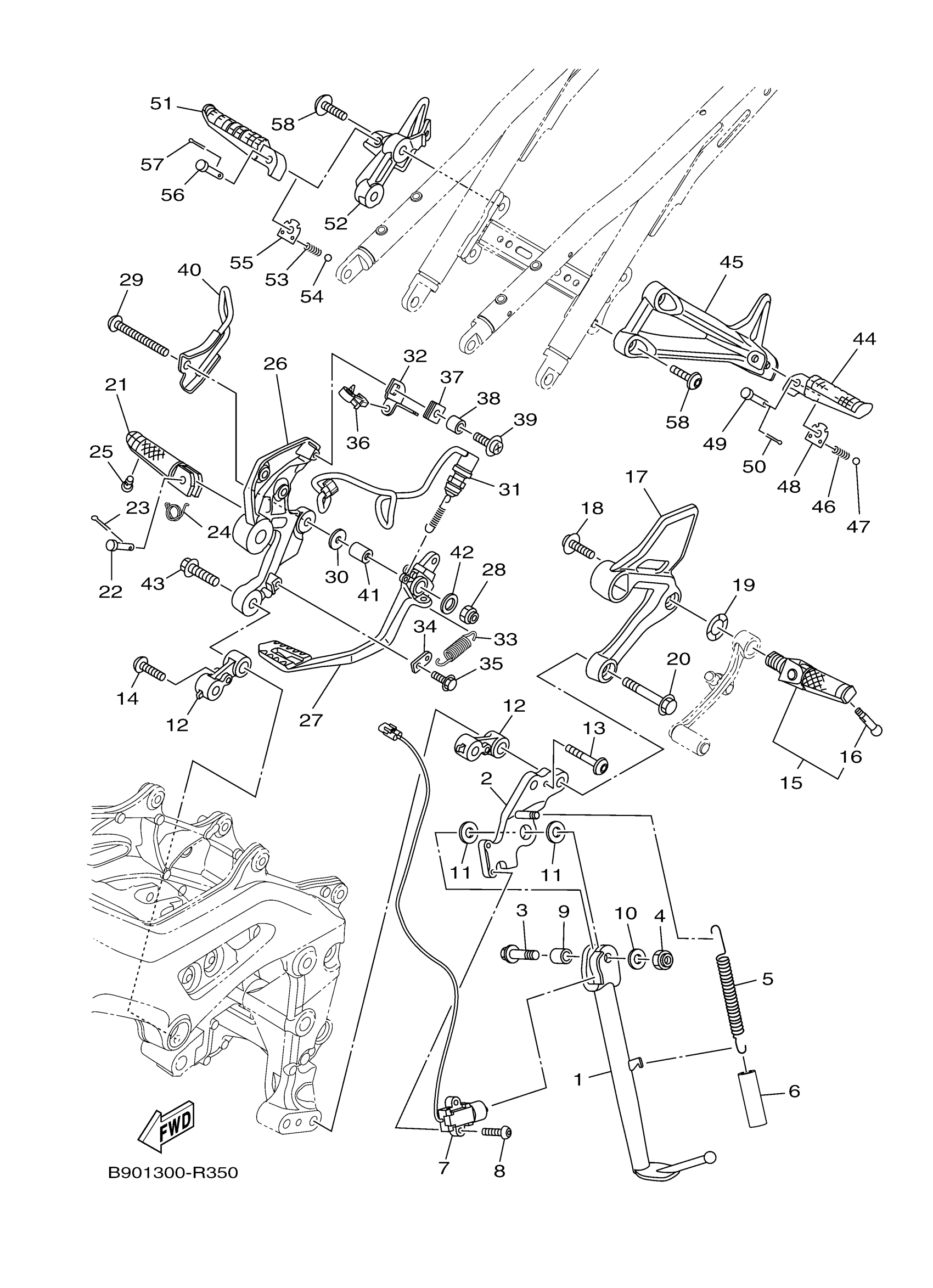

Yamaha XSR900LW (XSR900) BAEA 2020 STAND & FOOTREST Diagram

#

Description
Price

1

STAND, SIDE

1RC-27311-00-00

$98.99

2

BRACKET, SIDE STAND

1RC-27321-00-00

Unavailable

3

BOLT (4R4)

90105-10188-00

$13.49

4

NUT, U

95617-10100-00

$8.49

5

SPRING, TENSION

90506-20032-00

Unavailable

6

HOSE (L60)

90445-197J2-00

$4.61

7

SWITCH, SIDE STAND

1RC-82566-51-00

$67.99

8

BOLT, BUTTON HEAD

92014-05020-00

Unavailable

9

COLLAR

90387-10050-00

Unavailable

10

WASHER, PLATE

90201-10035-00

$4.19

11

WASHER, PLATE

90201-17018-00

Unavailable

12

BRACKET, ADAPTER 1

1RC-274A3-00-00

$19.99

13

BOLT, BUTTON HEAD

92012-06040-00

$3.28

14

BOLT, BUTTON HEAD

92012-06030-00

$3.08

15

FRONT FOOTREST ASSY (LEFT)

1RC-27410-00-00

$83.99

16

BOLT

90109-08202-00

Unavailable

17

BRACKET 2

1RC-27442-00-00

Unavailable

18

BOLT,HEX. SOCKET BUTTON

90111-10040-00

Unavailable

19

WASHER, WAVE(46X)

90206-17084-00

Unavailable

20

BOLT, FLANGE

90105-10377-00

Unavailable

21

FOOTREST

3XV-27461-02-00

Unavailable

22

PIN, CLEVIS

91702-08040-00

Unavailable

23

PIN, COTTER

91490-25020-00

Unavailable

24

SPRING, TORSION (22N)

90508-20572-00

Unavailable

25

BOLT

90109-08202-00

Unavailable

26

BRACKET 3

1RC-27443-00-00

Unavailable

27

PEDAL, BRAKE

1RC-27200-00-00

Unavailable

28

NUT, SELF-LOCKING (3Y2)

90185-08089-00

Unavailable

29

BOLT

90111-08028-00

Unavailable

30

WASHER 6154275100

90201-08103-00

Unavailable

31

STOP SWITCH ASSY

B90-82530-01-00

Unavailable

32

STAY, STOP SWITCH

1RC-2144G-00-00

Unavailable

33

SPRING, TENSION

90506-23008-00

Unavailable

34

BRACKET 1

1RC-27432-00-00

Unavailable

35

BOLT, FLANGE

95812-06010-00

Unavailable

36

CLAMP(3XV)

90464-15157-00

Unavailable

37

GROMMET(4SV)

90480-12607-00

Unavailable

38

COLLAR

90387-06M16-00

Unavailable

39

SCREW, PANHEAD W/WASHER (22F)

90159-06082-00

Unavailable

40

GUIDE, WIRE

1RC-27267-00-00

Unavailable

41

COLLAR

90387-08102-00

Unavailable

42

WASHER, PLATE

90201-08048-00

Unavailable

43

BOLT, FLANGE

90105-10252-00

Unavailable

44

FOOTREST, REAR 1

3VR-27431-02-00

Unavailable

45

BRACKET 4

1RC-2741L-02-00

Unavailable

46

SPRING, COMPRESSION (22N)

90501-12743-00

Unavailable

47

BALL

93501-04011-00

Unavailable

48

WASHER, SPECIAL

5VX-27437-00-00

Unavailable

49

PIN, CLEVIS

91702-08040-00

Unavailable

50

PIN, COTTER

91490-25020-00

Unavailable

51

FOOTREST, REAR 2

3VR-27441-02-00

Unavailable

52

BRACKET 5

1RC-2742L-02-00

Unavailable

53

SPRING, COMPRESSION (22N)

90501-12743-00

Unavailable

54

BALL

93501-04011-00

Unavailable

55

WASHER, SPECIAL

5VX-27437-00-00

Unavailable

56

PIN, CLEVIS

91702-08040-00

Unavailable

57

PIN, COTTER

91490-25020-00

Unavailable

58

BOLT, BUTTON

92017-08020-00

Unavailable
