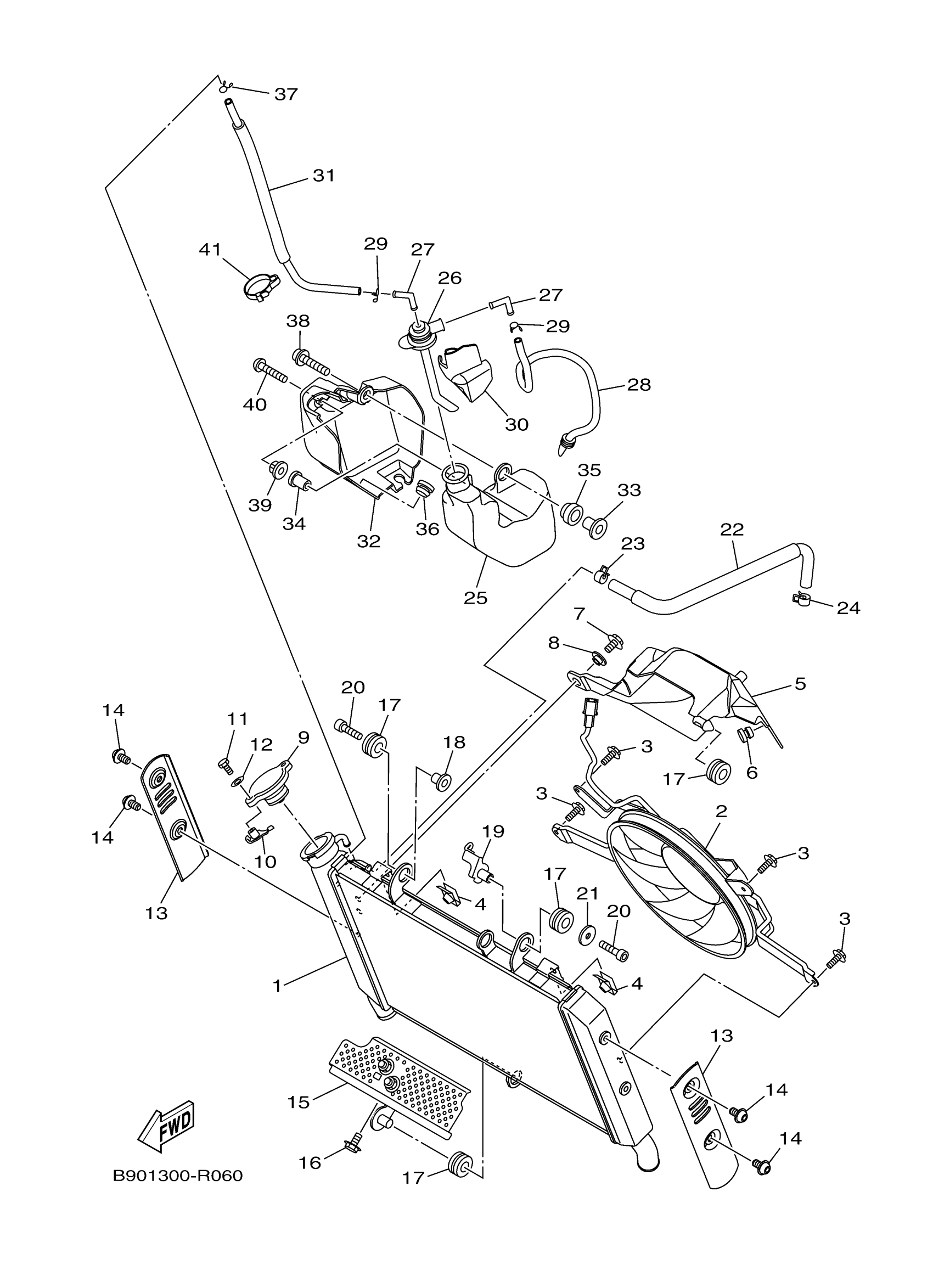

Yamaha XSR900LW (XSR900) BAEA 2020 RADIATOR & HOSE Diagram

#

Description
Price

1

RADIATOR COMP

2PP-12461-00-00

$352.99

2

BLOWER ASSY

1RC-12405-02-00

Unavailable

3

BOLT, BLOWER HOLDING

3D8-12675-00-00

$7.99

4

PLATE

1AA-12535-00-00

$14.49

5

COVER, RADIATOR

1RC-12467-00-00

$18.49

6

PLUG(7Y6)

90338-07157-00

$7.49

7

BOLT, FLANGE

95812-06014-00

$5.60

8

COLLAR (3L1)

90387-07717-00

$8.49

9

CAP, RADIATOR

4FL-12462-00-00

$62.99

10

STOPPER

5FC-12437-00-00

$14.49

11

BOLT(4GV)

97017-05012-00

$8.49

12

WASHER(1RW)

92907-05600-00

$3.78

13

RADIATOR COVER ASSY1

B90-1240J-00-00

$57.99

14

BOLT,HEX. SOCKET BUTTON

90111-06160-00

$4.67

15

STAY 1

1RC-12637-00-00

Unavailable

16

BOLT, FLANGE

95817-06012-00

Unavailable

17

GROMMET (29L)

90480-15363-00

Unavailable

18

COLLAR

90387-06158-00

Unavailable

19

GUIDE, CABLE 2

1RC-26132-00-00

Unavailable

20

BOLT, HEXAGON SOCKET HEAD(1VJ)

90110-06138-00

Unavailable

21

WASHER, PLATE

90201-06033-00

Unavailable

22

HOSE 1

1RC-1243A-00-00

Unavailable

23

CLIP (3G0)

90467-10039-00

Unavailable

24

CLIP (3G0)

90467-10039-00

Unavailable

25

TANK, RECOVERY

1RC-21871-00-00

Unavailable

26

CAP

1RC-21875-01-00

Unavailable

27

ELBOW

1RC-21828-00-00

Unavailable

28

PIPE, BREATHER

1RC-21826-00-00

Unavailable

29

CLIP (16G)

90467-08021-00

Unavailable

30

PROTECTOR 1

1RC-22825-00-00

Unavailable

31

PIPE 1

1RC-21816-00-00

Unavailable

32

COVER

1RC-2172W-00-00

Unavailable

33

COLLAR

90387-06285-00

Unavailable

34

NUT(1KT)

90179-05523-00

Unavailable

35

COLLAR

1RC-21749-00-00

Unavailable

36

GROMMET (420)

90480-14153-00

Unavailable

37

CLIP (16G)

90467-08021-00

Unavailable

38

BOLT, HEXAGON SOCKET HEAD

90110-06233-00

Unavailable

39

COLLAR

1RC-21748-00-00

Unavailable

40

BOLT, BUTTON HEAD

92012-05030-00

Unavailable

41

CLAMP(6U0)

90464-07M40-00

Unavailable
