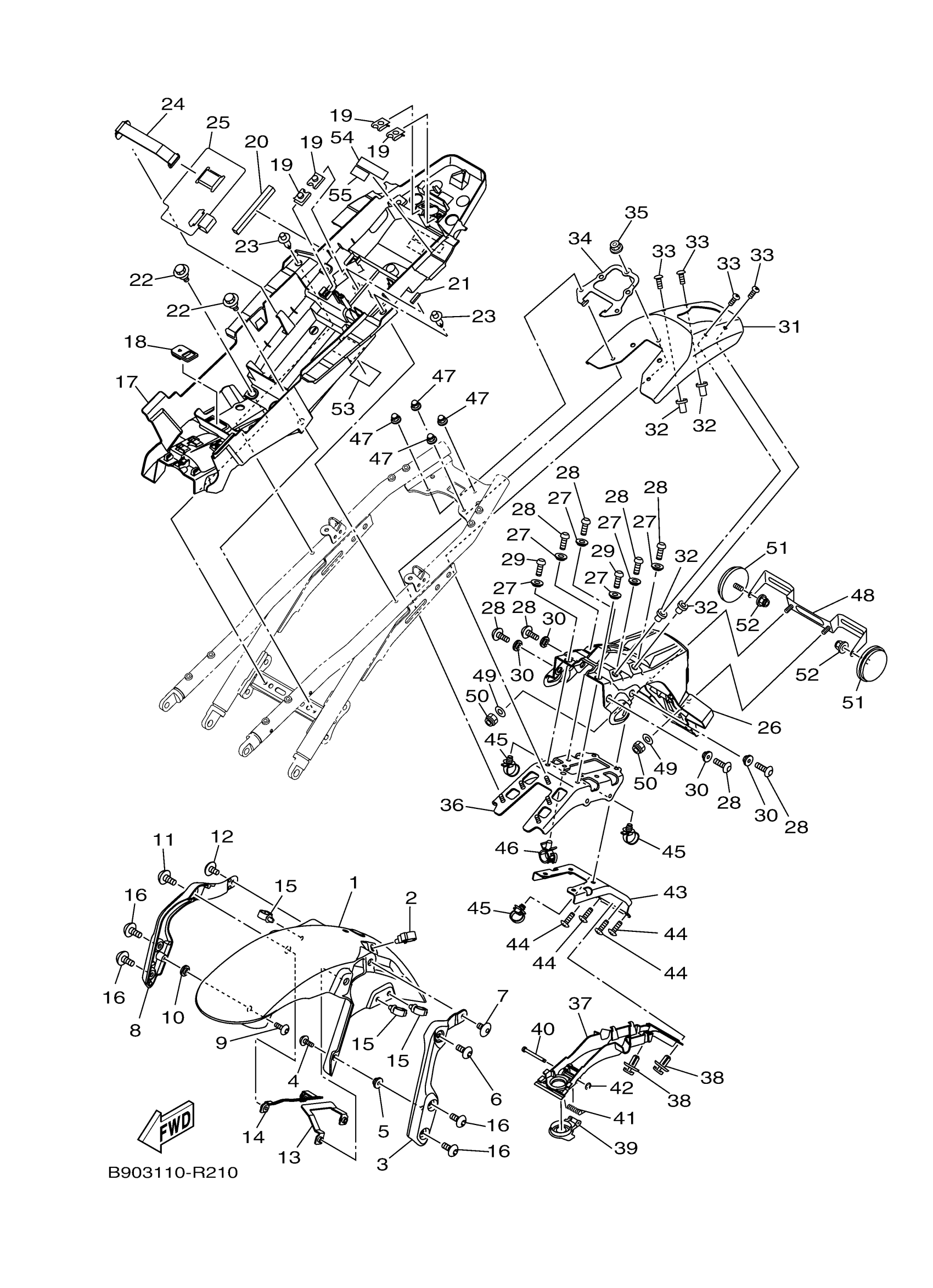

Yamaha XSR900LW (XSR900) BAEA 2020 FENDER Diagram
#
1
FENDER, FRONT
B90-21511-00-P4
Unavailable
13
STAY, FENDER 1
B90-21513-00-00
Unavailable
14
STAY, FENDER 2
B90-21514-00-00
Unavailable
17
BOX, BATTERY 1
B90-8212B-00-00
Unavailable
18
PLUG, BLIND
2DR-26199-00-00
Unavailable
19
NUT, SPRING(4ES)
90183-06069-00
Unavailable
20
DAMPER
32D-84553-00-00
Unavailable
21
DAMPER
4B5-21717-00-00
Unavailable
22
BOLT
90109-06202-00
Unavailable
23
RIVET
90269-07007-00
Unavailable
24
BAND, BATTERY
1RC-82137-00-00
Unavailable
25
FLAP
B90-21691-00-00
Unavailable
26
GUARD, MUD
B90-21629-00-00
Unavailable
27
COLLAR
90387-06040-00
Unavailable
28
BOLT, BUTTON HEAD
92017-06016-00
Unavailable
29
BOLT, BUTTON HEAD
92012-06016-00
Unavailable
30
COLLAR
90387-06242-00
Unavailable
31
STAY 2
B90-2164G-10-UJ
Unavailable
32
NUT(1KT)
90179-05523-00
Unavailable
33
BOLT
2CR-28333-00-00
Unavailable
34
SPACER
B90-21998-00-00
Unavailable
35
NUT, FLANGE(4MV)
95707-06500-00
Unavailable
36
STAY 1
B90-2164F-00-00
Unavailable
37
COVER, REAR FENDER 2
B90-2163E-01-00
Unavailable
38
RIVET(4JH)
90269-07076-00
Unavailable
39
CAP, ROTOR
1RC-2465B-01-00
Unavailable
40
PIN
90249-03002-00
Unavailable
41
SPRING, TORSION
90508-09007-00
Unavailable
42
CIRCLIP (604)
93430-02001-00
Unavailable
43
STAY, PLATE
B90-21682-00-00
Unavailable
44
SCREW, ROUND TAPPING
90160-05012-00
Unavailable
45
CLAMP
90464-30011-00
Unavailable
46
CLAMP
90464-14013-00
Unavailable
47
NUT, CROWN
90176-06016-00
Unavailable
48
BRACKET, LICENSE
1RC-84751-10-00
Unavailable
49
WASHER, PLAIN (646)
92990-06600-00
Unavailable
50
NUT, SELF-LOCKING
95617-06100-00
Unavailable
51
REFLECTOR, REAR 1
449-85131-02-00
Unavailable
52
NUT, FLANGE(3GM)
95707-05500-00
Unavailable
53
LABEL, TIRE
14B-21668-01-00
Unavailable
54
LABEL, CAUTION
3JJ-28446-A2-00
Unavailable
55
LABEL, CAUTION
3TB-24877-A1-00
Unavailable
