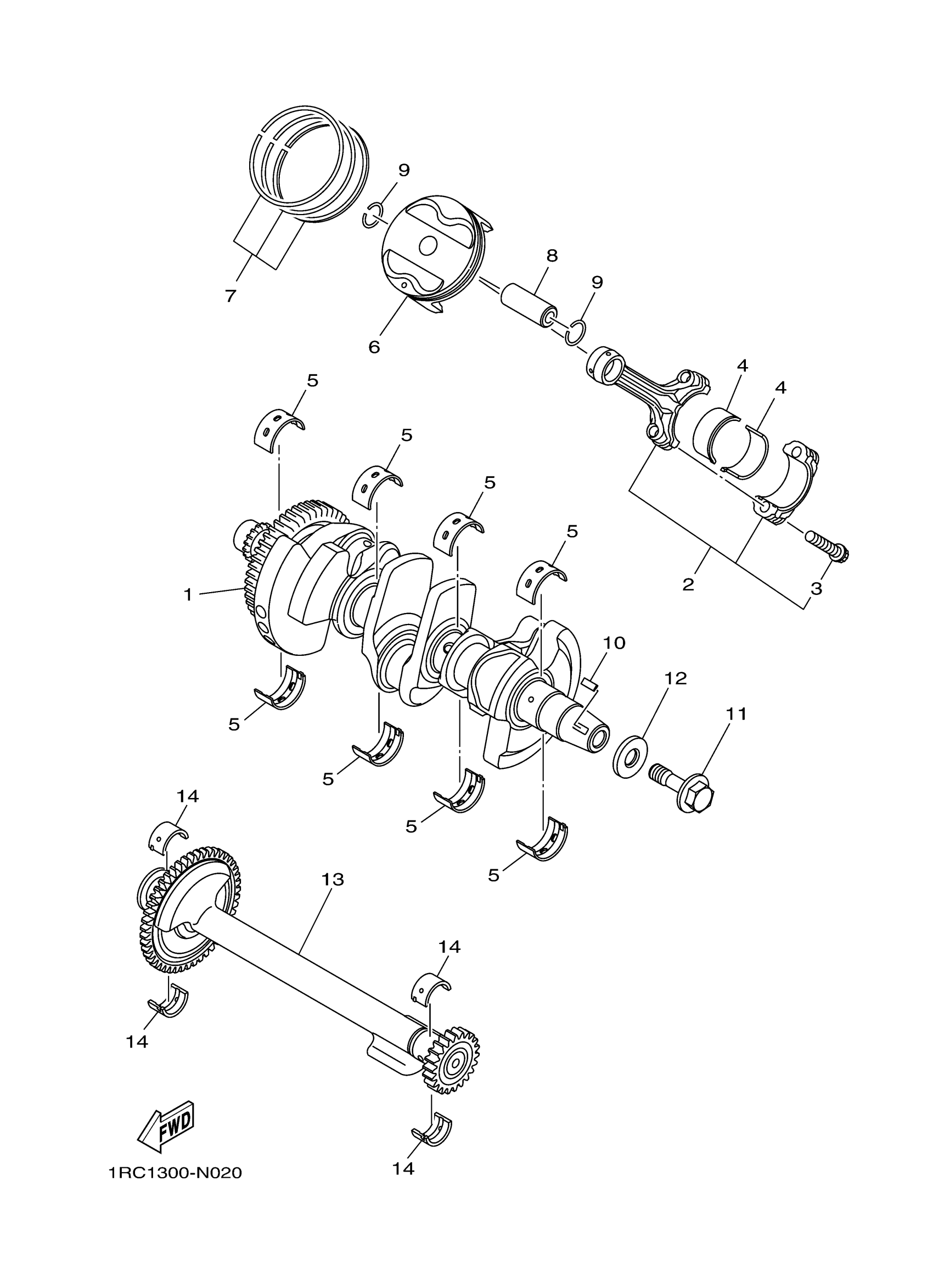

Yamaha XSR900LW (XSR900) BAEA 2020 CRANKSHAFT & PISTON Diagram

#

Description
Price

1

CRANKSHAFT ASSY

1RC-11400-00-00

$873.99

2

CONNECTING ROD ASSY

1RC-11650-01-00

$158.99

3

BOLT, CONNECTING ROD

1RC-11654-00-00

$3.33

4

PLANE BEARING, CONNECTING ROD

1RC-11656-00-00

$10.99

4

PLANE BEARING, CONNECTING ROD

1RC-11656-10-00

Unavailable

4

PLANE BEARING, CONNECTING ROD

1RC-11656-20-00

Unavailable

4

PLANE BEARING, CONNECTING ROD

1RC-11656-30-00

$11.99

5

PLANE BEARING, CRANKSHAFT 1

5VY-11416-00-00

$20.99

5

PLANE BEARING, CRANKSHAFT 1

5VY-11416-10-00

$20.99

5

PLANE BEARING, CRANKSHAFT 1

5VY-11416-20-00

$20.99

5

PLANE BEARING, CRANKSHAFT 1

5VY-11416-30-00

$20.99

5

PLANE BEARING, CRANKSHAFT 1

5VY-11416-A0-00

$20.99

6

PISTON (STD)

1RC-11631-00-00

$112.99

7

PISTON RING SET (STD)

1RC-11603-01-00

Unavailable

8

PIN, PISTON

39P-11633-00-00

$28.99

9

CIRCLIP

93450-18157-00

Unavailable

10

KEY, WOODRUFF (26H)

90280-05029-00

Unavailable

11

BOLT, WASHER BASED

90105-126A8-00

Unavailable

12

WASHER, PLATE

90201-12008-00

Unavailable

13

BALANCER ASSY

1RC-11500-01-00

Unavailable

14

PLANE BEARING, BALANCE WEIGHT

2S3-11413-00-00

Unavailable

14

PLANE BEARING, BALANCE WEIGHT

2S3-11413-10-00

Unavailable

14

PLANE BEARING, BALANCE WEIGHT

2S3-11413-20-00

Unavailable

14

PLANE BEARING, BALANCE WEIGHT

2S3-11413-30-00

Unavailable

14

PLANE BEARING, BALANCE WEIGHT

2S3-11413-40-00

Unavailable
