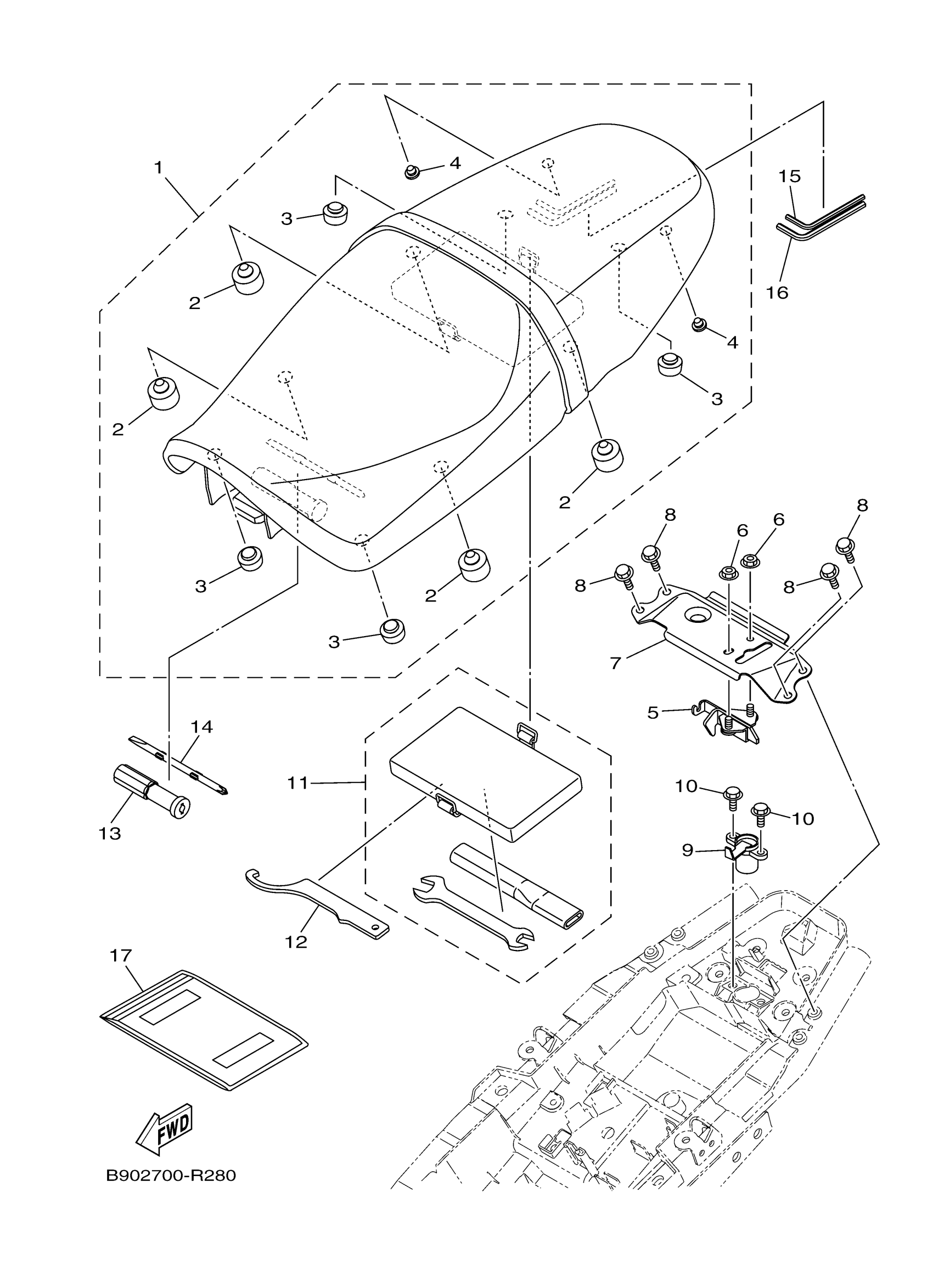

Yamaha XSR900JR (XSR900) B90T 2018 SEAT Diagram

#

Description
Price

1

DOUBLE SEAT ASSY

B90-24730-11-00

Unavailable

2

STOPPER, MAIN STAND

4GL-27114-00-00

Unavailable

3

STOPPER, MAIN STAND

5UY-27114-00-00

$1.51

4

PLUG(7Y6)

90338-07157-00

$5.39

5

SEAT LOCK ASSY

B90-24780-00-00

$24.91

6

NUT, FLANGE

95702-06500-00

$1.95

7

BRACKET, SEAT LOCK

1RC-2478X-00-00

$16.86

8

BOLT, FLANGE

95022-06016-00

$3.11

9

ROTOR SET

1RC-W2470-00-00

$67.58

10

BOLT, FLANGE

95022-06014-00

$2.46

11

TOOL KIT

1RC-28100-00-00

Unavailable

12

SPANNER, SPECIAL

1RC-28135-00-00

$8.88

13

GRIP, DRIVER

2H7-28151-00-00

$5.55

14

DRIVER

2GV-28152-00-00

$3.68

15

WRENCH, HEXAGON 8

23P-28164-00-00

$2.55

16

WRENCH, HEXAGON 8

14B-28164-00-00

Unavailable

17

POUCH

4KG-28186-11-00

Unavailable
