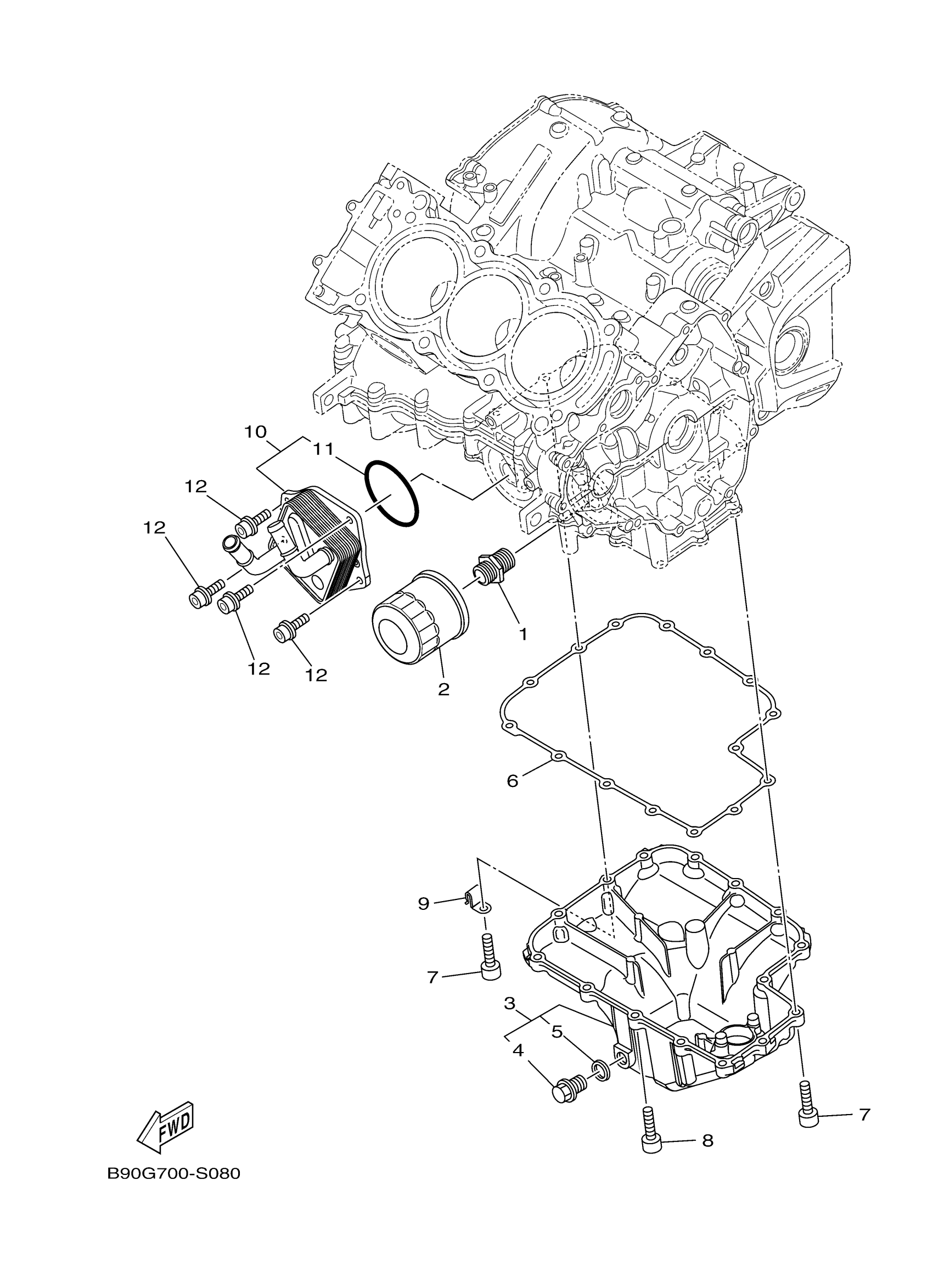

Yamaha XSR900JR (XSR900) B90T 2018 OIL CLEANER Diagram

#

Description
Price

1

BOLT, UNION

90401-20008-00

$23.99

2

ELEMENT ASSY, OIL

5GH-13440-90-00

Unavailable

3

STRAINER COVER ASSY

B56-13400-10-00

$267.99

4

PLUG, STRAIGHT SCREW(3FA)

90340-14132-00

$3.98

5

GASKET

214-11198-01-00

$3.17

6

GASKET, STRAINER COVER

BD5-13414-00-00

Unavailable

7

BOLT,SOCKET

91317-06025-00

$5.60

8

BOLT,SOCKET

91317-06025-00

$5.60

9

CLAMP

90465-06025-00

Unavailable

10

OIL COOLER ASSY

BS2-13470-10-00

$174.99

11

O-RING

2HC-13473-00-00

$7.99

12

BOLT, HEXAGON SOCKET HEAD

90110-06163-00

$10.49
