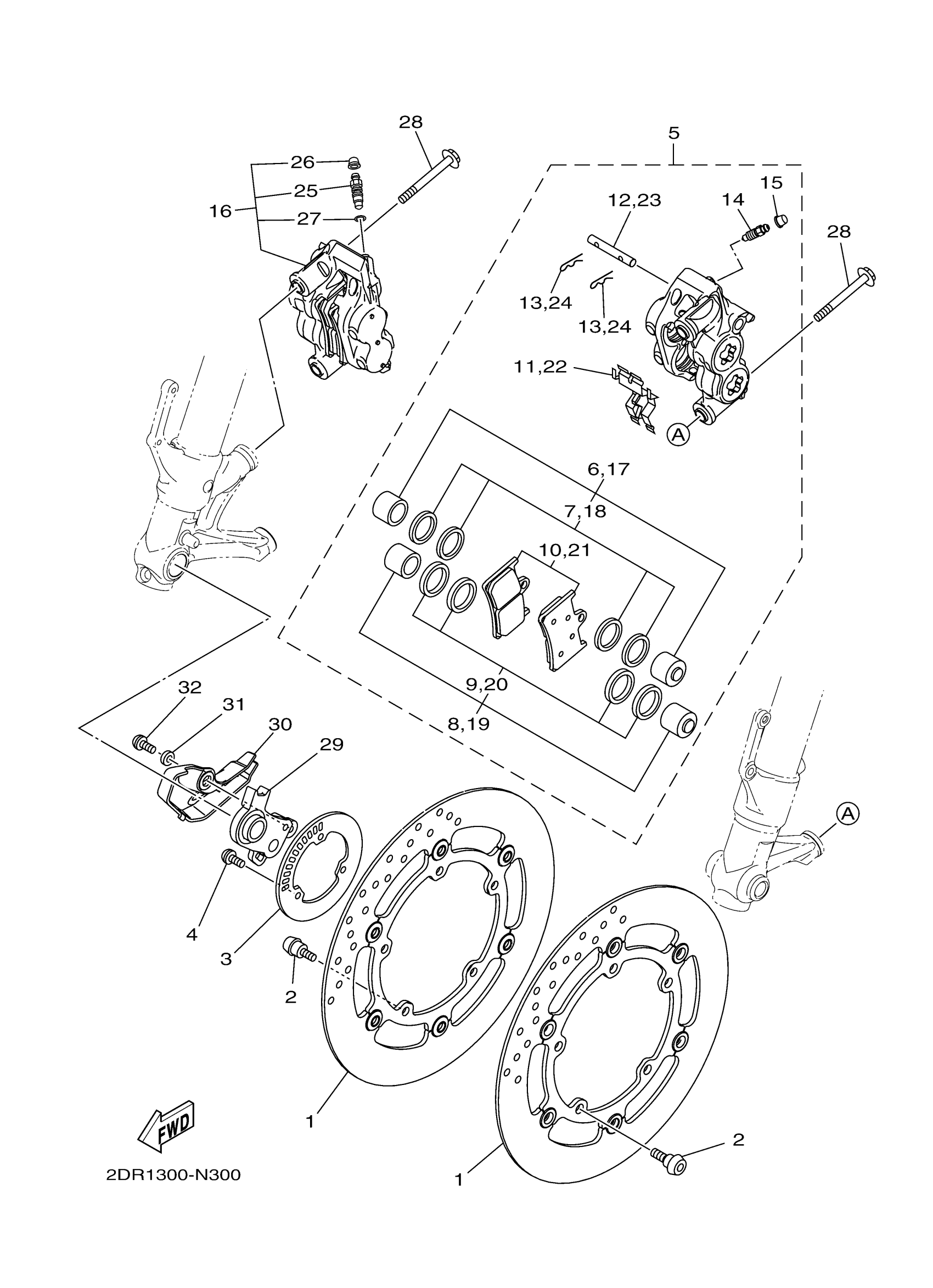

Yamaha XSR900JR (XSR900) B90T 2018 FRONT BRAKE CALIPER Diagram

#

Description
Price

1

DISK BRAKE ASSY

1RC-2581T-00-00

$137.08

2

BOLT

90109-06254-00

$2.57

3

ROTOR, SENSOR

2DR-2517G-00-00

$81.50

4

SCREW

90149-05030-00

$1.99

5

CALIPER ASSY (LEFT)

1RC-2580T-00-00

$514.68

6

PISTON ASSY, CALIPER

4SV-25802-10-00

$186.12

7

CALIPER SEAL KIT

3GM-25803-10-00

$44.91

8

PISTON ASSY, CALIPER

4SV-25802-00-00

$144.17

9

CALIPER SEAL KIT

3MA-25803-10-00

$43.65

10

BRAKE PAD KIT

5SL-25805-00-00

$58.14

11

SUPPORT, PAD

13S-25919-00-00

$20.44

12

PIN, PAD

4SV-25924-00-00

$34.81

13

CLIP, PAD PIN

3GM-25925-00-00

$9.15

14

SCREW, BLEED

1J3-25824-00-00

$4.44

15

CAP

306-25825-01-00

$8.14

16

CALIPER ASSY (RIGH

2DR-2580U-00-00

Unavailable

17

PISTON ASSY, CALIPER

4SV-25802-10-00

$186.12

18

CALIPER SEAL KIT

3GM-25803-10-00

$44.91

19

PISTON ASSY, CALIPER

4SV-25802-00-00

$144.17

20

CALIPER SEAL KIT

3MA-25803-10-00

$43.65

21

BRAKE PAD KIT

5SL-25805-00-00

$58.14

22

SUPPORT, PAD

13S-25919-00-00

$20.44

23

PIN, PAD

4SV-25924-00-00

$34.81

24

CLIP, PAD PIN

3GM-25925-00-00

$9.15

25

SCREW, BLEED

5VS-25824-00-00

Unavailable

26

CAP

306-25825-01-00

$8.14

27

RUBBER, BUSHING

5VS-25975-00-00

Unavailable

28

BOLT, FLANGE

90105-10440-00

Unavailable

29

HOUSING, SENSOR FR

2DR-2517A-00-00

Unavailable

30

PROTECTOR

2DR-27491-00-00

Unavailable

31

COLLAR

90387-06106-00

Unavailable

32

BOLT,HEX. SOCKET BUTTON

90111-06127-00

Unavailable
