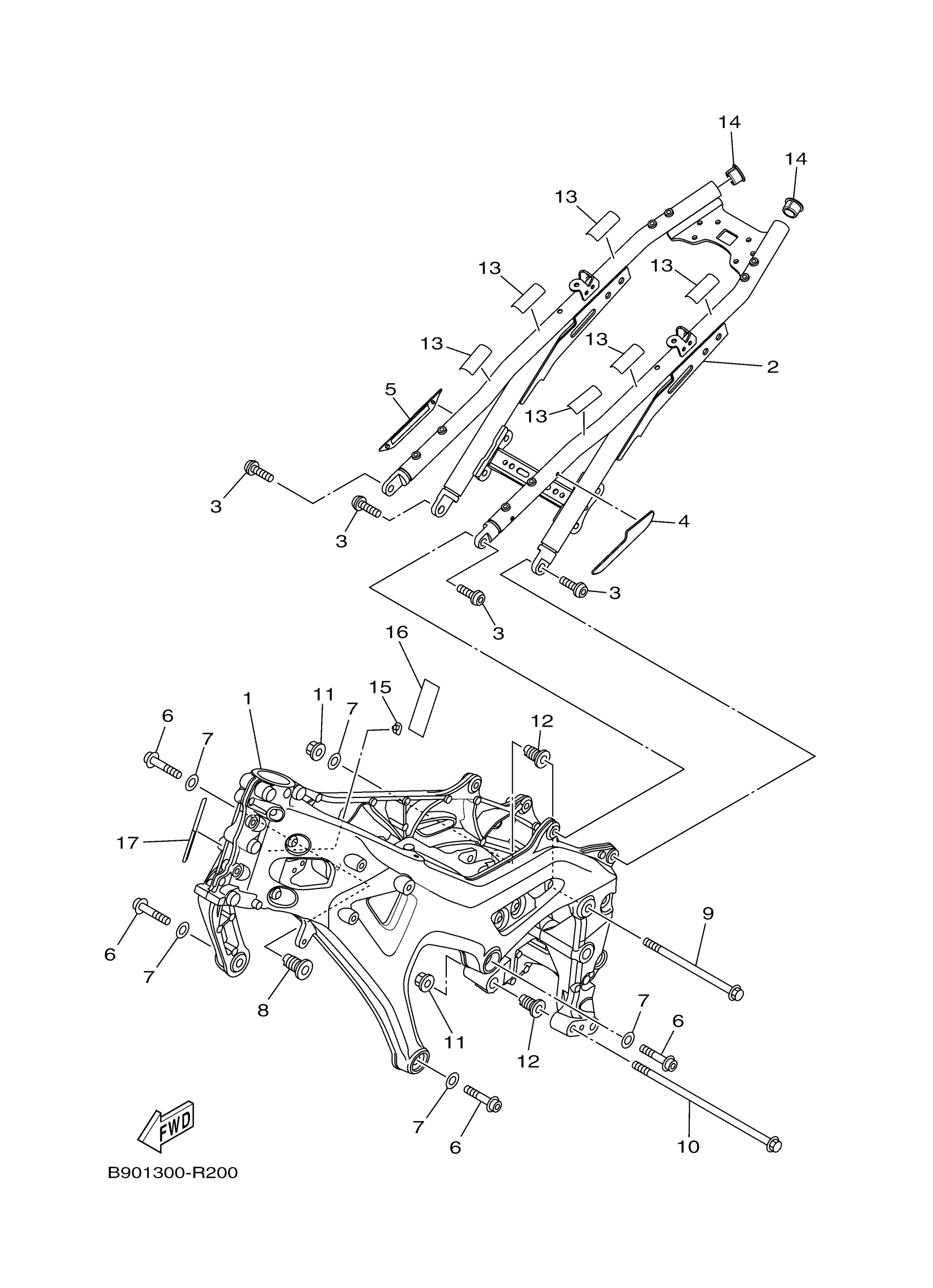

Yamaha XSR900JR (XSR900) B90T 2018 FRAME Diagram

#

Description
Price

1

FRAME COMP.

1RC-21110-80-00

Unavailable

2

REAR FRAME COMP.

B90-21190-00-00

$385.99

3

SCREW

90149-10060-00

$7.49

4

COVER 9

1RC-2117X-01-00

$7.99

5

COVER 10

1RC-2117Y-01-00

$8.99

6

BOLT, HEXAGON SOCKET HEAD

90110-10043-00

$4.41

7

WASHER, PLATE

90201-10075-00

$3.28

8

BOLT, ENGINE ADJUSTING

1RC-21495-00-00

Unavailable

9

BOLT, FLANGE

90105-10391-00

Unavailable

10

BOLT, FLANGE

90105-10437-00

Unavailable

11

NUT

90179-10024-00

$10.49

12

BOLT, ENGINE ADJUSTING

4C8-21495-00-00

Unavailable

13

SEAL

5VN-21268-00-00

Unavailable

14

PLUG(1FN)

90338-23172-00

$12.49

15

PLUG, BLIND

5VX-21289-00-00

$6.99

16

DAMPER

1HP-H2176-01-00

Unavailable

17

PROTECTOR

1RC-2117G-00-00

Unavailable
