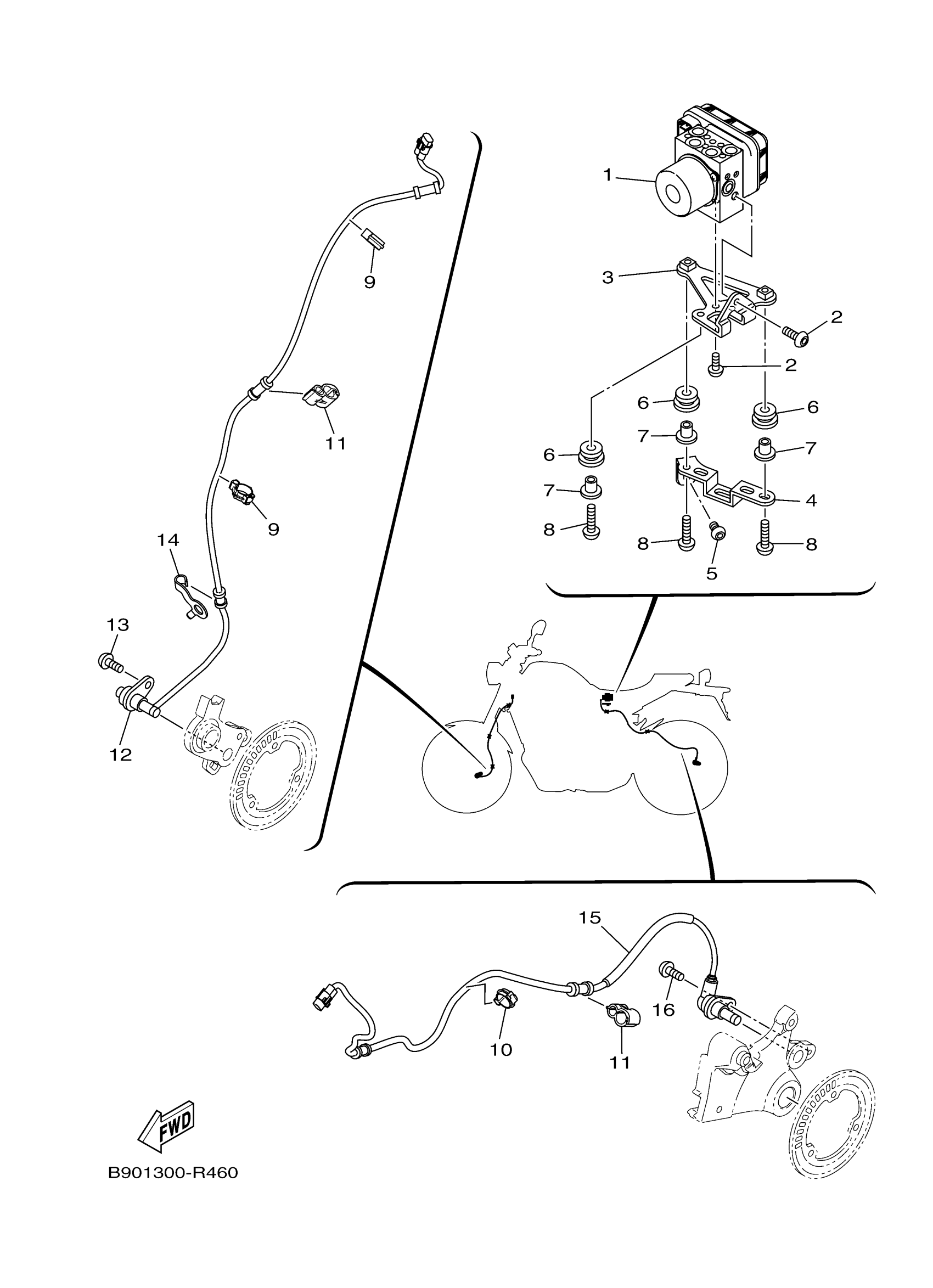

Yamaha XSR900JR (XSR900) B90T 2018 ELECTRICAL 3 Diagram

#

Description
Price

1

HYDRAULIC UNIT ASSY

B50-85930-05-00

Unavailable

2

BOLT, BUTTON HEAD

92012-06010-00

$4.30

3

BRACKET, UNIT

2DR-85991-00-00

Unavailable

4

BRACKET

2DR-85542-00-00

Unavailable

5

BOLT, BUTTON HEAD

92012-06010-00

$4.30

6

GROMMET(4FU)

90480-13567-00

$4.99

7

COLLAR

90387-06160-00

Unavailable

8

BOLT, BUTTON HEAD

92012-06020-00

$8.49

9

CLAMP

90464-12013-00

$8.49

10

CLAMP

90464-14003-00

Unavailable

11

CLAMP(4GL)

90464-10233-00

$7.49

12

WHEEL SENSOR ASSY, FRONT

B90-85970-01-00

$139.99

13

BOLT, BUTTON HEAD(4NK)

92014-06014-00

$3.76

14

HOLDER, CABLE 1

2DR-23318-00-00

Unavailable

15

WHEEL SENSOR ASSY, REAR

2DR-85980-02-00

Unavailable

16

BOLT, BUTTON HEAD(4NK)

92014-06014-00

$3.76
