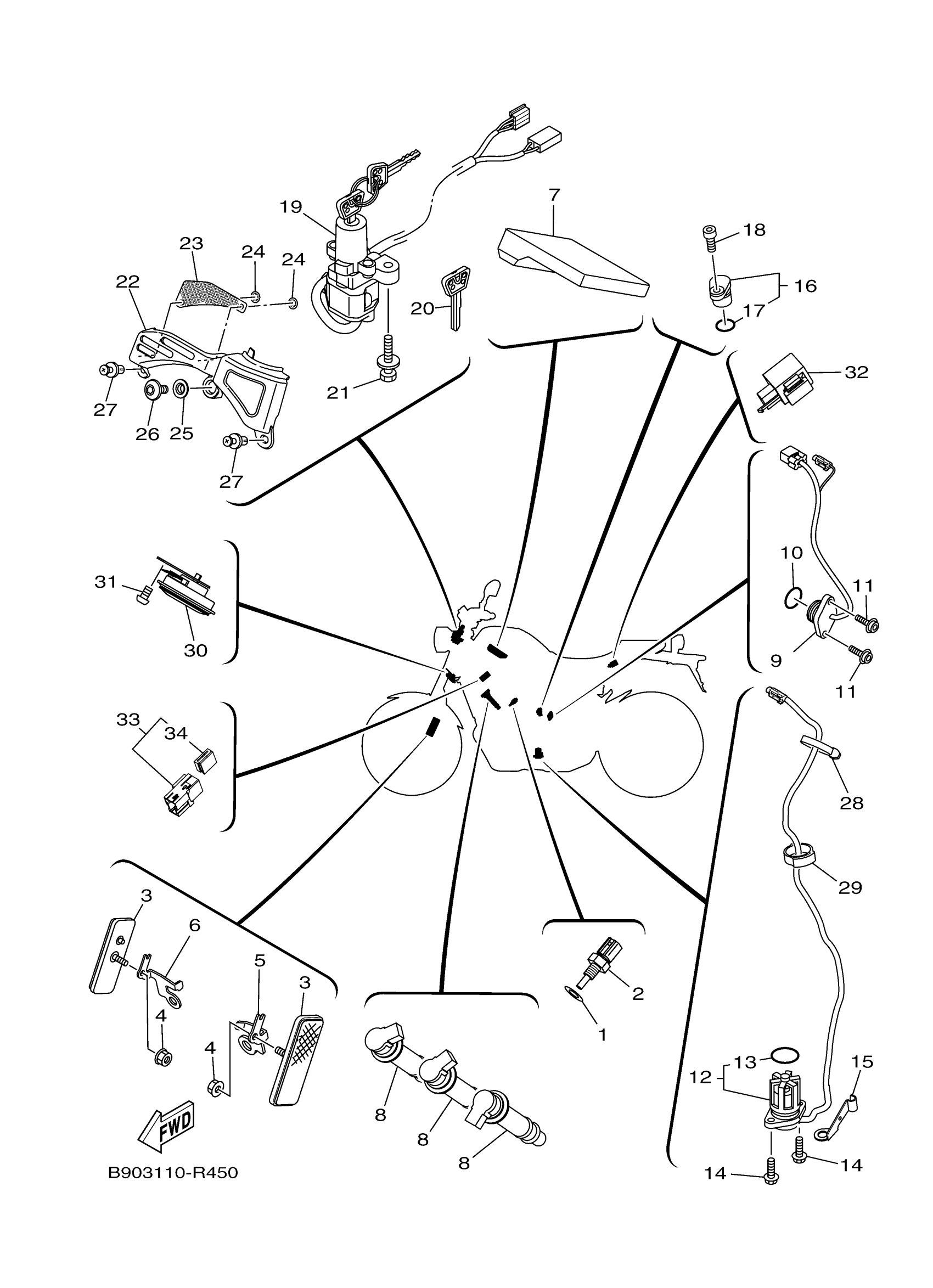

Yamaha XSR900JR (XSR900) B90T 2018 ELECTRICAL 2 Diagram

#

Description
Price

1

GASKET

90430-10004-00

$7.49

2

THERMO UNIT

52B-H3591-00-00

$34.99

3

FRONT REFLECTOR ASSY

11H-85110-01-00

$27.99

4

NUT, FLANGE

95702-05500-00

$0.38

5

BRACKET, REFLECTOR 1

1RC-85112-00-00

Unavailable

6

BRACKET, REFLECTOR 2

1RC-85122-00-00

Unavailable

7

ENGINE CONTROL UNIT ASSY

B90-8591A-70-00

Unavailable

8

IGNITION COIL ASSY

1RC-82310-00-00

Unavailable

9

NEUTRAL SWITCH ASSY

1RC-82540-01-00

$85.99

10

O-RING

93210-21001-00

$5.60

11

BOLT, HEXAGON SOCKET HEAD

90110-05038-00

$7.49

12

OIL LEVEL GAUGE ASSY

5S7-85720-00-00

$111.99

13

O-RING

5VY-8A8E0-00-00

$14.49

14

BOLT, FLANGE

95022-06016-00

$3.62

15

CLAMP

90465-08053-00

Unavailable

16

PLUG, BLIND

3P6-15399-00-00

Unavailable

17

O-RING (22U)

93210-15566-00

Unavailable

18

BOLT,SOCKET

91317-06016-00

Unavailable

19

MAIN SWITCH STEERING LOCK

B90-82501-01-00

Unavailable

20

BLANK KEY

4BH-82511-09-00

Unavailable

21

BOLT

90109-08196-00

Unavailable

22

COVER, MAIN SWITCH

B90-82568-00-00

Unavailable

23

GRILLE, FRONT

B90-28309-00-00

Unavailable

24

NUT, SPRING (6E5)

90183-05M02-00

Unavailable

25

COLLAR

90387-09020-00

Unavailable

26

BOLT,HEX. SOCKET BUTTON

90111-06095-00

Unavailable

27

RIVET

90269-06018-00

Unavailable

28

CLAMP(4FM)

90464-15195-00

Unavailable

29

CLAMP

90464-16001-00

Unavailable

30

HORN

BS2-83371-00-00

Unavailable

31

BOLT, BUTTON HEAD

92017-06010-00

Unavailable

32

FLASHER RELAY ASSY

4C8-83350-12-00

Unavailable

33

RELAY ASSY (1ST-00)

1ST-81950-00-00

Unavailable

34

HOLDER, RELAY

5JJ-81952-00-00

Unavailable
