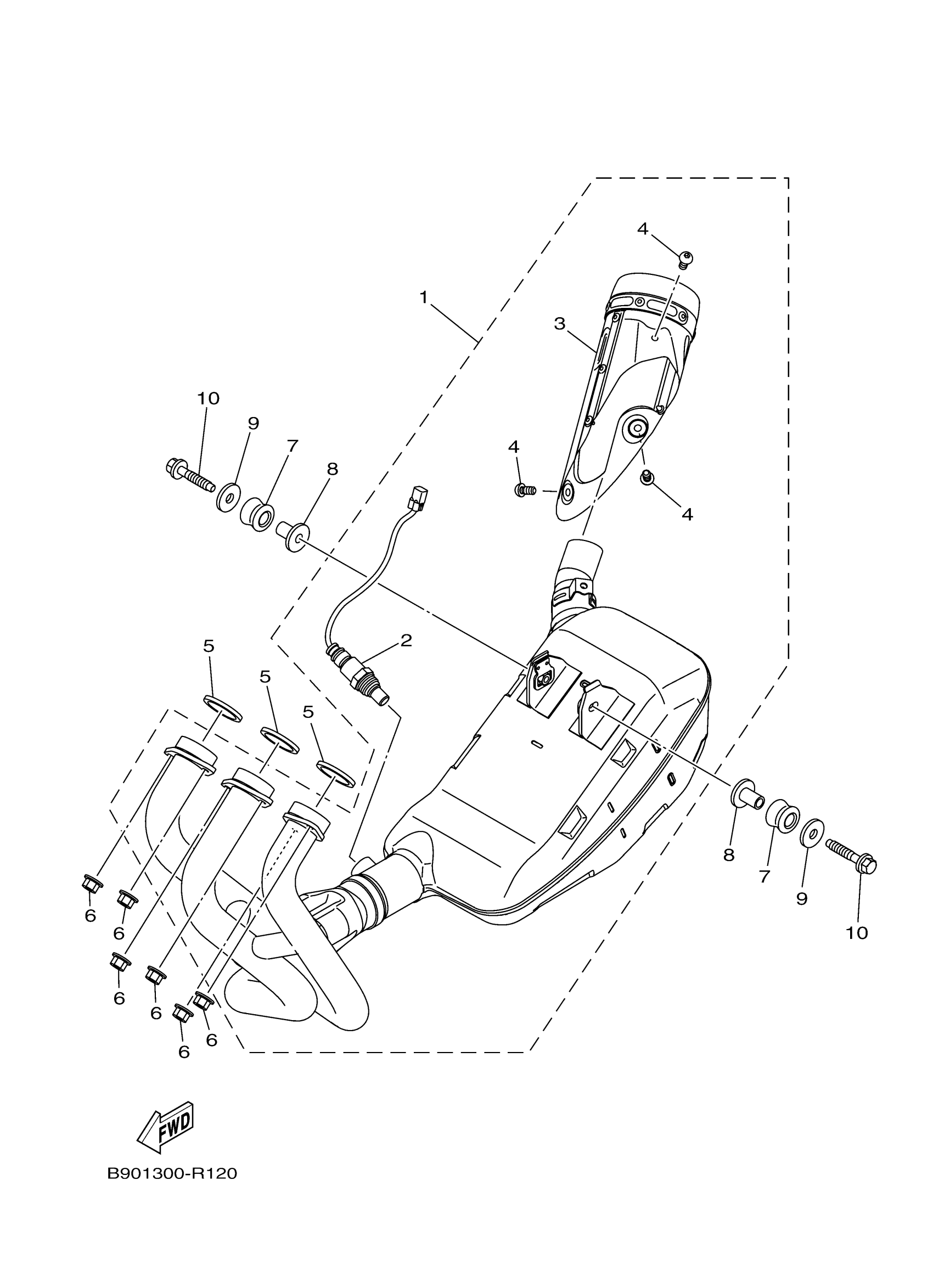

Yamaha XSR900HL (XSR900) B90H 2017 EXHAUST Diagram

#

Description
Price

1

MUFFLER ASSY 1

B90-14710-00-00

Unavailable

2

SENSOR, OXYGEN

59C-8592A-00-00

$356.30

3

PROTECTOR ASSY

B90-14708-00-00

Unavailable

4

BOLT,HEX. SOCKET BUTTON

90111-06100-00

$6.10

5

GASKET, EXHAUST PIPE

4FM-14613-00-00

$8.69

6

NUT (22U)

90179-08410-00

$4.72

7

DAMPER, MUFFLER

5VY-14747-00-00

$11.77

8

COLLAR

90387-08021-00

$7.94

9

WASHER, PLATE(3DM)

90201-087G2-00

$2.90

10

BOLT

90109-08170-00

$4.93
