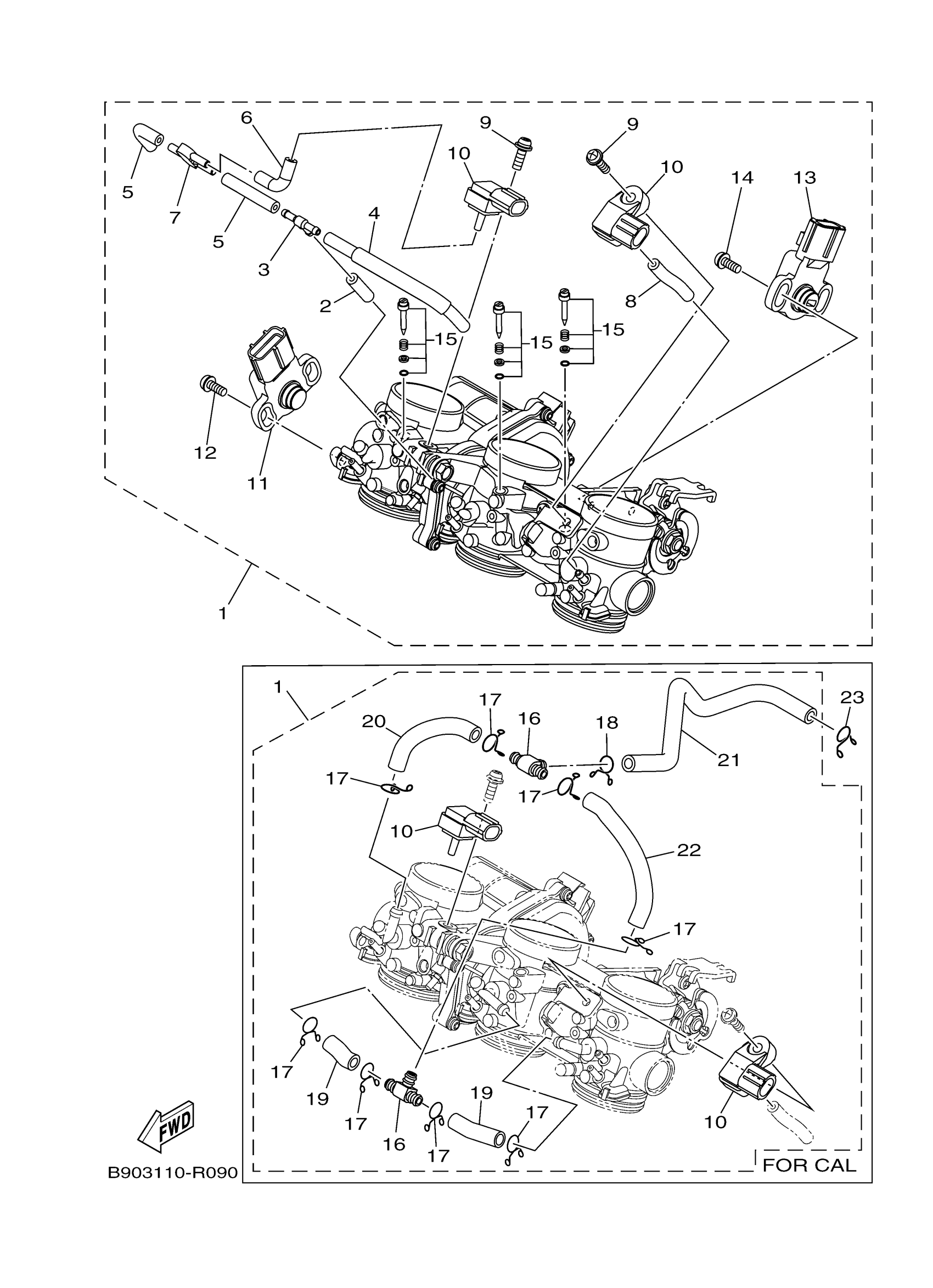

Yamaha XSR900GY (XSR900 60TH ANNIVERSARY) B90D 2016 INTAKE Diagram

#

Description
Price

1

THROTTLE BODY ASSY

B90-13750-11-00

Unavailable

2

HOSE, VACUUM SENSING 2

1RC-13544-00-00

Unavailable

3

. PIPE, JOINT 1

68V-24376-00-00

$13.59

4

HOSE, VACUUM SENSING 1

1RC-13542-00-00

Unavailable

5

PIPE

8FP-14349-20-00

$4.85

6

PIPE

8FP-14349-00-00

$9.65

7

NIPPLE

3XV-14251-00-00

$24.74

8

PIPE

8FP-14349-30-00

Unavailable

9

SCREW

2C0-14216-00-00

$2.98

10

SENSOR, PRESSURE

1WS-82380-00-00

$159.59

11

THROTTLE SENSOR AS

13S-85885-01-00

$114.75

12

SCREW

8CC-14216-10-00

$6.66

13

ACCELERATOR SENSOR

1MC-85884-01-00

$109.25

14

SCREW

5FL-14216-00-00

$3.64

15

PILOT SCREW SET

2C0-14105-00-00

$30.09

16

WAY 3

90413-06031-00

Unavailable

17

CLIP

90467-100A1-00

Unavailable

18

CLIP

90467-090A2-00

Unavailable

19

PIPE

14B-14465-00-00

Unavailable

20

PIPE

1RC-14466-00-00

Unavailable

21

PIPE

B90-1443J-10-00

Unavailable

22

PIPE

1RC-1444J-00-00

Unavailable

23

CLIP

90467-090A2-00

Unavailable
