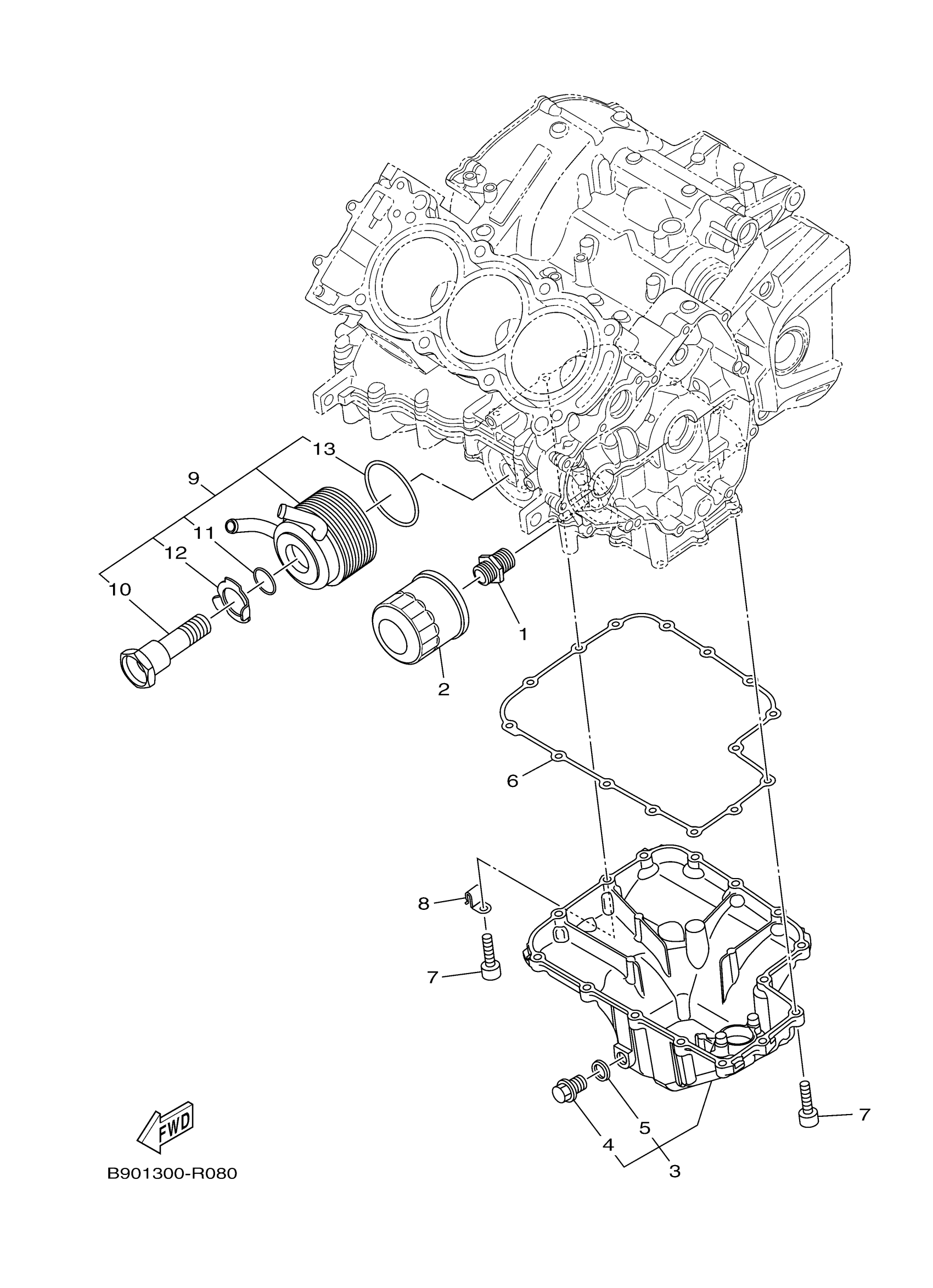

Yamaha XSR900GS (XSR900) B903 2016 OIL CLEANER Diagram

#

Description
Price

1

BOLT, UNION

90401-20008-00

$17.91

2

ELEMENT ASSY, OIL

5GH-13440-90-00

Unavailable

3

STRAINER COVER ASSY

B56-13400-10-00

$220.39

4

PLUG, STRAIGHT SCREW(3FA)

90340-14132-00

$2.47

5

GASKET

214-11198-01-00

$1.93

6

GASKET, STRAINER COVER

BD5-13414-00-00

$22.18

7

BOLT,SOCKET

91317-06025-00

$1.91

8

CLAMP

90465-06025-00

Unavailable

9

OIL COOLER ASSY

1RC-13470-00-00

$663.94

10

BOLT, UNION

5PW-12822-00-00

$79.18

11

O-RING

5PW-13473-00-00

$13.21

12

WASHER

5PW-13318-00-00

Unavailable

13

GASKET

5PW-13475-00-00

$35.30
