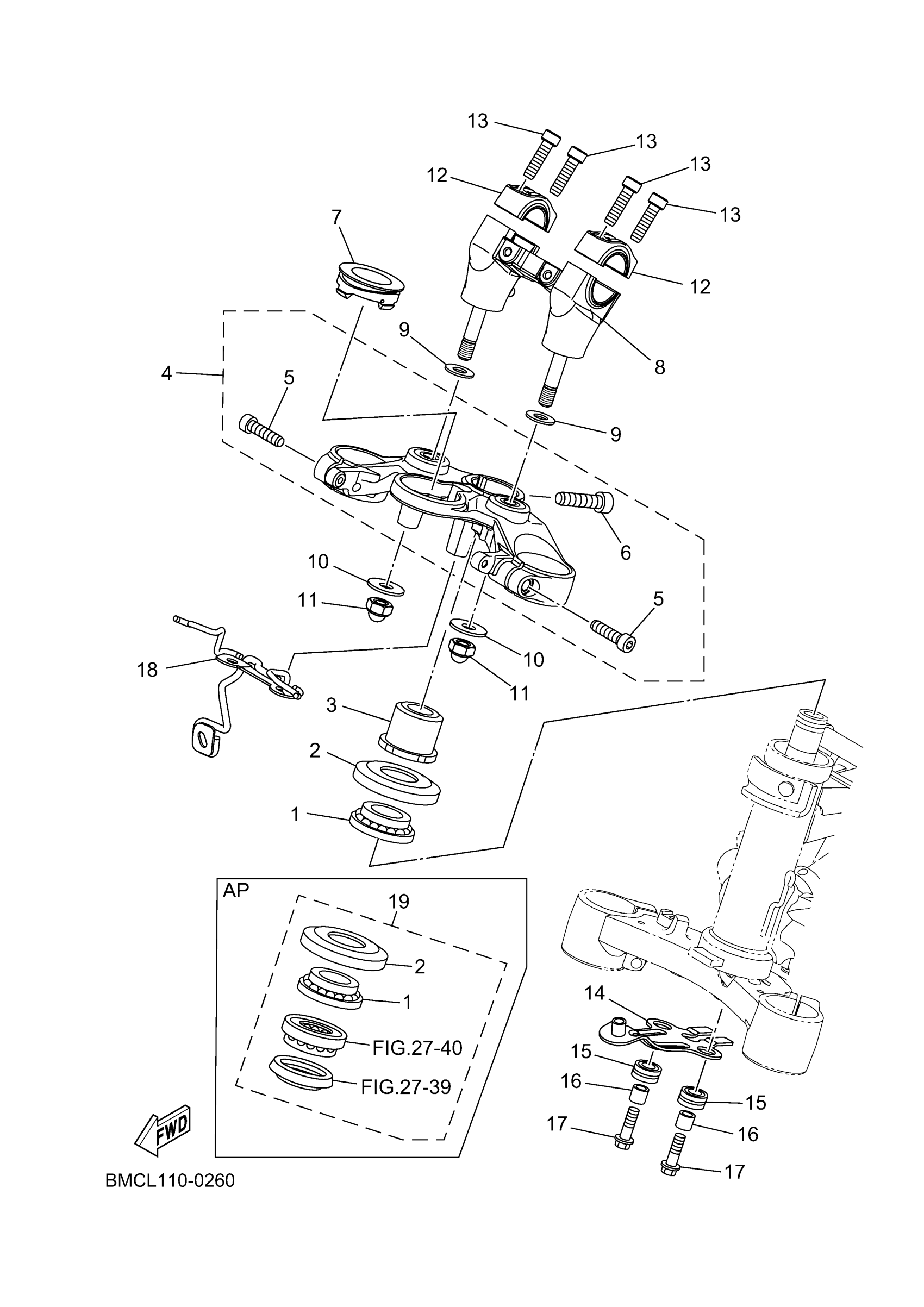

Yamaha XSR700SCB (XSR700 CA) BMCM 2025 STEERING Diagram

BEARING(3FV)

93399-99931-00

$57.99

COVER, BALL RACE 2

1W1-23416-00-00

Unavailable

NUT

1WS-23357-00-00

Unavailable

HANDLE CROWN COMP.

BAT-23430-00-00

$189.99

BOLT,SOCKET

91314-08030-00

$2.34

BOLT, HEXAGON SOCK

90110-10057-00

Unavailable

CAP, SWITCH

36P-82552-00-00

$15.49

HOLDER, HANDLE LOWER

B34-F3442-10-00

$227.99

958-69527-00 WASHER, PLAIN

92990-10200-00

$3.72

WASHER, PLATE

90201-10043-00

$2.22

NUT, CROWN

90176-10003-00

$9.49

HOLDER, HANDLE UPPER

B34-F3441-10-00

Unavailable

BOLT, SOCKET

91317-08030-00

$8.49

BRACKET 1

BEE-F334G-00-00

Unavailable

DAMPER

3C3-83513-00-00

$7.99

COLLAR (J10)

90387-06026-00

Unavailable

BOLT, FLANGE DEEP RECESS

95D37-06025-00

Unavailable

BRACKET 2

BEE-2334H-00-00

Unavailable

STEERING BEARING KIT

BVA-W000B-00-00

Unavailable
