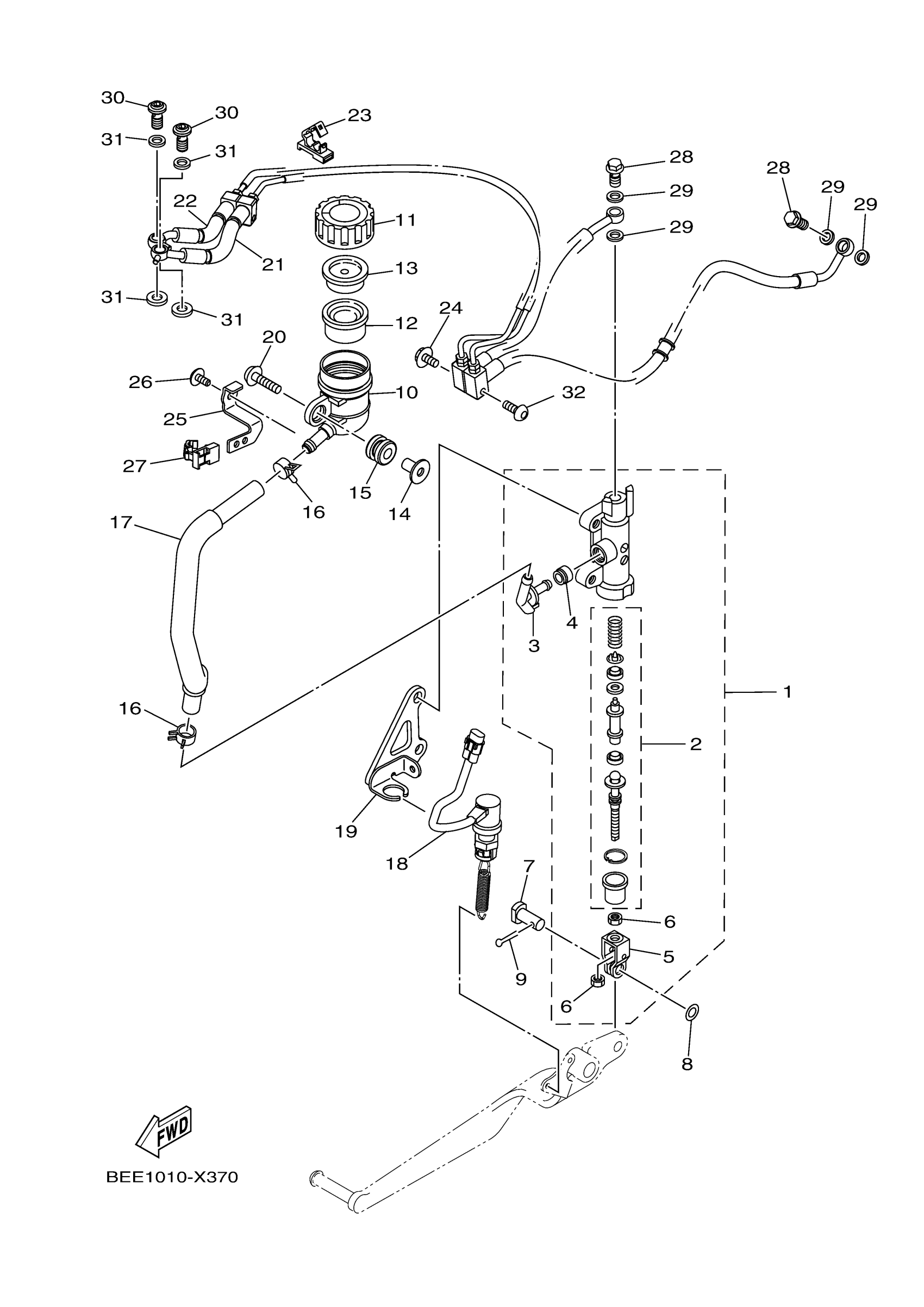

Yamaha XSR700SCB (XSR700 CA) BMCM 2025 REAR MASTER CYLINDER Diagram

#

Description
Price

1

RR. MASTER CYLINDE

4P5-2583V-01-00

$147.99

2

CYLINDER KIT, MASTER

5VX-W0042-51-00

$85.99

3

JOINT

2D1-2582A-01-00

$5.49

4

O-RING

4BP-2585F-01-00

Unavailable

5

JOINT

4BP-27222-02-00

$29.99

6

NUT

90170-08010-00

$8.49

7

PIN, CLEVIS

90240-08005-00

$8.49

8

WASHER, PLATE

90201-08070-00

$7.49

9

PIN, COTTER (648)

91490-20015-00

$2.20

10

TANK, RESERVOIR

14B-25894-00-00

$63.99

11

CAP, RESERVOIR

2C0-25852-00-00

$7.99

12

DIAPHRAGM, RESERVOIR

2VN-25854-00-00

$24.99

13

BUSH,DIAPHRAGM

2VN-25855-00-00

$10.99

14

COLLAR

90387-05028-00

$5.60

15

GROMMET

2C0-26326-00-00

$6.99

16

CLIP (7K7)

90467-11044-00

Unavailable

17

HOSE RESERVE

B34-F5895-00-00

Unavailable

18

STOP SWITCH ASSY

B2G-82530-01-00

Unavailable

19

STAY, STOP SWITCH

B4C-2144G-00-00

Unavailable

20

BOLT

90111-05014-00

Unavailable

21

HOSE, BRAKE

1XB-2584D-02-00

Unavailable

22

BRAKE HOSE ASSY 5

1XB-2584E-02-00

Unavailable

23

CLAMP

90464-07014-00

Unavailable

24

BOLT, FLANGE

90105-06148-00

Unavailable

25

HOLDER, BRAKE HOSE

B34-F5886-00-00

Unavailable

26

BOLT

90111-05002-00

Unavailable

27

CLAMP

90464-07014-00

Unavailable

28

BOLT, UNION

90401-10020-00

Unavailable

29

GASKET

90430-10005-00

Unavailable

30

BOLT, UNION

90401-10172-00

Unavailable

31

GASKET

90430-10005-00

Unavailable

32

BOLT, BUTTON HEAD

92012-06010-00

Unavailable
