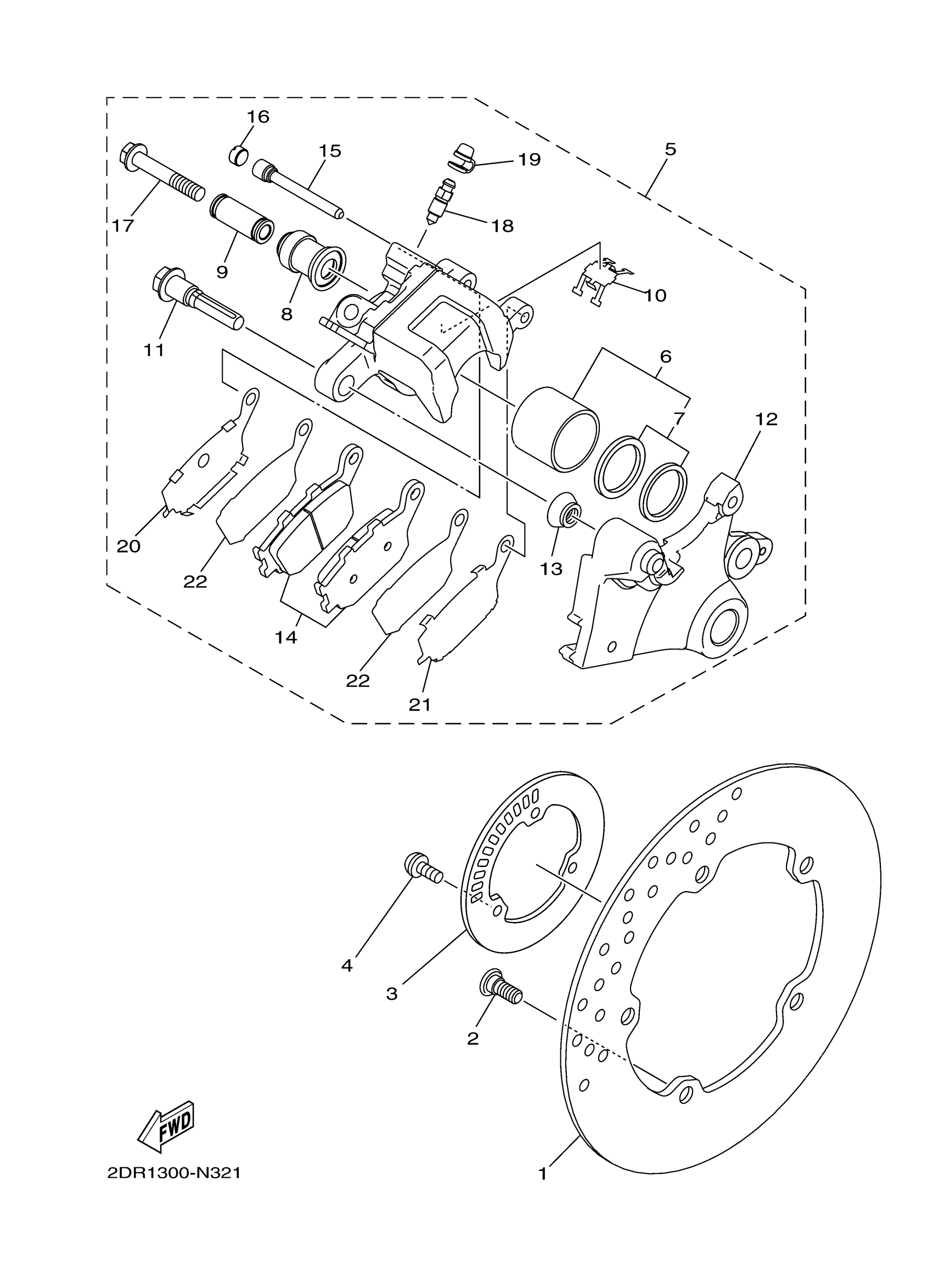

Yamaha XSR700SCB (XSR700 CA) BMCM 2025 REAR BRAKE CALIPER Diagram

#

Description
Price

1

DISK, REAR BRAKE 2

1RC-2582W-00-00

$109.99

2

BOLT

90109-08046-00

$5.60

3

ROTOR, SENSOR

2DR-2517G-00-00

$100.99

4

SCREW

90149-05030-00

$8.49

5

CALIPER ASSY, REAR

2DR-2580W-00-00

$320.99

6

PISTON ASSY, CALIPER

5SL-25802-00-00

$72.99

7

CALIPER SEAL KIT

5SL-25803-00-00

$19.99

8

BOOT, CALIPER

5SL-25917-00-00

$15.49

9

SLEEVE, CALIPER

5SL-25838-00-00

$13.49

10

SUPPORT, PAD

5SL-25919-00-00

$6.99

11

PIN, SLIDE

5SL-25914-00-00

$18.49

12

BRACKET, SUPPORT

2DR-25921-50-00

$76.99

13

BOOT, CALIPER

3JD-25917-00-00

$8.99

14

BRAKE PAD KIT 2

5VX-25806-00-00

$53.99

15

PIN, PAD

8CR-25924-00-00

$14.49

16

PLUG

5DH-25916-00-00

Unavailable

17

BOLT

1RC-25926-00-00

Unavailable

18

SCREW, BLEED

8CR-25824-00-00

Unavailable

19

BLEED SCREW KIT

36Y-W0048-00-00

Unavailable

20

SHIM, CALIPER

5SL-25827-00-00

Unavailable

21

SHIM, CALIPER

5SL-25827-10-00

Unavailable

22

SHIM, CALIPER

5SL-25828-01-00

Unavailable
