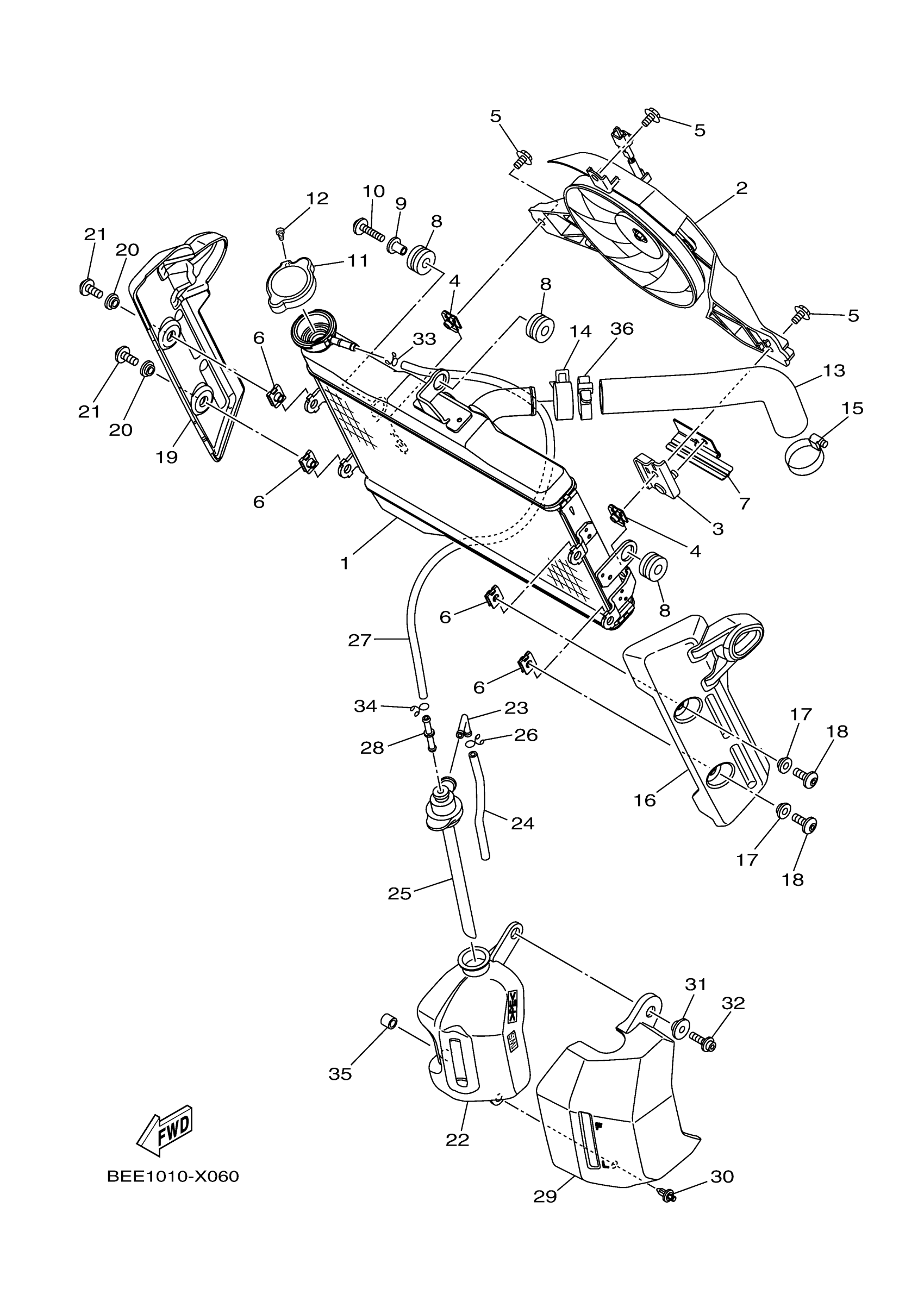

Yamaha XSR700SCB (XSR700 CA) BMCM 2025 RADIATOR & HOSE Diagram

#

Description
Price

1

RADIATOR COMP

B4T-12461-00-00

$253.99

2

BLOWER ASSY

BW3-12405-00-00

Unavailable

3

BRACKET, HORN

BW3-21343-00-00

Unavailable

4

NUT 1

1WS-12671-00-00

$3.22

5

BOLT, BLOWER HOLDING

2S3-12675-00-00

$6.99

6

NUT 1

1WS-12671-00-00

$3.22

7

STAY, HORN

BAT-83378-00-00

$5.60

8

GROMMET (29L)

90480-15363-00

$8.49

9

COLLAR

90387-06311-00

Unavailable

10

BOLT,HEX. SOCKET BUTTON

90111-06156-00

$1.16

11

CAP, RADIATOR

B67-12462-11-00

Unavailable

12

BOLT, SOCKET

91317-03006-00

$9.49

13

HOSE 3

1WS-12578-00-00

$35.99

14

CLIP

90467-290A0-00

Unavailable

15

HOSE CLAMP ASSY

90450-35001-00

$5.60

16

COVER 3

BEE-E246F-00-00

Unavailable

17

COLLAR

90387-06130-00

Unavailable

18

BOLT,HEX. SOCKET BUTTON

90111-06151-00

Unavailable

19

COVER 4

BEE-E246G-00-00

Unavailable

20

COLLAR

90387-06130-00

Unavailable

21

BOLT,HEX. SOCKET BUTTON

90111-06151-00

Unavailable

22

TANK, RECOVERY

1WS-21871-01-00

Unavailable

23

ELBOW

26H-21828-00-00

Unavailable

24

HOSE

90445-08035-00

Unavailable

25

CAP

3P6-21875-00-00

Unavailable

26

CLIP (16G)

90467-08021-00

Unavailable

27

PIPE 1

1WS-21816-00-00

Unavailable

28

JOINT

4XY-14568-00-00

Unavailable

29

COVER

1WS-2172W-00-00

Unavailable

30

RIVET

90269-06008-00

Unavailable

31

COLLAR (838-84757-00)

90387-06024-00

Unavailable

32

BOLT, HEXAGON SOCKET HEAD

90110-06163-00

Unavailable

33

CLIP (16G)

90467-08021-00

Unavailable

34

CLIP 101235600

90467-08003-00

Unavailable

35

HOSE

90445-10064-00

Unavailable

36

CLAMP(6U0)

90464-07M40-00

Unavailable
