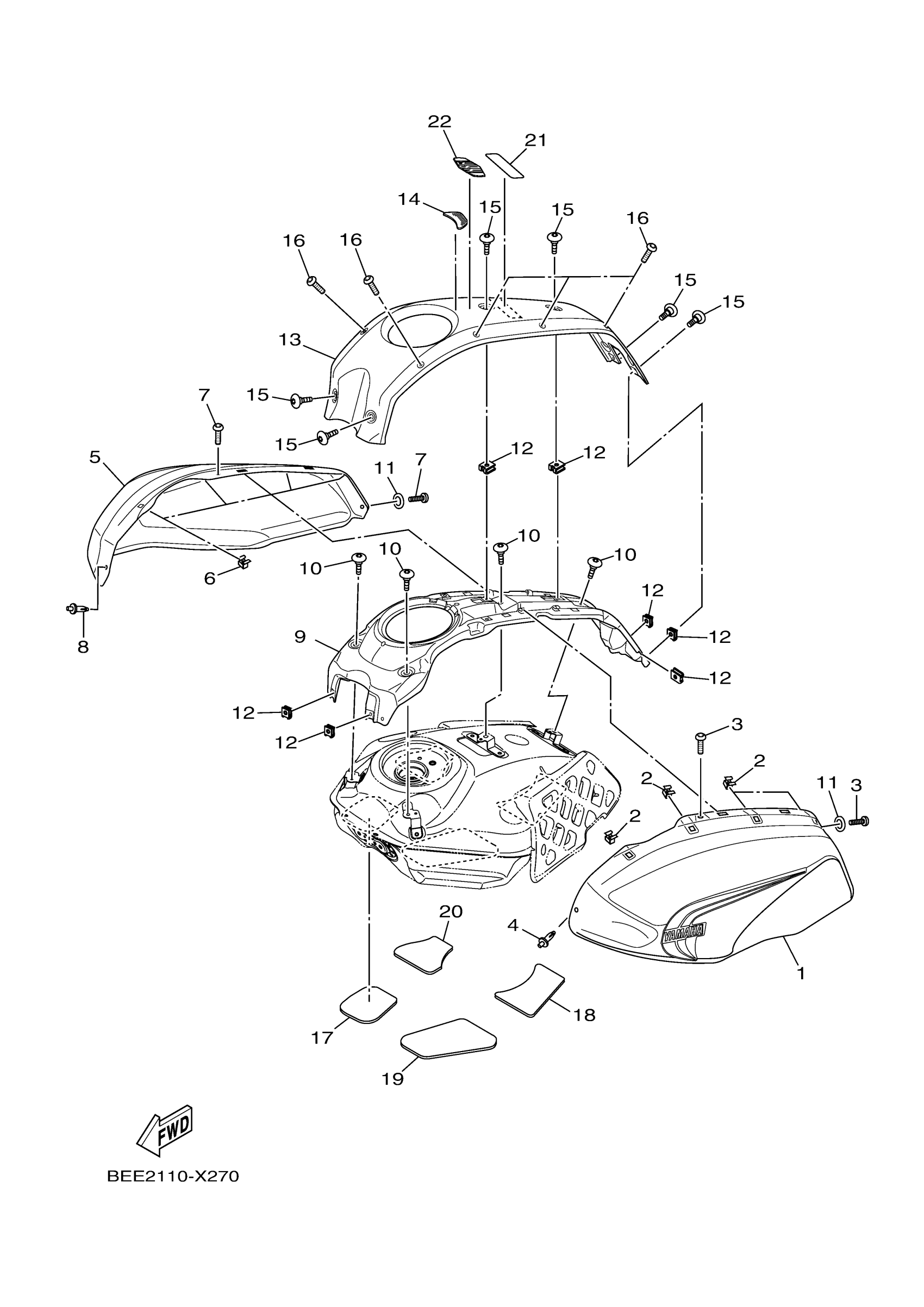

Yamaha XSR700SCB (XSR700 CA) BMCM 2025 FUEL TANK 2 Diagram

#

Description
Price

1

COVER, TANK SIDE 1

B2G-Y24HA-10-02

Unavailable

2

NUT SPRING

90183-05X08-00

$30.99

3

BOLT(3JP)

90111-05012-00

$8.49

4

RIVET

90269-06008-00

$9.49

5

COVER, TANK SIDE 2 ASSY

B2G-Y24JA-10-02

Unavailable

6

NUT SPRING

90183-05X08-00

$30.99

7

BOLT(3JP)

90111-05012-00

$8.49

8

RIVET

90269-06008-00

$9.49

9

COVER TANK

B34-F41B1-00-00

Unavailable

10

BOLT

90111-05011-00

$5.60

11

WASHER, PLATE (8J0)

90201-05725-00

Unavailable

12

NUT SPRING

90183-05X04-00

Unavailable

13

OUTER PANEL 1

B2G-2411A-00-P4

$382.99

14

PROTECTOR, FUEL TANK

B34-F4141-00-00

$53.99

15

BOLT

90111-05011-00

$5.60

16

BOLT(3JP)

90111-05012-00

$8.49

17

PROTECTOR 1

B2G-2315H-00-00

Unavailable

18

SEAT, TANK PROTECTOR

B2G-24193-00-00

Unavailable

19

PROTECTOR 2

B2G-2315J-00-00

Unavailable

20

PROTECTOR

B2G-24595-00-00

Unavailable

21

LABEL, CAUTION

1TP-2118K-A2-00

Unavailable

22

EMBLEM

B90-2416B-02-00

Unavailable
