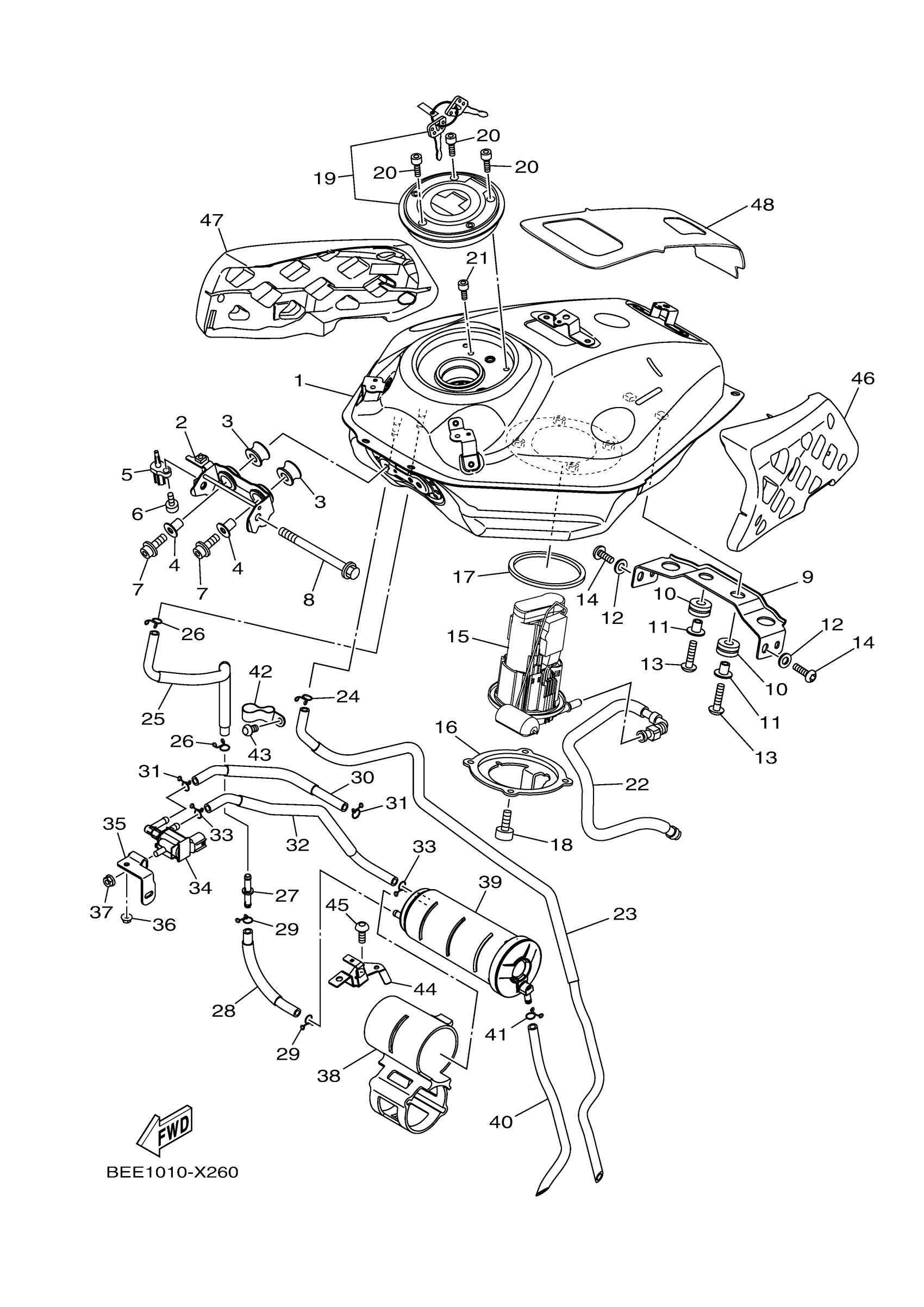

Yamaha XSR700SCB (XSR700 CA) BMCM 2025 FUEL TANK Diagram
#
2
BRACKET, TANK FITT
1WS-2412Y-00-00
Unavailable
9
BRACKET, TANK FITTING
B2G-2413Y-00-00
Unavailable
10
GROMMET
90480-16003-00
Unavailable
11
COLLAR
90387-06287-00
Unavailable
16
BRACKET, FUEL PUMP
1WS-24491-01-00
Unavailable
17
O-RING
1RC-24486-00-00
Unavailable
18
BOLT
91312-05010-00
Unavailable
19
CAP ASSY
39P-24602-00-00
Unavailable
20
BOLT, HEXAGON SOCKET HEAD(1FM)
90110-05112-00
Unavailable
21
BOLT, SOCKET
91317-05010-00
Unavailable
22
PIPE, FUEL 1
1WS-13971-01-00
Unavailable
23
PIPE, OVERFLOW
2RC-24318-00-00
Unavailable
24
CLIP
90467-090A2-00
Unavailable
25
PIPE 10
B2G-24321-00-00
Unavailable
26
CLIP
90467-090A2-00
Unavailable
27
JOINT
4XY-14568-00-00
Unavailable
28
PIPE 11
B2G-24322-00-00
Unavailable
29
CLIP
90467-090A2-00
Unavailable
30
PIPE 2
BAT-24312-10-00
Unavailable
31
CLIP
90467-090A2-00
Unavailable
32
PIPE 3
BAT-24313-10-00
Unavailable
33
CLIP
90467-090A2-00
Unavailable
34
SOLENOID VALVE ASSY
BG4-86120-00-00
Unavailable
35
BRACKET, CANISTOR
BAT-2419F-00-00
Unavailable
36
NUT, FLANGE(3GM)
95707-05500-00
Unavailable
37
NUT, FLANGE(4MV)
95707-06500-00
Unavailable
38
DAMPER, LOCATING 2
2RC-24182-00-00
Unavailable
39
CANISTER ASSY
BW3-F4170-00-00
Unavailable
40
HOSE
90445-10069-00
Unavailable
41
CLIP
90467-090A2-00
Unavailable
42
CLAMP 1
1WS-24135-00-00
Unavailable
43
BOLT, BUTTON HEAD
92017-06010-00
Unavailable
44
BRACKET, CANISTOR
2RC-2419F-00-00
Unavailable
45
BOLT,HEX. SOCKET BUTTON
90111-06119-00
Unavailable
46
DAMPER, PLATE 1
B34-F414H-03-00
Unavailable
47
DAMPER, PLATE 2
B34-F414J-03-00
Unavailable
48
DAMPER, PLATE 3
BMC-2414K-00-00
Unavailable
