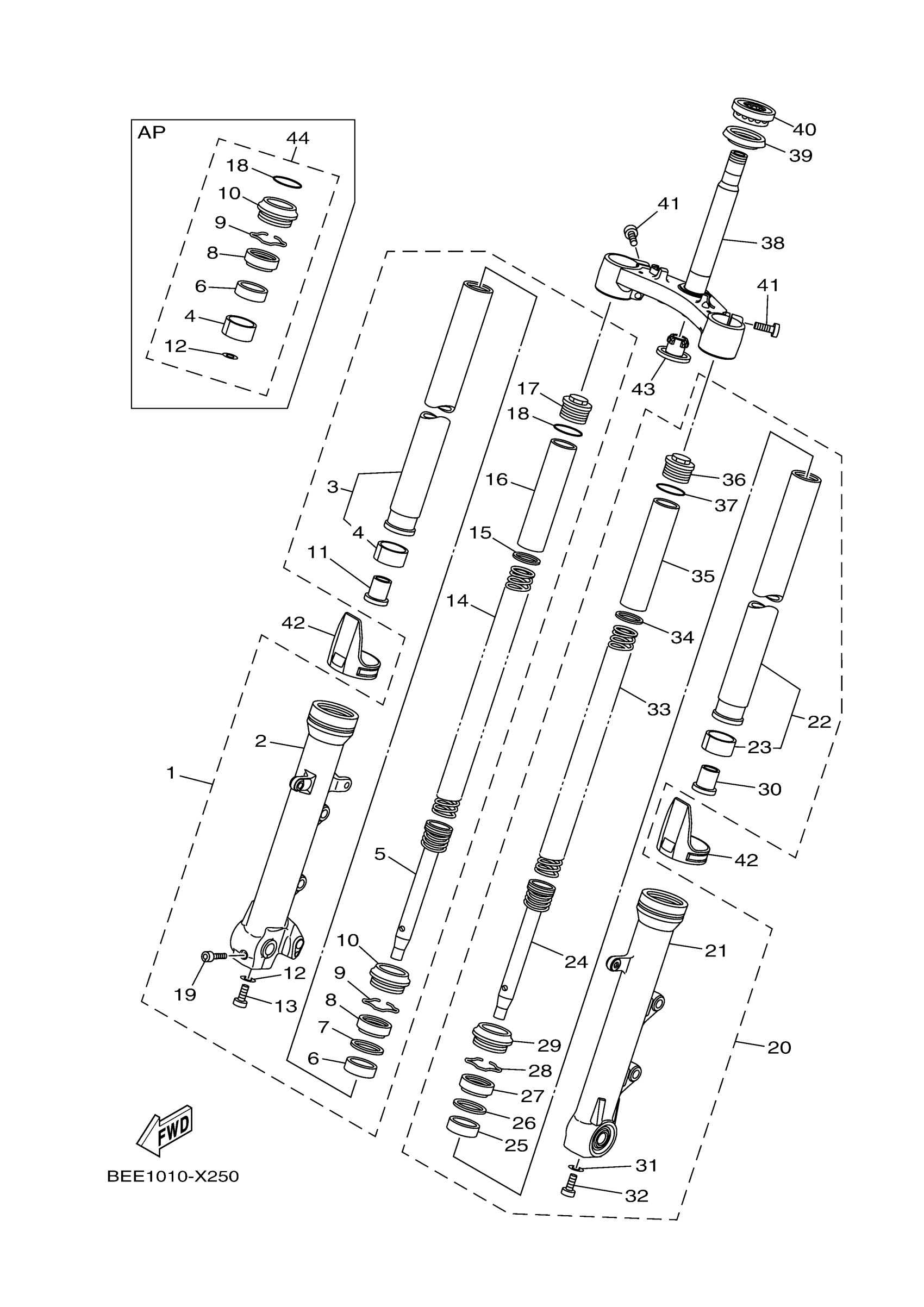

Yamaha XSR700SCB (XSR700 CA) BMCM 2025 FRONT FORK Diagram
#
Description
Price
1
FRONT FORK ASSY (R
BJV-23103-00-00
Unavailable
3
INNER TUBE COMP.1
1WS-23110-00-00
Unavailable
5
CYLINDER COMP., FR
1WS-23170-00-00
Unavailable
11
SPINDLE, TAPER
4YR-23173-00-00
Unavailable
16
SPACER
3FW-23118-00-00
Unavailable
17
BOLT, CAP
1D0-23111-00-00
Unavailable
18
O-RING
43F-23188-11-00
Unavailable
19
BOLT,SOCKET
91314-08040-00
Unavailable
20
FRONT FORK ASSY (L
BJV-23102-00-00
Unavailable
21
TUBE, OUTER (L.H)
BAT-23126-00-00
Unavailable
22
INNER TUBE COMP.1
1WS-23110-00-00
Unavailable
24
CYLINDER COMP., FR
1WS-23170-00-00
Unavailable
30
SPINDLE, TAPER
4YR-23173-00-00
Unavailable
35
SPACER
3FW-23118-00-00
Unavailable
36
BOLT, CAP
1D0-23111-00-00
Unavailable
37
O-RING
43F-23188-11-00
Unavailable
38
UNDER BRACKET COMP.
B34-23340-00-00
Unavailable
39
SEAL, STEERING
3FV-23462-00-00
Unavailable
40
BEARING(3FV)
93399-99932-00
Unavailable
41
BOLT,SOCKET
91314-08030-00
Unavailable
42
COVER
1WS-2331G-00-00
Unavailable
43
COVER, LOWER 1
4KM-23123-01-00
Unavailable
44
FORK SEAL KIT (ONE FORK)
B2G-W003B-00-00
Unavailable
