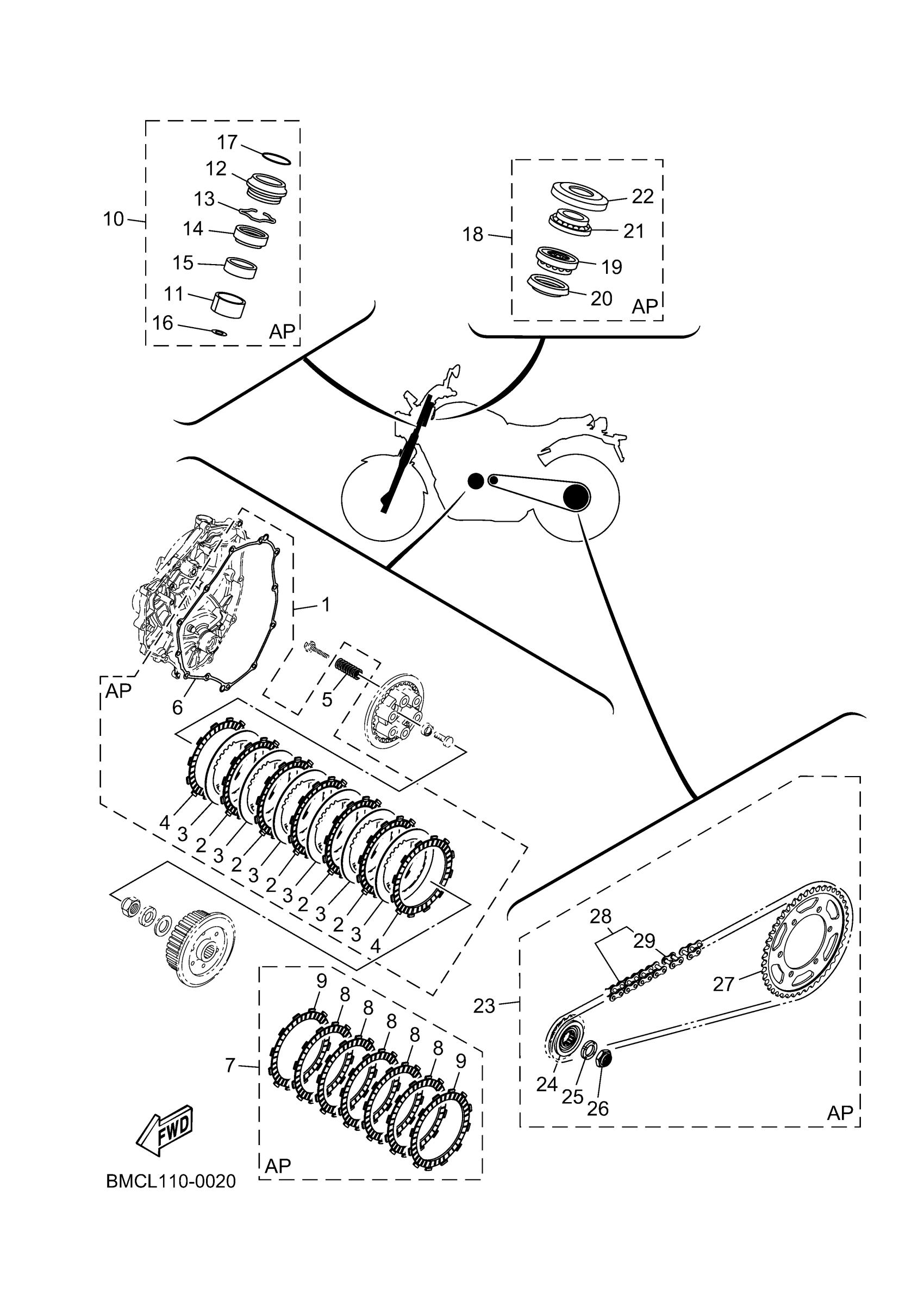

Yamaha XSR700SCB (XSR700 CA) BMCM 2025 2 MAINTENANCE PARTS KIT Diagram

#

Description
Price

1

CLUTCH PLATE KIT

BTK-W001G-00-00

$124.99

2

PLATE, FRICTION

5VY-16321-00-00

$31.99

3

PLATE, CLUTCH 2

5VY-16325-20-00

$11.99

4

PLATE, FRICTION

5TG-16321-00-00

$15.49

5

SPRING, COMPRESSION(3GM)

90501-230E4-00

$9.49

6

GASKET, CRANKCASE

1WS-15461-00-00

$35.99

7

FRICTION PLATE KIT

B4C-W001M-00-00

$96.99

8

PLATE, FRICTION

5VY-16321-00-00

$31.99

9

PLATE, FRICTION

5TG-16321-00-00

$15.49

10

FORK SEAL KIT (ONE FORK)

B2G-W003B-00-00

Unavailable

11

PISTON, FRONT FORK

5BN-23171-00-00

$22.99

12

SEAL, DUST

4EB-23144-00-00

$22.99

13

CLIP, OIL SEAL

26H-23156-00-00

$7.99

14

OIL SEAL

4EB-23145-01-00

$28.99

15

METAL, SLIDE 1

4FM-23125-40-00

$33.99

16

GASKET

509-23158-L0-00

Unavailable

17

O-RING

43F-23188-11-00

Unavailable

18

STEERING BEARING KIT

BVA-W000B-00-00

Unavailable

19

BEARING(3FV)

93399-99932-00

Unavailable

20

SEAL, STEERING

3FV-23462-00-00

Unavailable

21

BEARING(3FV)

93399-99931-00

Unavailable

22

COVER, BALL RACE 2

1W1-23416-00-00

Unavailable

23

CHAIN & SPROCKET K

BAT-W001A-01-00

Unavailable

24

SPROCKET, DRIVE (1

1WS-17460-00-00

Unavailable

25

WASHER, CONICAL SPRING

90208-22002-00

Unavailable

26

NUT

90179-22018-00

Unavailable

27

SPROCKET, DRIVEN (

1WS-25443-00-00

Unavailable

28

CHAIN

94A40-21108-00

Unavailable

29

JOINT, CHAIN

94682-5502R-00

Unavailable
