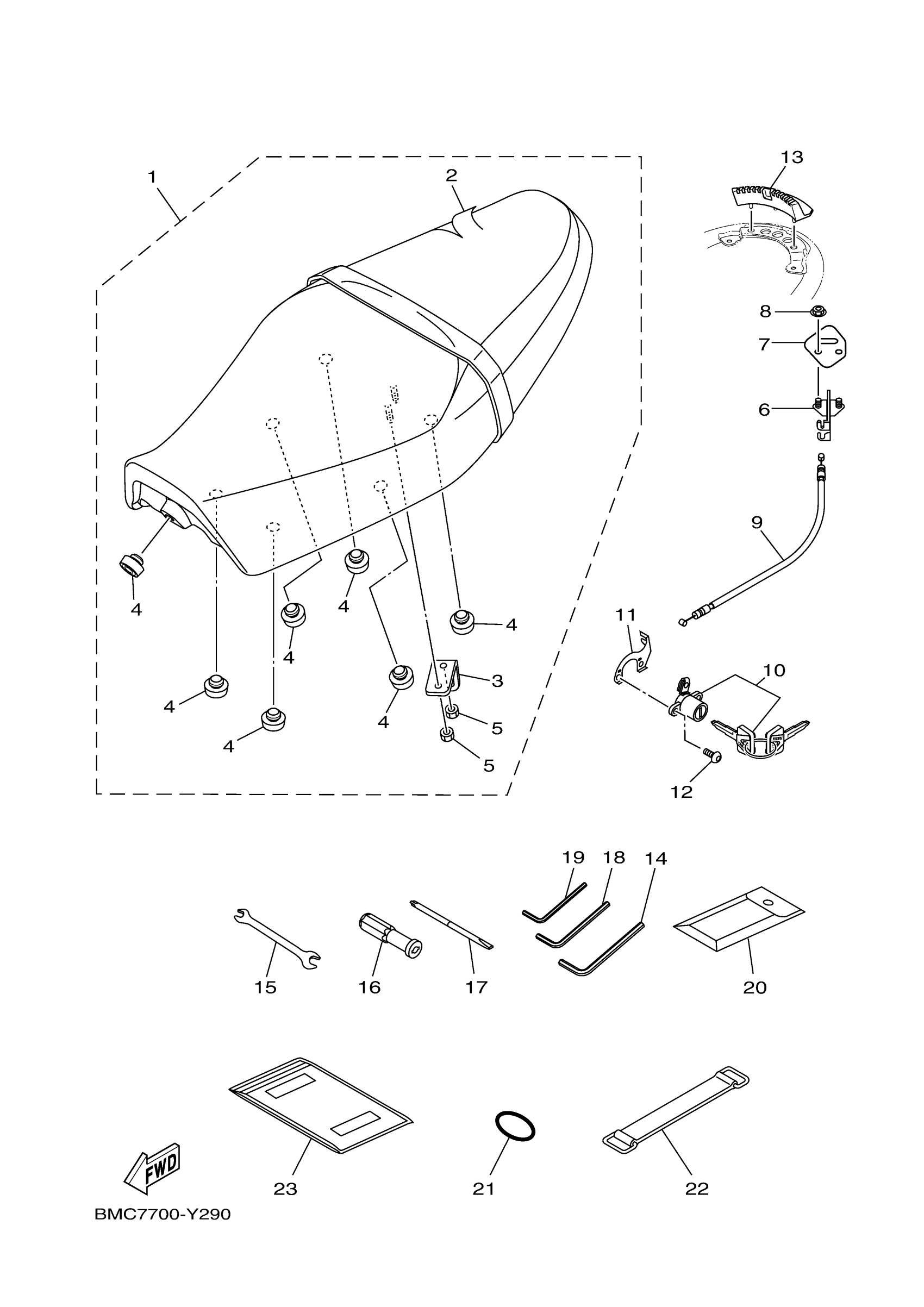

Yamaha XSR700RCB (XSR700 CA) BMCD 2024 SEAT Diagram

#

Description
Price

1

DOUBLE SEAT ASSY

B34-F4730-12-00

$238.99

2

COVER SEAT

B34-F4731-10-00

$177.99

3

BRACKET SEAT

B34-F4738-00-00

$38.99

4

PAD, SEAT

5YK-F4741-00-00

$6.99

5

NUT, SELF-LOCKING

90185-06X04-00

Unavailable

6

SEAT LOCK ASSY

5BP-F4780-00-00

Unavailable

7

PROTECTOR, FRAME

BMC-21978-00-00

Unavailable

8

NUT

4XV-8182A-00-00

$7.99

9

CABLE, SEAT LOCK

BEE-2478E-00-00

Unavailable

10

SEAT LOCK ASSY

3CK-W2470-00-00

$84.99

11

STAY, LOCK

23P-2117K-01-00

$6.99

12

SCREW

90149-06030-00

$5.60

13

DAMPER, LOCATING 2

B2G-21779-01-00

$35.99

14

WRENCH, HEXAGON 8

14B-28164-00-00

$4.42

15

SPANNER 8-10

B2G-28122-00-00

Unavailable

16

GRIP, DRIVER

B2G-28151-00-00

Unavailable

17

DRIVER

137-28152-00-00

Unavailable

18

WRENCH, HEXAGON 8

23P-28164-00-00

Unavailable

19

WRENCH HEXAGONAL 3

B34-F816G-00-00

Unavailable

20

TOOL KIT

BAT-28100-00-00

Unavailable

21

O-RING(2HF)

93210-40745-00

Unavailable

22

BAND,BATTERY

7H3-82131-00-00

Unavailable

23

POUCH

4KG-28186-11-00

Unavailable
