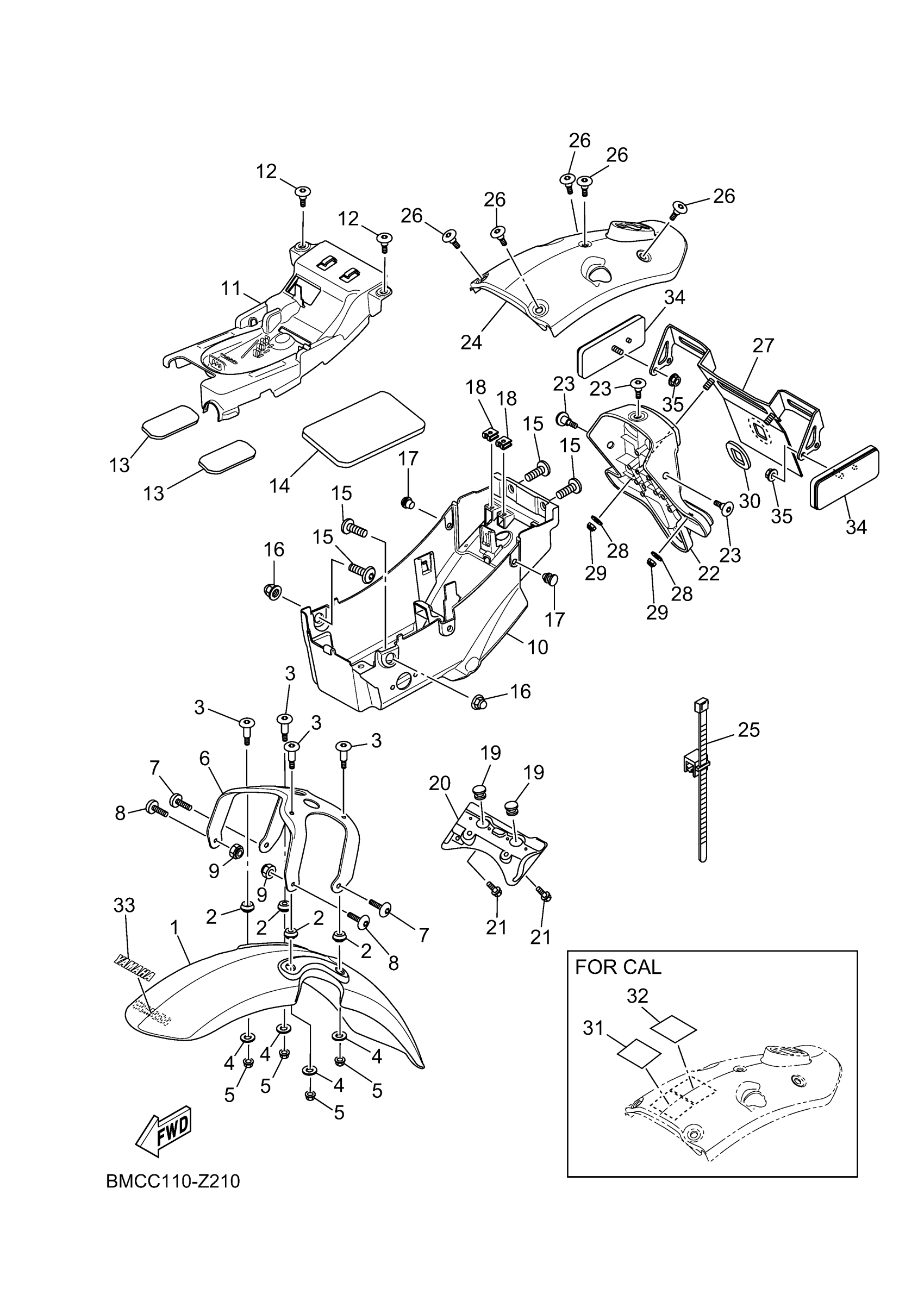

Yamaha XSR700RCB (XSR700 CA) BMCD 2024 FENDER Diagram

#

Description
Price

1

FENDER, FRONT

BMC-21511-00-P0

Unavailable

2

COLLAR 1

B2G-21544-00-00

$5.60

3

BOLT,HEX. SOCKET BUTTON

90111-06123-00

$3.66

4

WASHER PLATE 137241870000

90201-06072-00

$9.49

5

NUT, U FLANGE

95604-06200-00

$8.49

6

BRACKET, FENDER

BMC-21512-20-00

$177.99

7

BOLT

90111-06038-00

$4.29

8

SCREW(4DN)

90149-06302-00

Unavailable

9

NUT, SELF-LOCKING

90185-06M07-00

Unavailable

10

BOX, BATTERY 1

BMC-8212B-00-00

Unavailable

11

COVER, BATTERY

BMC-82129-00-00

Unavailable

12

BOLT

90111-05011-00

$5.60

13

DAMPER

B2G-21649-00-00

Unavailable

14

DAMPER 2

1WS-21639-00-00

$6.99

15

BOLT

90109-06325-00

Unavailable

16

NUT, CROWN

90176-06008-00

Unavailable

17

PLUG(1NL)

90338-07180-00

Unavailable

18

NUT, SPRING(47R)

90183-04039-00

Unavailable

19

GROMMET 285216390000

90480-14100-00

Unavailable

20

GUARD, FLAP

1WS-21642-01-00

Unavailable

21

RIVET

90269-06002-00

Unavailable

22

BRACKET, LICENSE

BMC-21685-00-00

Unavailable

23

BOLT

90111-05011-00

$5.60

24

COVER, REAR FENDER

BMC-21651-00-P0

Unavailable

25

CLAMP

90464-45005-00

Unavailable

26

BOLT

90111-05011-00

$5.60

27

BRACKET, LICENSE

B2G-84751-00-00

Unavailable

28

WASHER, PLAIN (646)

92990-06600-00

Unavailable

29

NUT, SELF-LOCKING

95617-06100-00

Unavailable

30

DAMPER 2

B2G-21639-00-00

Unavailable

33

EMBLEM, YAMAHA

99241-00080-00

Unavailable

34

REAR REFLECTOR ASSY

3Y6-85130-02-00

Unavailable

35

NUT, FLANGE

95702-05500-00

Unavailable
