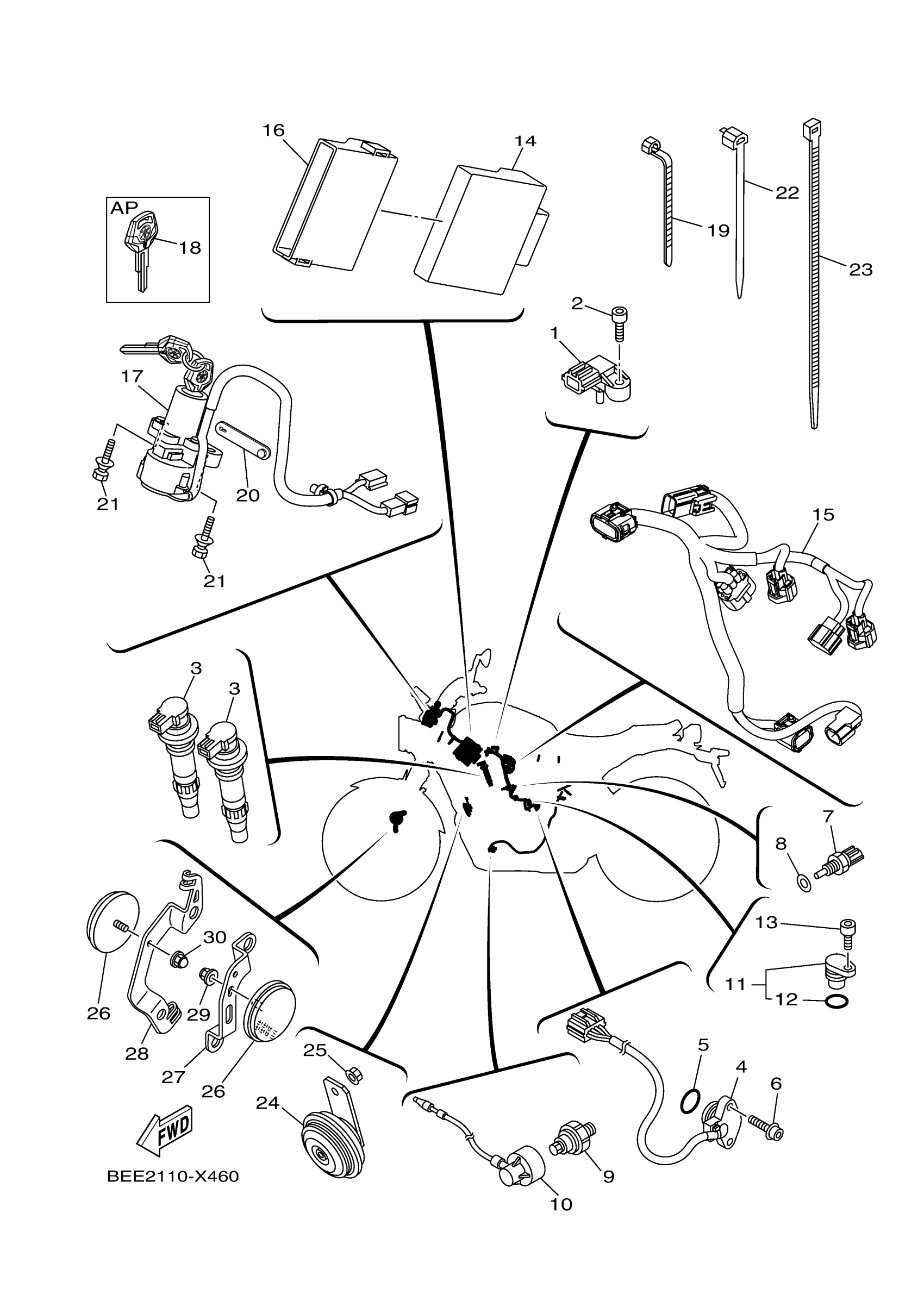

Yamaha XSR700NB (XSR700) BEE2 2022 ELECTRICAL 2 Diagram

#

Description
Price

1

SENSOR, PRESSURE

1WS-82380-00-00

$193.99

2

BOLT, SOCKET

91317-05020-00

$3.28

3

IGNITION COIL ASSY

1WS-82310-00-00

$110.99

4

NEUTRAL SWITCH ASSY

1WS-82540-01-00

$71.99

5

O-RING

93210-21001-00

$5.60

6

BOLT, HEXAGON SOCKET HEAD

90110-05038-00

$7.49

7

THERMO UNIT

52B-H3591-00-00

$34.99

8

GASKET

90430-10004-00

$7.49

9

OIL PRESSURE SWITCH ASSY

1WS-82504-01-00

$70.99

10

LEAD WIRE ASSY

1WS-81315-00-00

Unavailable

11

PLUG, BLIND

3P6-15399-00-00

Unavailable

12

O-RING (22U)

93210-15566-00

$7.49

13

BOLT(3MA)

91312-06016-00

$5.60

14

ENGINE CONTROL UNI

BAT-8591A-20-00

Unavailable

15

WIRE, SUB LEAD

B2G-82309-00-00

Unavailable

16

BAND

B34-H5546-00-00

Unavailable

17

MAIN SWITCH STEERING LOCK

BEE-82501-11-00

Unavailable

18

KEY, MAIN SWITCH

BAU-82511-09-00

Unavailable

19

CLAMP

90464-25004-00

Unavailable

20

CLAMP

90464-26802-00

Unavailable

21

BOLT

90109-08196-00

Unavailable

22

BAND, SWITCH CORD

437-83936-11-00

Unavailable

23

CLAMP

90464-65001-00

Unavailable

24

HORN

1WS-83371-00-00

Unavailable

25

NUT, FLANGE(4MV)

95707-06500-00

Unavailable

26

REFLECTOR, FRONT 1

4AG-85111-00-00

Unavailable

27

BRACKET, REFLECTOR

1WS-85112-00-00

Unavailable

28

BRACKET, REFLECTOR

BAT-85122-00-00

Unavailable

29

NUT, FLANGE

95702-06500-00

Unavailable

30

NUT, CROWN

90176-06016-00

Unavailable
