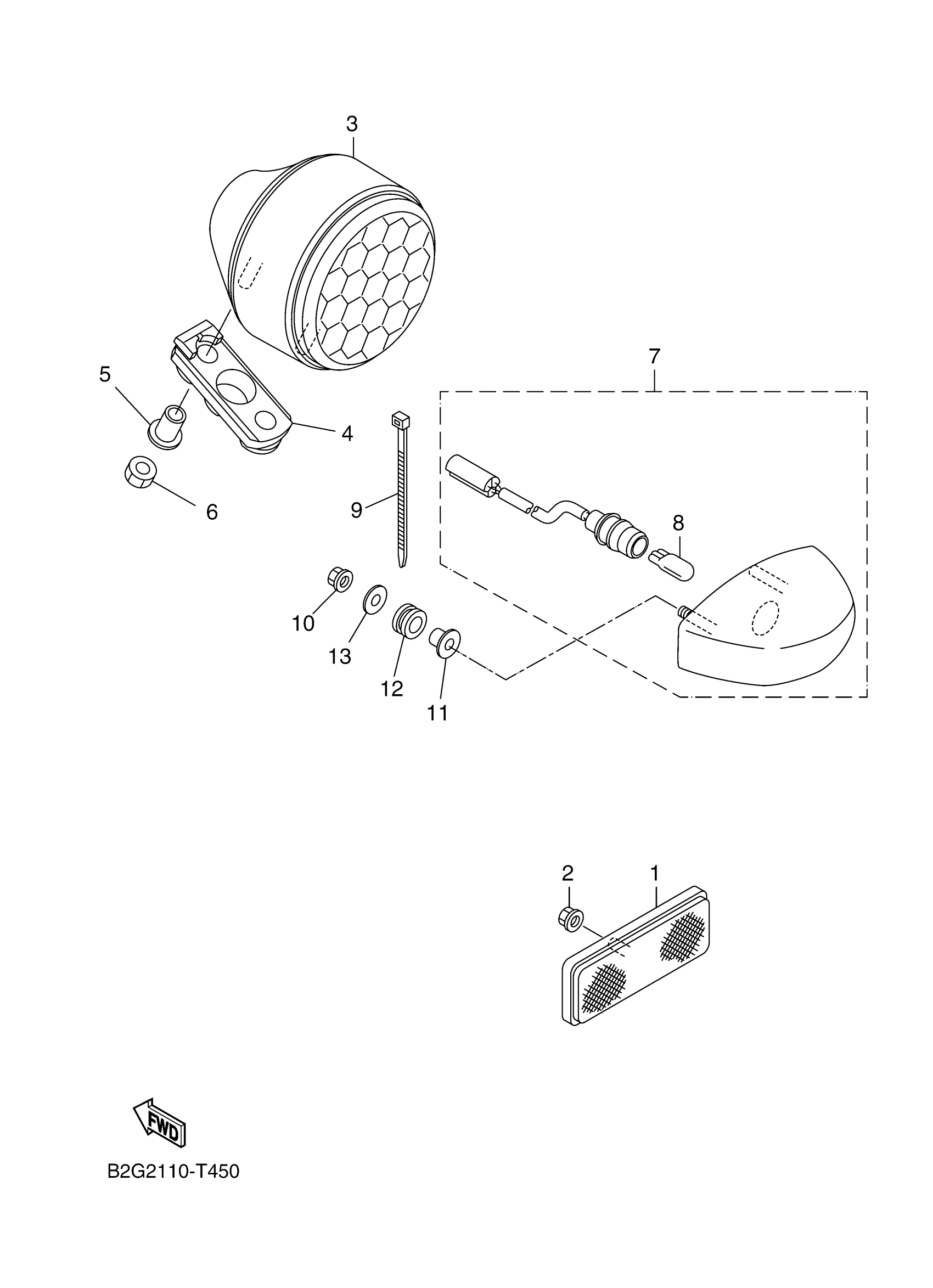

Yamaha XSR700MW (XSR700) B2GK 2021 TAILLIGHT Diagram

#

Description
Price

1

REAR REFLECTOR ASSY

3Y6-85130-02-00

Unavailable

2

NUT, S/L FLANGE

95607-05200-00

$9.49

3

TAILLIGHT ASSY

B34-H4700-00-00

Unavailable

4

DAMPER, TAIL 1

B34-H4736-00-00

$35.99

5

COLLAR

90387-06334-00

Unavailable

6

NUT, HEXAGON

95380-06600-00

Unavailable

7

LICENCE LIGHT ASSY

B34-84740-00-00

$59.99

8

BULB

1TP-84347-00-00

$6.99

9

CLAMP

90464-16061-00

$8.49

10

NUT, S/L FLANGE

95607-05200-00

$9.49

11

COLLAR

90387-05042-00

$5.60

12

GROMMET

90480-12023-00

$8.49

13

WASHER PLATE (664)

90201-05556-00

Unavailable
