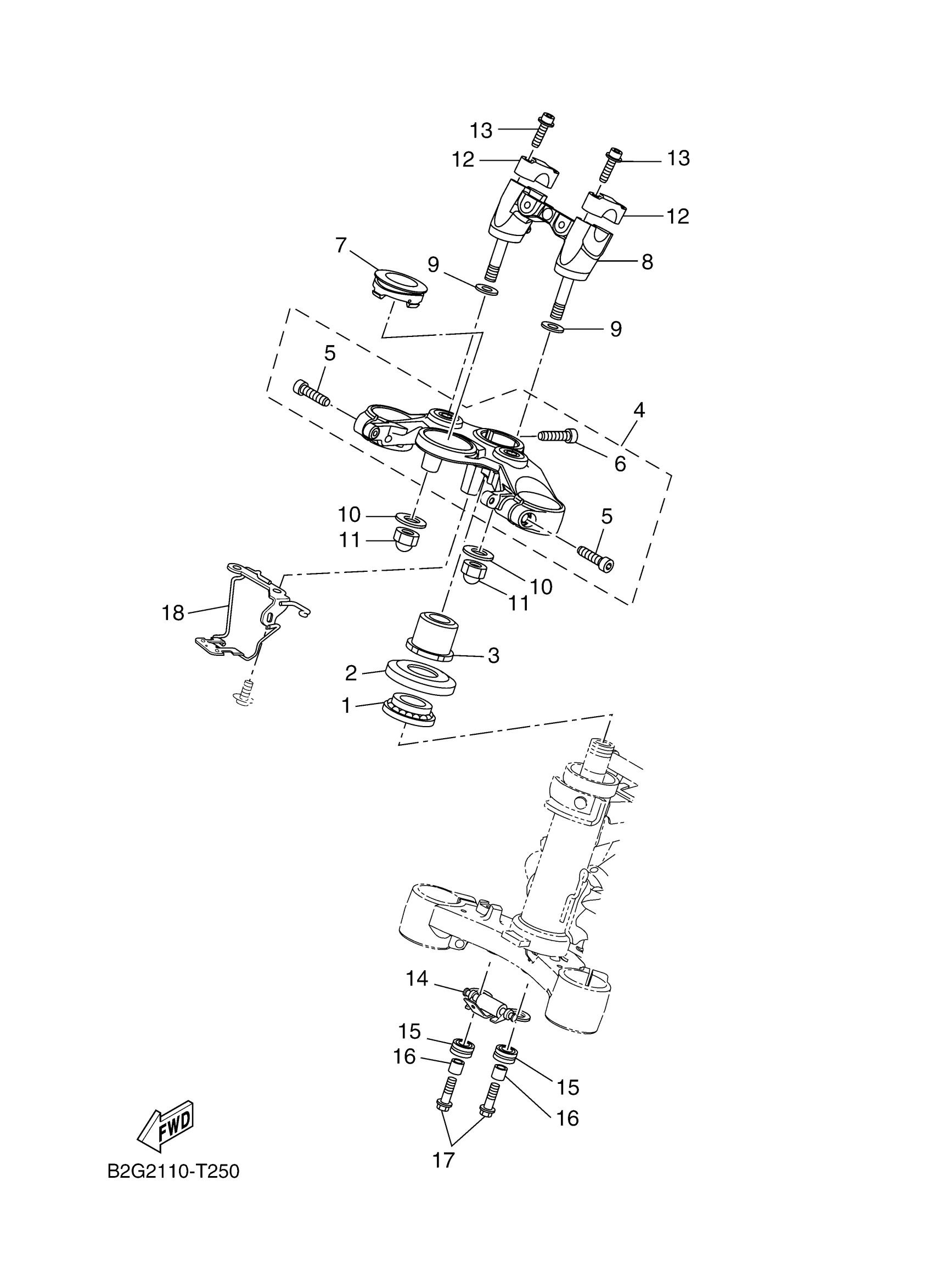

Yamaha XSR700MW (XSR700) B2GK 2021 STEERING Diagram

#

Description
Price

1

BEARING(3FV)

93399-99931-00

$57.99

2

COVER, BALL RACE 2

1W1-23416-00-00

Unavailable

3

NUT

1WS-23357-00-00

Unavailable

4

HANDLE CROWN COMP.

BC6-23430-00-00

$245.99

5

BOLT,SOCKET

91314-08030-00

$2.34

6

BOLT, SOCKET

91314-10035-00

Unavailable

7

CAP, SWITCH

36P-82552-00-00

$15.49

8

HOLDER, HANDLE LOWER

B34-F3442-10-00

$227.99

9

958-69527-00 WASHER, PLAIN

92990-10200-00

$3.72

10

WASHER, PLATE

90201-10043-00

$2.22

11

NUT, CROWN

90176-10003-00

$9.49

12

HOLDER, HANDLE UPPER

B34-F3441-10-00

Unavailable

13

BOLT, SOCKET

91317-08030-00

$8.49

14

BRACKET 1

B2G-2334G-00-00

Unavailable

15

DAMPER

3C3-83513-00-00

$7.99

16

COLLAR (J10)

90387-06026-00

Unavailable

17

BOLT, FLANGE

95817-06025-00

Unavailable

18

BRACKET 2

B2G-2334H-00-00

Unavailable
